flotation machine for gold copper flotation separator
- 20 Set / Sets per Month
- Qingdao Port
- T/T
- Hot sale best price metal ore crusher,metal ore crusher with CE
- Hot Selling jaw stone crusher jaw grinder and crusher manufacturer
- Hot Selling jaw stone crusher jaw crusher capacity 110-250tons congo
- Hot sale New type sand making plant in india for sale with low price
- High quality crushed stone processing and pulverized mineral processing
- Zenith construction sand making plant,construction sand making plant price
Product Details
Condition: | New | Type: | Flotation Separator | Production Capacity: | 100% |
Place of Origin: | Henan, China | Brand Name: | XG | Model Number: | BF0.37-BF24 |
Voltage: | Customize | Power(W): | 1.5-45KW | Dimension(L*W*H): | Depend on the Model |
Weight: | 470-8970 KG/Cell | Certification: | ISO9001:2008 | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product introduction
Flotation separator is a machine for selectively separating hydrophobic materials from hydrophilic. On the basis of absorbing advanced experience both home and abroad, The mechanism design is optimized by Fote Machinery, for the best performance of flotation separator.
Working principle
The impeller is rotated by V-belt of motor and produces negative pressure by centrifugal function. Enough air is sucked to mix slurry, and slurry mixes drug at the same time. Mineral sticks on bubble completely and floats on the surface of slurry to form mineralized bubble. Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface.
Features and advantages
1. large capacity
2. low energy consumption
3. Every cell owns three functions: air absorption, slurry absorption, and flotation separation, and the cells form a flotation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow.
4. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent.
5. There is self-control device on the surface of mineral slurry, so it is easy to adjust it.

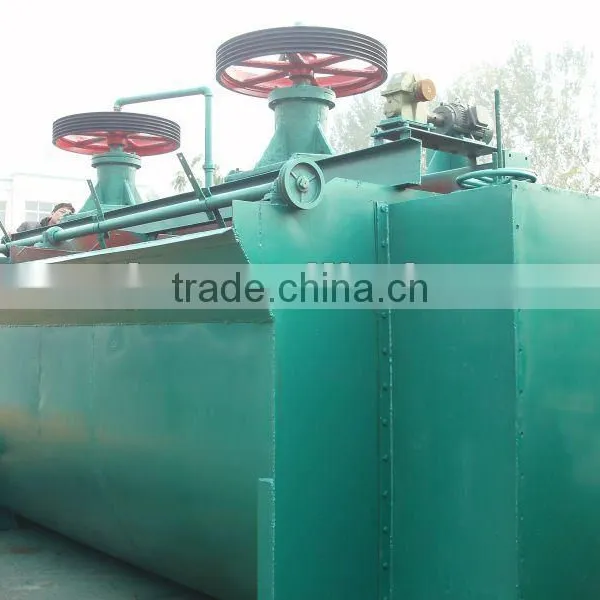

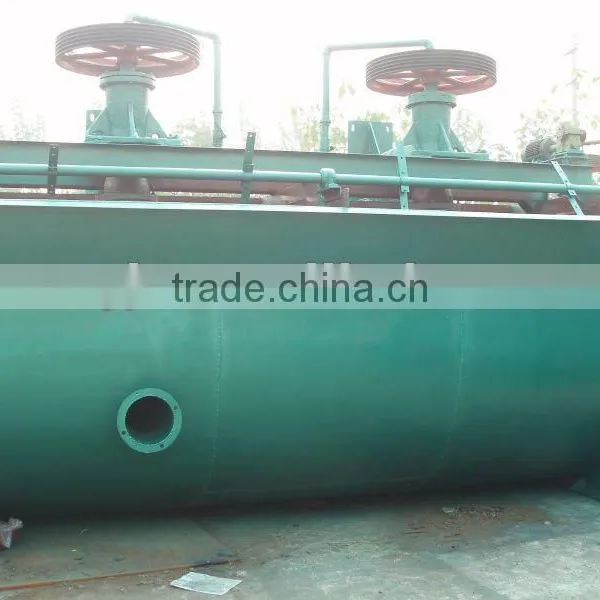

Delivery Images
Technical Parameter
Model | XJK-0.35(3A) | XJK-0.62 (4A) | XJK-1.1 (5A) | XJK-2.8 (6A) | XJK-5.8 (7A) | ||
Trough capacity(m³) | 0.35 | 0.62 | 1.1 | 2.8 | 5.8 | ||
capacity (m³/min) | 0.18~0.4 | 0.3~0.9 | 0.6~1.6 | 1.5~3.5 | 3~7 | ||
speed(r/min) | 470 | 400 | 330 | 280 | 240 | ||
Impeller diameter (mm) | 300 | 350 | 500 | 600 | 750 | ||
Motor |
Model | Rotor | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y200L2-6 |
Scraper | Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | ||
Power(kw) | Rotor | 1.5 | 3 | 5.5 | 11 | 22(30) | |
Scraper | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | ||
Weight (t) | 0.38 | 0.55 | 1 | 1.6 | 2 |
