high quality blender

Specifications

blender
low consumption
good after sales service
high efficiencyand easy operation
Liquid level control automatically

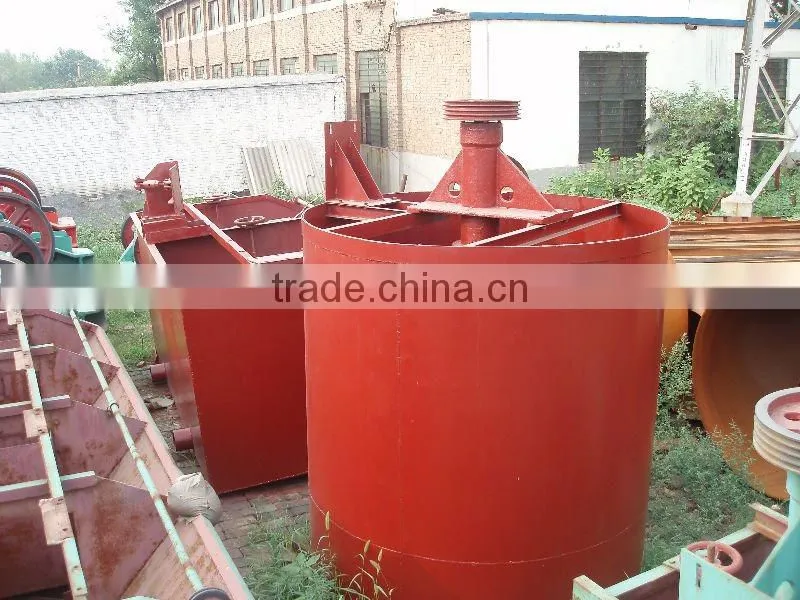

High quality blender



Agitator/Mixer/concrete mixer/ standing mixer/preferential mixer: blender for ore expoiting ,suitable for blending various kinds of metal and nonmetal ores , is mainly used to blend medicament and ore magma before flotation . It is application for the material whose maximum concentration is 30% and whose granularity is less than 1mm . It has a cylindrical radial circulation mechanical blending form with the spiral impeller and flatbottom

Inner size of bucket		Effective volume   m3	Blender		Motor(kw)		Size appearance(mm)		Weight (kg)
Diameter   mm	Height mm		Diameter mm	Speed mm	Model	Power kw	Height mm	Max length mm
500	500	0.078	150	690	Y802-4	0.8	874	720	110
750	750	0.26	240	530	Y90L-4	1.5	1241	939	228
1000	1000	0.58	240	530	Y100L-6	3	1665	1300	685
1500	1500	22	400	320	Y132S-6	5.5	2386	1690	861
2000	2000	5.46	550	230	Y132ML-6	7.5	3046	2381	1240
2500	2500	11.2	625	230	Y160M-6	11	3546	2881	3462
3000	3000	19.1	700	210	Y200L-6	22	4325	3266	4296
