Specifications
sand gravel screw conveyora.high quality,low consumption conveyor
b.stable structure conveyor
c.ISO certification

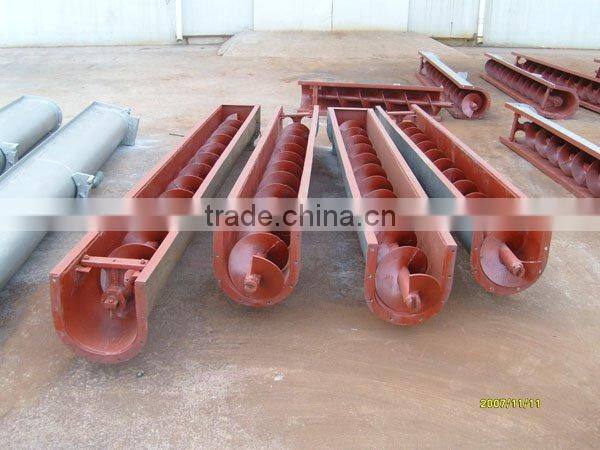

High quality sand gravel screw conveyor for mining
Introduction of sand gravel screw conveyor
Screw conveyor applies to all kinds pf powder ,and small block grannlar materials , such as pulverized coal , gravel ,
sand and lump coal , cement , grains , etc ., The screw conveyor does not apply to transfer easily degenerate ,
viscous large and easy to agglomeration of materials , Screw conveyor working environment temperature should be -20---+50°C range , the transportation of materials temperature below 200°C, the largest dip 20°.
Feature of sand gravel screw conveyor
A) High quality motor and gear box, with heavy duty design, large torqe and low noise.
B) outside tube complete with one inlet, one outlet, end flange, ball joint , inspection window.
C) standard fitting parts, middle bearing, end bearing, splined shaft coupling
Technical parameter of sand gravel screw conveyor
Model |
G×15 |
G×20 |
G×25 |
G×30 |
G×40 |
G×50 |
G×60 |
|
Diameter (mm) |
Screw diameter |
150 |
200 |
250 |
300 |
400 |
500 |
600 |
Transort capability(t/h) |
Manesium power |
4.5 |
8.5 |
16.5 |
23.3 |
54 |
89 |
139 |
|
Cement |
4.1 |
7.9 |
15.6 |
21.2 |
51 |
85 |
134 |
|
Sodium carbonate |
3 |
6.7 |
10.7 |
18 |
35.5 |
70 |
97 |
Dimention of the outline (mm) |
Width |
272 |
342 |
392 |
468 |
572 |
706 |
806 |
|
High |
314 |
384 |
464 |
555 |
685 |
823 |
973 |
Motor power (kw) |
0.75 |
1.1 |
2.2 |
3.0 |
5.5 |
7.5 |
11 |
|
Equipment weight(kg) |
10m |
480 |
520 |
710 |
1050 |
1490 |
2170 |
2760 |
|
±1m |
40 |
47 |
65 |
93 |
128 |
398 |
540 |
