Specifications
pressing machinea.good quality,high friction force
b.easy maintenance and adjustment
c.low cost,steady performance
ISO9001

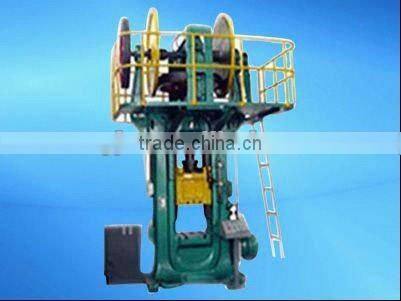

J53-100B double disc friction pressing machine
Double disc friction pressing machine introduction
This Series J53 Friction Pressing machine can be used in die forging, extruding, cutting edge, bending and correcting for nonferrous
and ferrous metal and pressing and forming work of refractory material as well. This press machine with simple structure, large
energy, Iow noise, long life, safe and reliable in operation, convenient service ect. can be widely used in aviation, auto, tractor, tool
manufacturing, texitile machinery industries etc.
J53-100B disc friction pressing machine parameters
MODEL:J53-100B
Nominal force:1000
Energy:5
Slide Trips:19
Slide stroke:310
Minimum shut height:320
Work surface:F.B×R.L:500×450
Slider bottom:F.B×R.L:390×280
Dimensions:F.B×R.L×H:1393×1884×3375
power:7.5
total weight:7300
Warranty: The seller guarantee quality of the machines for a period of one year from the date of trial run finish, but not to exceed twenty
months from date on which machines arrive at the port of destination. If any parts (excluding easily damaging parts) are found defective
in quality in the first year, the seller should replace free-of-cost. After one year, parts can be replaced on favorable payment basis.
Double disc friction pressing machine technical parameters
Model |
Nominal force |
Energy |
Slide Trips |
Slide stroke |
Minimum shut height (mm) |
Work surface |
Slider bottom |
Dimensions (mm) |
Power (kw) |
Weight (kg) |
JA53-63 |
630 |
2.25 |
35 |
200 |
315 |
315×270 |
275×227 |
1010×1141×2655 |
5.5 |
3490 |
J53-100B |
1000 |
5 |
19 |
310 |
320 |
500×450 |
390×280 |
1393×1884×3375 |
7.5 |
7300 |
J53-160B |
1600 |
10 |
17 |
360 |
260 |
560×510 |
450×340 |
1465×2240×3730 |
11 |
10186 |
J53-300 |
3000 |
20 |
15 |
400 |
300 |
650×570 |
520×485 |
1603×2581×4345 |
22 |
14800 |
JA53-400D |
4000 |
40 |
14 |
500 |
520 |
820×730 |
636×636 |
3200×2812×5165 |
30 |
23000 |
JA53-630A |
6300 |
80 |
11 |
600 |
650 |
920×820 |
700×700 |
4694×4320×6060 |
55 |
38500 |
J53-1000B |
10000 |
160 |
10 |
700 |
700 |
1200×1000 |
1190×800 |
4200×6630×7250 |
75 |
63160 |
