open type diesel generator set
chinese diesel generators

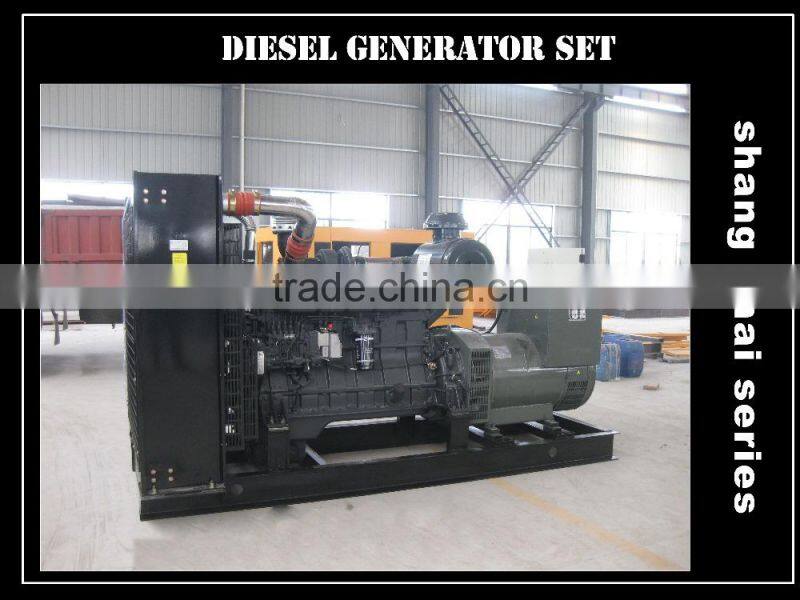

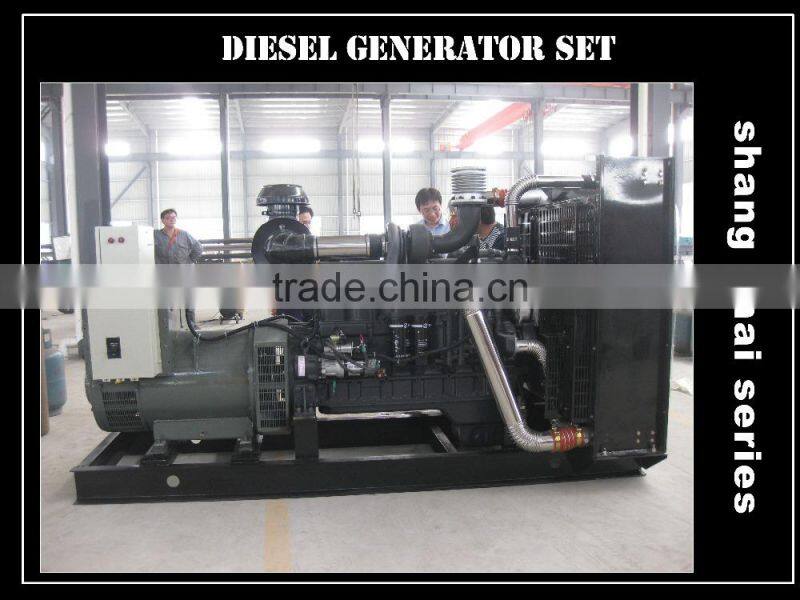

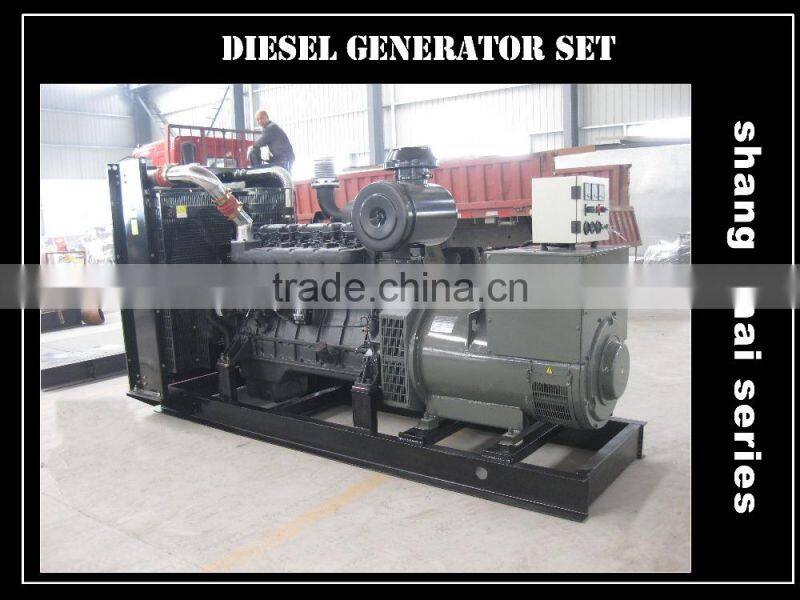

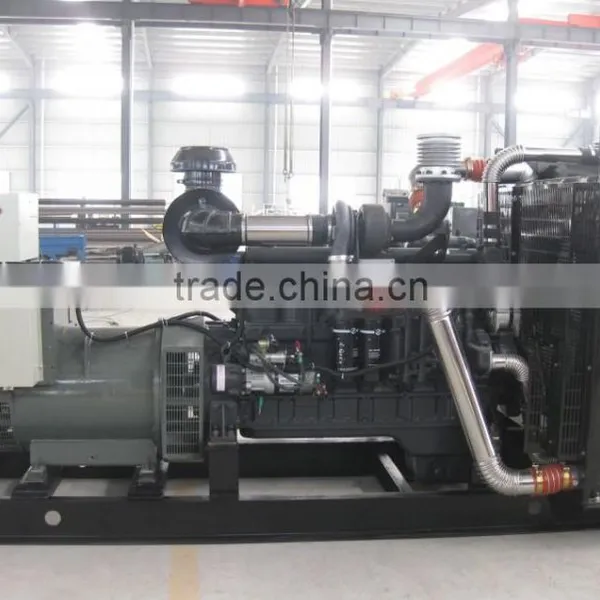

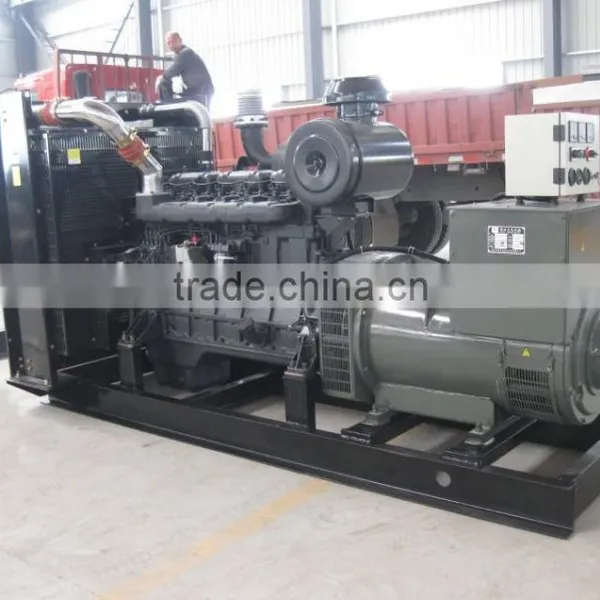

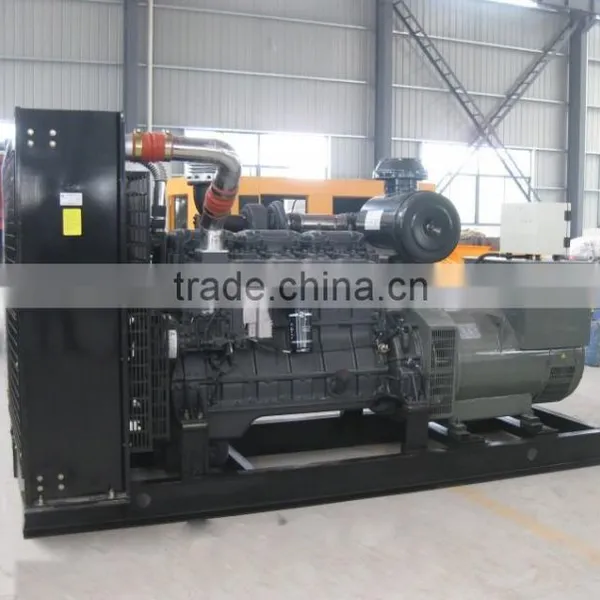

Generators , Diesel generator SC12E500D3
Cost-effective, low fuel consumption
Engineers available to service machinery overseas
| Unit Type | 300KW |
| Diesel brand | Shangchai |
| Diesel Model | SC12E500D3 |
| Number of cylinders arranged | 6L |
| Prime Power (KW) | 336 |
| Standby Power (KW) | 370 |
| Bore x Stroke (mm) | 128*153 |
| Compression ratio | 16:1 |
| Fuel consumption (g / kw.h) | 192 |
| Displacement (L) | 11.8 |
| Debug mode | Mechanical / electronic governor |
| Inlet | Turbocharged |
| Cooling | Closed cooling water tank |
| Generator manufacturers | Stanford Hong Kong |
| Excitation mode | Brushless, Self-excited |
| Voltage (V) | 400/230V |
| Rated Current (A) | 540 |
| Frequency (HZ) | 50 |
| Speed (r / min) | 1500 |
| Phase | 3 phase 4 wire |
| Power factor | 0.8 lagging |
| Dimensions (mm) | 3400×1400×1800 |
| Weight (kg) | 3200 |
My company is located in Jiangsu Province, China, is mainly engaged 24KW ~ 2000KW diesel generator sets, our products are: ordinary type, automation, low noise units, mobile power trailers, marine units and other series. Featured Weichai, on firewood, Yuchai, Jinan Diesel, Deutz, Cummins, Volvo, Mercedes and other domestic and foreign brands of diesel engine, matching Stamford, Marathon, Leroy Somer generators and other internationally renowned, and the implementation of multi-machine parallel operation . Complete product specifications, widely used, can be adapted to non-horizontal, widely used in demand factories, hospitals, railways, transport, hotels, buildings, schools, banks, mines and so on. And exported to Southeast Asia, Western Europe, Africa, North America and other countries and regions.
24 hours online service
Enquiry will be replied in 2 hours.
One year warranty.
Free parts for any breakdown with convincing evidence.
How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our diesel generating lifelong maintenance.
Is Net machine in the stock?If there is no spot,how long is the the production cycle?
No, different customer ,and different request .
Production cycle generally takes 2 months.
Can disassemble the diesel generating for transportation?
Can not, because the assembly process is more complex,and the heavy components for installation .We need to use the crane to install it.
If we buy this diesel generating , can we get free training?
Of course, about 2 working days , you can operate machinery proficiently. It is better ,if you have journeyman.
Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address: Yangzhou City, Jiangsu Province, North Industrial Park Jiangdu
