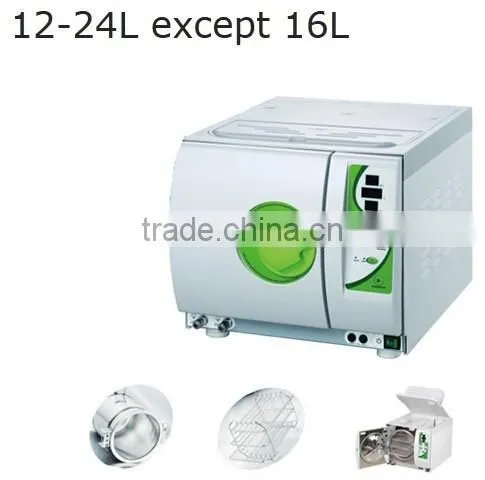

Small Autoclave Dental Autoclave Class B Automatic Bench Top Steam Autoclave
Small autoclave Dental autoclave class B automatic bench top steam autoclave
The table type autoclave is safe and auto-controlled, which is designed for the unit of medical health, phyarmacy, science and technology etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food and other goods.
Main features:
1.The newly-designed model with opening water tank on the top, strictly meets the standard of EN13060, which makes wash and cleaning much more convenient.
It adopts European B standard with 3-times pre-vacuum preceding vacuum drying. Residual humidity is less than 0.2%.
2. Vacuum measurement reaches-0.8bar.It sterilizes and sanitizes miscellaneous packed or unpacked medical instruments, Whether solid or A-type hollow, whether with multi-apertures or inset pipes. It efficiently tides air from every hollow area of any hollow instrument, such as hand-piece, making sure that water steam reaches every corner.
3.Micro-computer processor controlled, digital bright show. The interface is modularized panel for easy operation.
4.It is installed with BOWIE&DICK which measures the penetration of water steam.

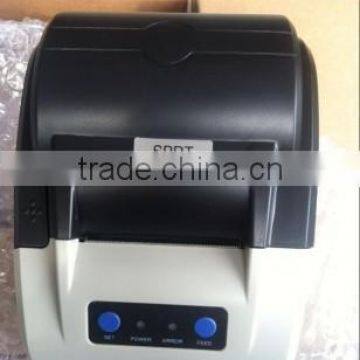

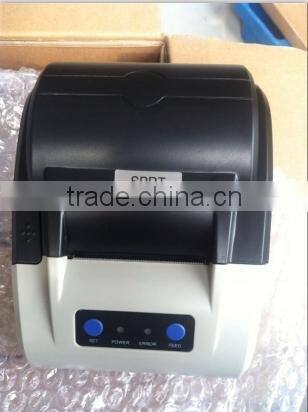

Mini printer can be attached to record the process of sterilization.

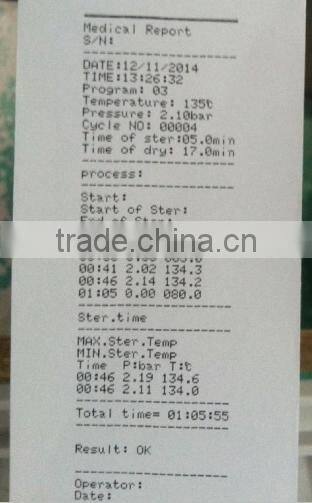

Mini printer & recording data
| Model | TS-DDB12 | TS-DDB18 | TS-DDB24 |
| Volume | 12L | 18L | 24L |
| Sterilization Temp. | 121℃,134℃ | ||
| Drying | Vacuum dry | ||
| Display | LED tube display | ||
| Test system | Bowie&Dick; Vacuum test; Helix test | ||
| Control precison | Temp.:1℃; pressure:0.1bar | ||
| Sterilization data | Optional Mini printer | ||
| Safty system | Relief valve | ||
| Hand lock door | |||
| Pressure lock system | |||
| Pressure or temp. over load protection | |||
| Alarm system | |||
| Water supply | Build-in water tank, easy to clean | ||
| Tray holder | SS basket, SS shelf | ||
| Chamber | Medical stainless steel 304 | ||
| Max working pressure: 2.3Bar | |||
| Min working pressure:-0.9Bar | |||
| Max temp.:145℃ | |||
| Ambient Temp. | 5-40℃ | ||
| Noise | <50db | ||
| Water Consumption per cycle | 0.12-0.18L | ||
| Power supply | 110/220V±10%,50/60Hz | ||
| Chamber Size | Ø192x340mm | Ø240x360mm | Ø245x360mm |
| External Size | 560x450x400mm | 445x550x395mm | 560x450x400mm |
| Packing Size | 660x525x495mm | 670x550x500mm | 660x525x495mm |
| Net Weight | 43kg | 47kg | 47kg |
A: Main machine, 2 years quality guarantee
B. Spare parts: 1 year guarantee. Free for any breakdown with convincing evidence
C: Response in 24 hours.
D: Email/ Free video/ phone guide.
We are professional manufacture and exporter of all kinds of autoclaves in China. Our products are widely used in hospitals, public health centers, health stations, clinics, scientific research institutes, laboratory, food, etc.
We supply high quality product with competitive price, and reliable service.
Welcome to contact us for more details and latest price
