Specifications
China Vertical Steam Autoclave1.Widely be used in Hospital,Dentist,Lab...
2.1 Set MOQ
3.Affordable Price
4.OEM Service
Hot China Vertical Steam Autoclave
Specification of China Vertical Steam Autoclave :
| Model | LX-B35L | LX-B50L | LX-B75L | LX-B100L | LX-B120L | LX-B150L |
| Volume | 35 Liters | 50 Liters | 75 Liters | 100 Liters | 120 Liters | 150 Liters |
| Sterilizing Chamber Volume | Ø280*H500 mm | Ø320*H610 mm | Ø388*H530 mm | Ø388*H670 mm | Ø460*H670 mm | Ø460*H760 mm |
| Working Pressure | 0.22 Mpa | 0.22 Mpa | 0.22 Mpa | 0.22 Mpa | 0.22 Mpa | 0.22 Mpa |
| Max Working Pressure | 0.23 Mpa | 0.23 Mpa | 0.23 Mpa | 0.23 Mpa | 0.23 Mpa | 0.23 Mpa |
| Working Temperature | 134°C | 134°C | 134°C | 134°C | 134°C | 134°C |
| Adjustment of Temperature | 105°C-134°C | 105°C-134°C | 105°C-134°C | 105°C-134°C | 105°C-134°C | 105°C-134°C |
| Timer | 0-80 Minutes | 0-80 Minutes | 0-80 Minutes | 0-80 Minutes | 0-80 Minutes | 0-80 Minutes |
| Heat Average | ≤±1°C | ≤±1°C | ≤±1°C | ≤±1°C | ≤±1°C | ≤±1°C |
| Power |
2.5 KW AC220V 50Hz |
3.5 KW AC220V 50Hz |
3.5 KW AC220V 50Hz |
4 KW AC220V 50Hz |
4 KW AC220V 50Hz |
4.5 KW AC220V 50Hz |
| Sterilizing Baskets | 1 PCS | 1 PCS | 2 PCS | 2 PCS | 2 PCS | 2 PCS |
| Product Dimension | 480*480*940mm | 500*510*1010mm | 580*600*1030 mm | 600*580*1160mm | 660*660*1180mm | 660*660*1260mm |
| Package Dimension | 530*510*940mm | 570*550*1040mm | 620*600*1100mm | 620*600*1180mm | 680*680*1200mm | 680*680*1280mm |
| Gross Weight/Net Weight | 52 kg / 40 kg | 54 kg / 42 kg | 76 kg / 62 kg | 82 kg / 65 kg | 102 kg / 84 kg | 120 kg / 94 kg |
Feature of China Vertical Steam Autoclave :
1. All material is SUS304 stainless steel
2. Overpressure auto-discharging at 0.22-0.23Mpa
3. The working temperature: 126'c-134'c
4. Dual scale numerical pressure gage indicate temperature and pressure
5. Operating easy, security and reliable

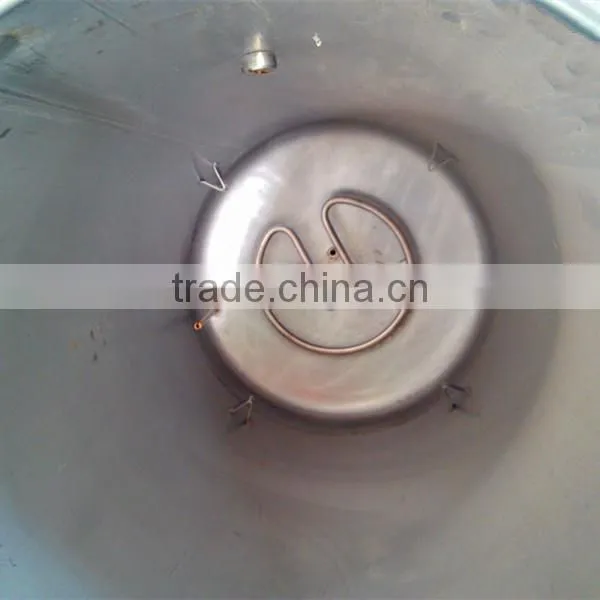

6. Electric heating, Direct heating by immersed copper tubes of heating elements.
7. Timer range: 0-80min
8. Sterilization time and temperature can be controlled by knobs
9. Silicone rubble for seal
10. Automatic shut off with beep reminding after sterilization finished.
Safety Device:
Hydraulic Over Temperature Protection Safety Device
Electrical Leakage Breaker
Pressure: Mechanical Over pressure safety valve
Alarm function: Over heat alarm and stop all the function at the same time, when water in the chamber is not enough.
Safety Device: Pressure control switch, Door safety holder, Over heat protection.
Safety Valve, Electronic circuit safety system, Emergency Exhaust switch.

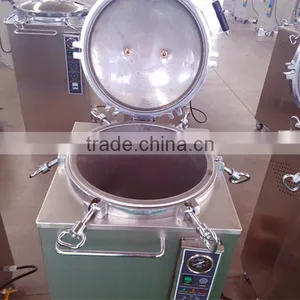

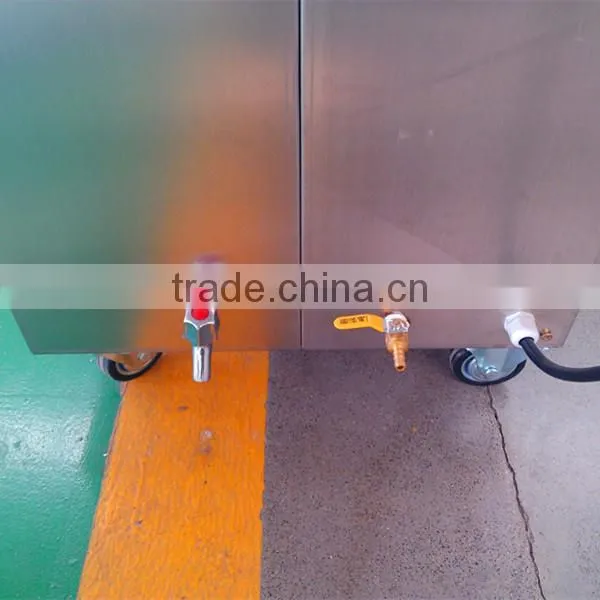

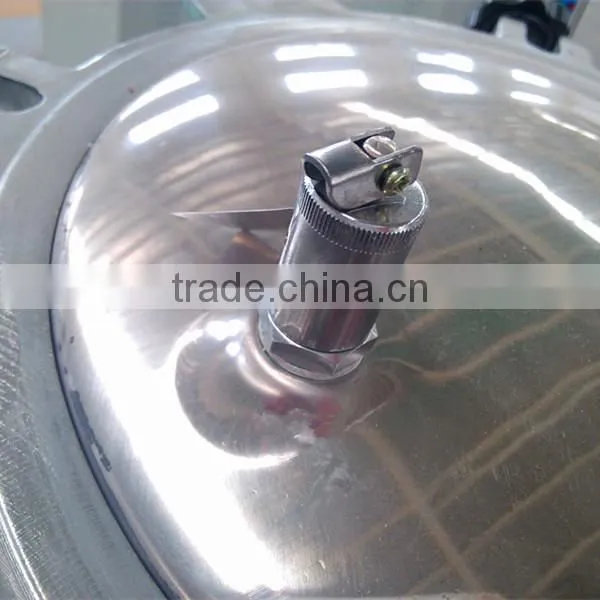

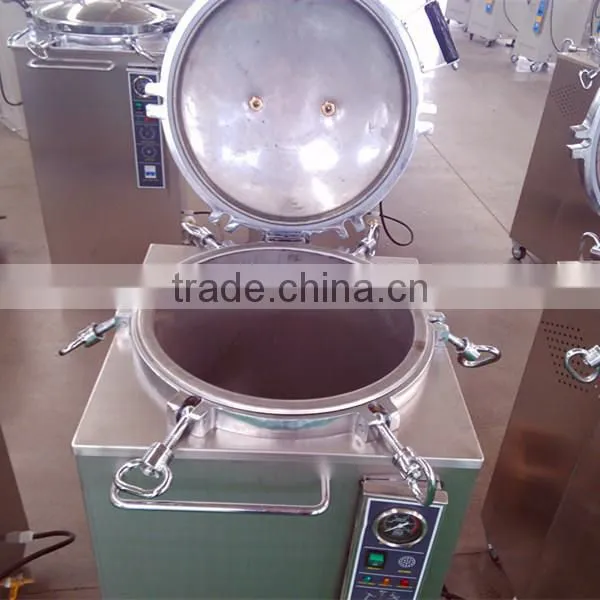

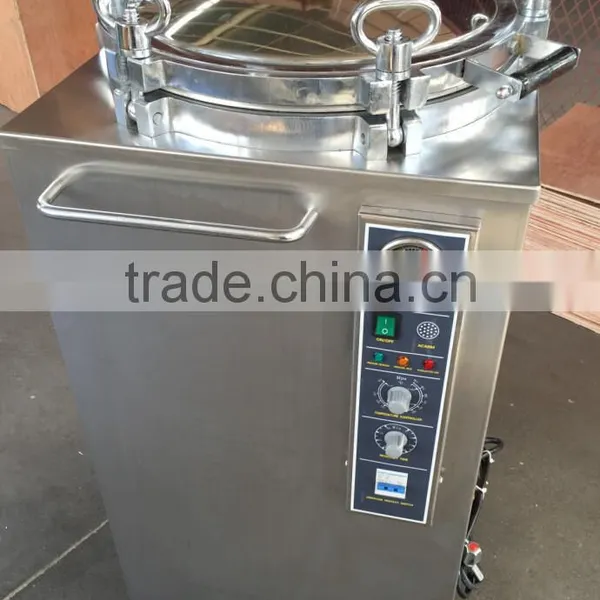

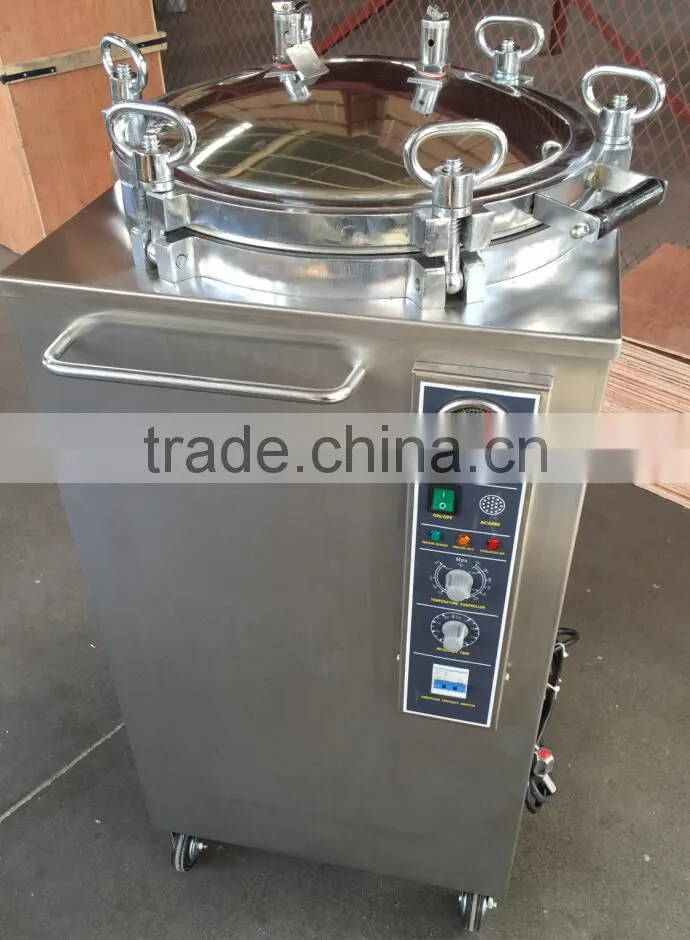

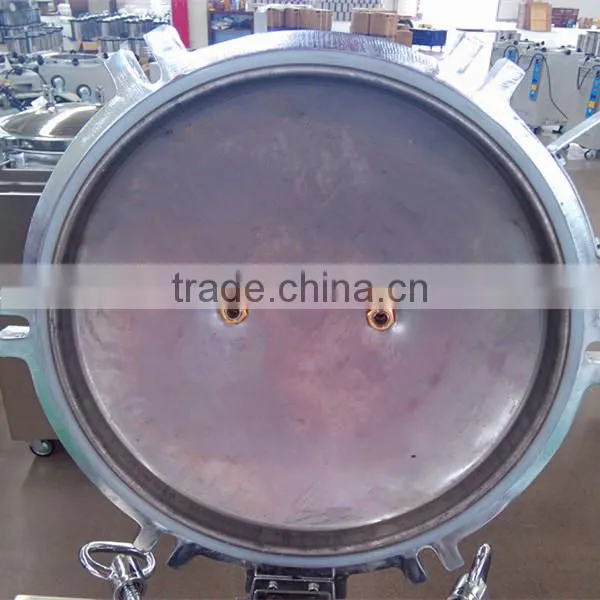

Product Show of China Vertical Steam Autoclave :
Welcome to contact us!
