Specifications
Floor standing steam autoclaveFully stainless steel
Double scale indication pressure gauge
Safety devices

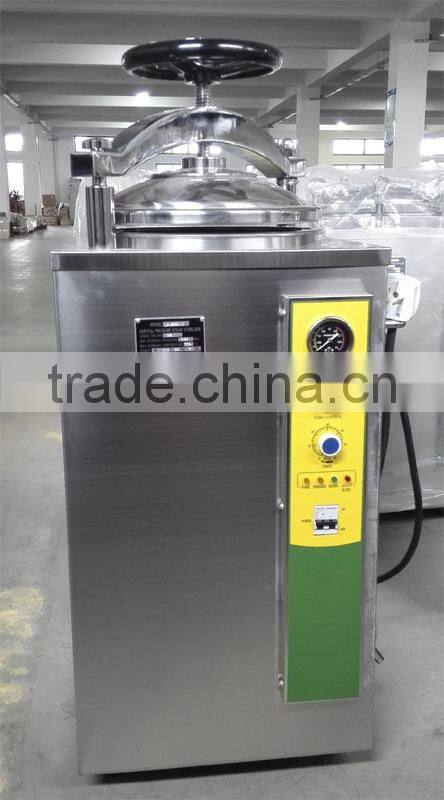

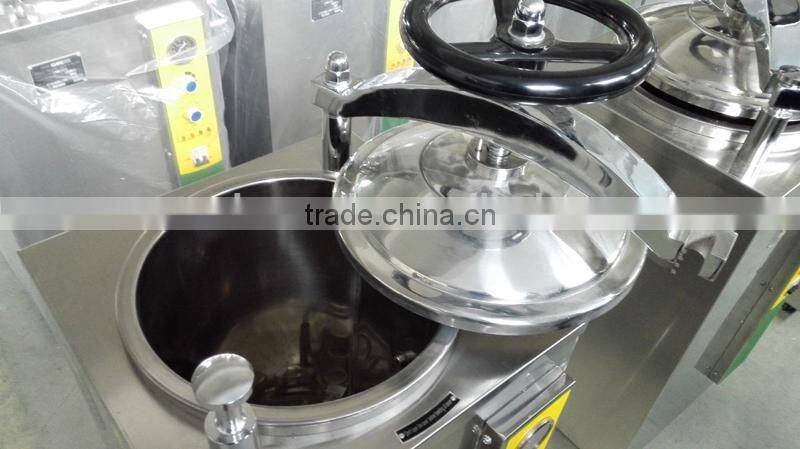

Floor standing steam autoclave with hand wheel quick open door
Model: VA-SJ35, VA-SJ50, VA-SJ75, VA-SJ100
Available Volume: 35 liters, 50 liters, 75 liters, 100 liters.
Floor standing steam autoclave with hand wheel quick open door instructions:
1. Automatic exhausting cold air, heating and sterilization.
2. Sterilization time can be designed by user accord to different articles.
3. Indicator light indicates working condition. Heating will stop when a cycle completed.
4. Horizontal sliding door, self- bulge seal ring, operated easily.
5. Equipped with four foot wheels for easy movement of the unit.
6. Double scale indication pressure gauge.
Safety Device of the floor standing steam autoclave:
1. Over current protector
2. Automatic cut off power if the over temperature is surpassed.
3. Sliding door can't be open until pressure in the chamber exhausted.
4. Safety valve of auto release against overpressureIt opens when the designed pressure is surpassed.
5. Heat insulation dock shelter: the door is made of high performance heat insulation material to prevent the operator to be injured.
Floor standing steam autoclave with hand wheel quick open door specifications:
| Model | VA-SJ35 | VA-SJ50 | VA-SJ75 | VA-SJ100 |
| Volume | 35 Liters | 50 Liters | 75 Liters | 100 Liters |
| Sterilizing Chamber Volume | Ø318*H450 mm | Ø340*H550 mm | Ø400*H600 mm | Ø440*H650 mm |
| Working Pressure | 0.22 Mpa | 0.22 Mpa | 0.22 Mpa | 0.22 Mpa |
| Max Working Pressure | 0.26 Mpa | 0.26 Mpa | 0.26 Mpa | 0.26 Mpa |
| Working Temperature | 134°C | 134°C | 134°C | 134°C |
| Adjustment of Temperature | 105°C-134°C | 105°C-134°C | 105°C-134°C | 105°C-134°C |
| Timer | 0-60 Minutes | 0-60 Minutes | 0-60 Minutes | 0-60 Minutes |
| Heat Average | ≤± 1°C | ≤± 1°C | ≤± 1°C | ≤± 1°C |
| Power |
2.5 KW AC220V 50Hz |
3.5 KW AC220V 50Hz |
3.5 KW AC220V 50Hz |
4.5 KW AC220V 50Hz |
| Sterilizing Baskets | 1 PCS | 1 PCS | 2 PCS | 2 PCS |
| Product Dimension | 450*450*1010mm | 510*470*1130mm | 560*560*1120 mm | 540*560*1250mm |
| Package Dimension | 570*550*1150mm | 590*590*1280mm | 650*630*1280mm | 680*630*1370mm |
| Gross Weight/Net Weight | 72 kg / 56 kg | 88 kg / 68 kg | 100 kg / 80 kg | 110 kg / 85 kg |
