360 Liters Double Door Autoclave Class B
Specification of Autoclave Class B :
| MODEL | HA-BVD360 |
| Capacity(L) | 360 |
|
Inner Chamber Dimension |
1000*600*600 |
|
Outer Dimension |
1300*1350*1900 |
|
Steam Pressuer and the Consumption |
0.3-0.7Mpa 25KG |
|
Water Source Pressure and the Consumption |
0.15-0.3Mpa 40KG |
| Power | 26KW |
| Net Weight(KG) | 100 |
| Compressed Air Pressure |
0.3~0.7 Mpa |
Feature of Autoclave Class B:
The main body is with horizontal rectangle double layer structure, the inside chamber is made of SUS30408 or SUS31608 stainless steel, the outer layer is made of the brushed decorative sheet, and the there is motorized door or sliding door for choose, pneumatic sealing, and the double door interlocking are strictly in accordance with the GSSD required.
The control system: Adopt the Siemens PLC and Siemens touch screen.

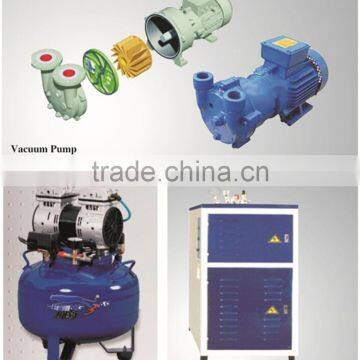

The piping system: Adopt with the reliable Germany Burket or GEMU pneumatic angle type valve, water ring pump and 0.22µm high efficiency sterile medical grade filters, the pipe clamp adopts the quick connectors, the piping and the related spares are all according to the sanitation standard.
1. With Germany Simens PLC platform independent research and development, human-Machine Interaction, convenient for operation.
2. Software design and manufacture products in strict accordance with the technical requirements for the sterilization process.
3. The Operating authority is divided into three levels to the manager, the technologist, and the operators.
4. Program interlocked, by the program is running, the sealing door can not be open.
5. All the alarm and the technical figures can be recorded and print.
6. If the inner chamber is higher than the safety pressure, the door can not be open.
7. Perfect product safety protection measures, 4 level emergency treatment of abnormal state.
Product Show of Autoclave Class B:
