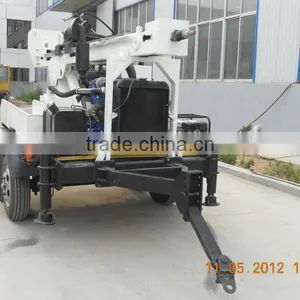

SLY400T hydraulic trailer-mounted water well drilling rig it can drill 150m depth,use for agricultual project.
The SLY400-T is a Trailer mounted water well drilling rig, compact fully hydraulic, for down-the-hole
hammer and rotary drilling up to 150 meters.
Description | SLY400-T |
Geology drilled | All kinds |
Drill depth | 0-150 m |
Drilling Diameter | 90 - 200mm |
Drill system and operation | Hydraulic |
Rig assembly | 1 complete unit, main engine driven |
Mobility | 4 wheel tandem road trailer |
Transportation | Towed by pickup or light truck |
Drill pipe (diameter x length) | 60/76 mm x 2 m |
Mud pump | 400 L/min@ 6 bar progressive pump |
Foam pump | Hydraulic driven, mounted on rig |
Weight | 2177 kg |
ROTARYHEAD&FEED SYSTEM |
|
Top head drive by a hydraulic cylinder through heavy duty chain. | |
Rotation torque | 2232 N-m |
Speed | 0 - 34 rpm. |
Head travel | 2.25 meter |
Pull-up capacity | 3813.09 kg. |
Pull-up speed-slow feed | 1.22 meter/min |
Pull-up speed-rapid feed | 12.26 meter/min |
Pull-down speed-slow feed | 0-1.88 meter/min |
Pull-down speed-rapid feed | 0- 16.90 meter/min |
