Specifications

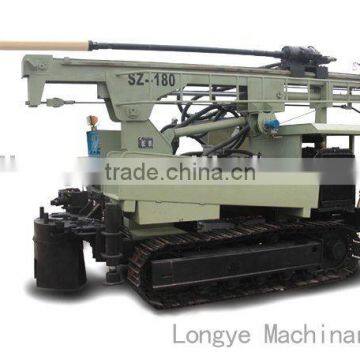

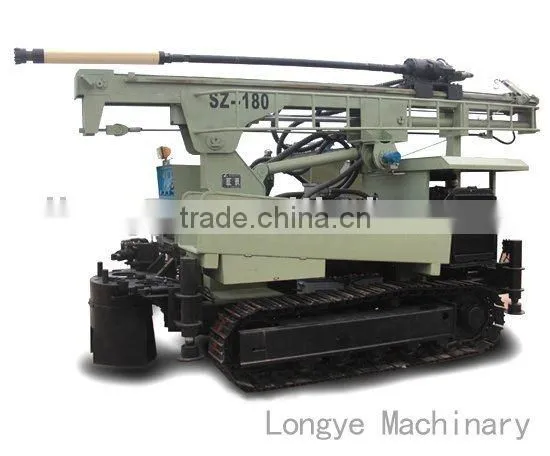

SZ-180 water well drilling machine,high air pressure hydraulic drilling rigSZ-180 water well drilling machine
SZ180 water well drilling rig have the character of light,high efficiency,multi-function.According to different conditions,it uses air,foam or slurry to rotate and drill.
Application:it is widely used in industrial and agriculture water project,drill water well,inspect well and other exploration borehole.which especially used for drilling geothermal heating stove.
Technical parameter;
Bore diameter | 90-215mm |
Bore depth | 180m |
Work pressure | 1.05-2.46Mpa |
Air consumption | 16-30m3/min |
Drill rod length | 3m |
Drill rod diameter | 76mm |
dimension | 5020*2040*3200 |
Climb ability | 25degree |
Walking speed | 2.5km/h |
Total weight | 6.8T |
Axial pressure | 40820N |
Hoist force | 68040N |
Rotation torque | 3200NM |
Rotation speed | 130r/min |
Motor power | 55kw |
