Home > Products > water well drilling rig > Cheap 300M Crawler-mounted Water Well Drilling Rig SLY600/With CE Certificate

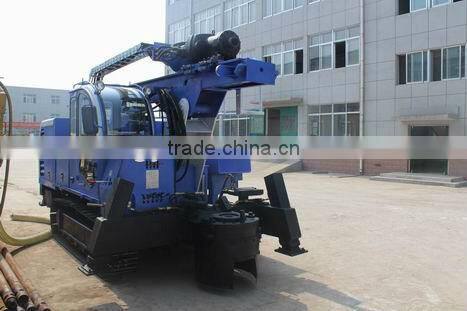

Cheap 300M Crawler-mounted Water Well Drilling Rig SLY600/With CE Certificate
- Qingdao
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Other, water well drilling rig | |
| Place of Origin | Shandong, China | Brand Name | longye | |
| Model Number | sly600 | Usage | Water Well | |
| Voltage | 220v | Power(W) | 118 | |
| Dimension(L*W*H) | 6300*2320*2780 | Weight | 11.8t | |
| Certification | CE | Warranty | main spare parts one year | |
| After-sales Service Provided | Overseas service center available |
Product Description
SLY600 water well drilling rig have the character of light,high efficiency,multi-function.According to different conditions,it uses air,foam or slurry to rotate and drill.
Application:it is widely used in industrial and agriculture water project,drill water well,inspect well and other exploration borehole.which especially used for drilling geothermal heating stove.
Technical parameter;
Bore diameter | 115-320mm |
Bore depth | 320m |
Work pressure | 1.05-3.0Mpa |
Air consumption | 16-30m3/min |
Drill rod length | 3m |
Drill rod diameter | 89mm |
dimension | 6300*2320*2780 |
Climb ability | 30degree |
Walking speed | 2.5km/h |
Total weight | 11.5T |
Feed system | |
Axial pressure | 57000N |
Hoist force | 80000N |
Rotation torque | 5200NM |
Rotation speed | 130r/min |
Contact Us
- Shandong Longye Machinery Co., Ltd.
- Contact nameTina Yu Chat Now
- Phone0086-136-15486903
- AddressRongda Road, Taishan Youth Venture Development Zone, Shandong, China
