SLY400T Wheel Water Well Drilling Rig

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, water well drilling rig
Place of Origin	Shandong, China	Brand Name	longye
Model Number	SLY400T	Usage	Water Well

Product Description

Specifications

SLY400T water well drilling rig
easy to transport
high efficiency
low cost
ISO certificate

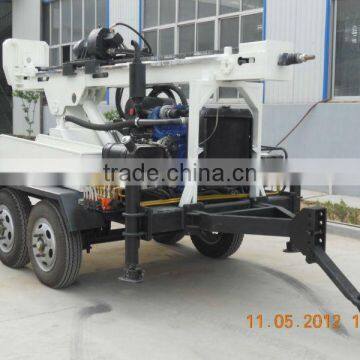

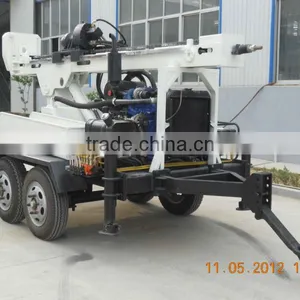

The SLY400-T is a Trailer mounted water well drilling rig, compact fully hydraulic, for down-the-hole
hammer and rotary drilling up to 150 meters.

Description	SLY400-T
Geology drilled	All kinds
Drill depth	0-150 m
Drilling Diameter	90 - 200mm
Drill system and operation	Hydraulic
Rig assembly	1 complete unit, main engine driven
Mobility	4 wheel tandem road trailer
Transportation	Towed by pickup or light truck
Drill pipe (diameter x length)	60/76 mm x 2 m
Mud pump	400 L/min@ 6 bar progressive pump
Foam pump	Hydraulic driven, mounted on rig
Weight	2177 kg
ROTARYHEAD&FEED SYSTEM
Top head drive by a hydraulic cylinder through heavy duty chain.
Rotation torque	2232 N-m
Speed	0 - 34 rpm.
Head travel	2.25 meter
Pull-up capacity	3813.09 kg.
Pull-up speed-slow feed	1.22 meter/min
Pull-up speed-rapid feed	12.26 meter/min
Pull-down speed-slow feed	0-1.88 meter/min
Pull-down speed-rapid feed	0- 16.90 meter/min
