Mobile Truck-mounted Water Well Drilling Rig

Name: Mobile Truck-mounted Water Well Drilling Rig
Brand: Longye
SKU: 141559082
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Other

Place of Origin:

Shandong, China

Shandong Longye Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other

Place of Origin Shandong, China

Brand Name Longye

Model Number SLY400

Usage Water Well

Specifications

SLY400 mobile truck-mounted water well drilling rig is lightweight, efficient, multi-purpose drilling equipment.

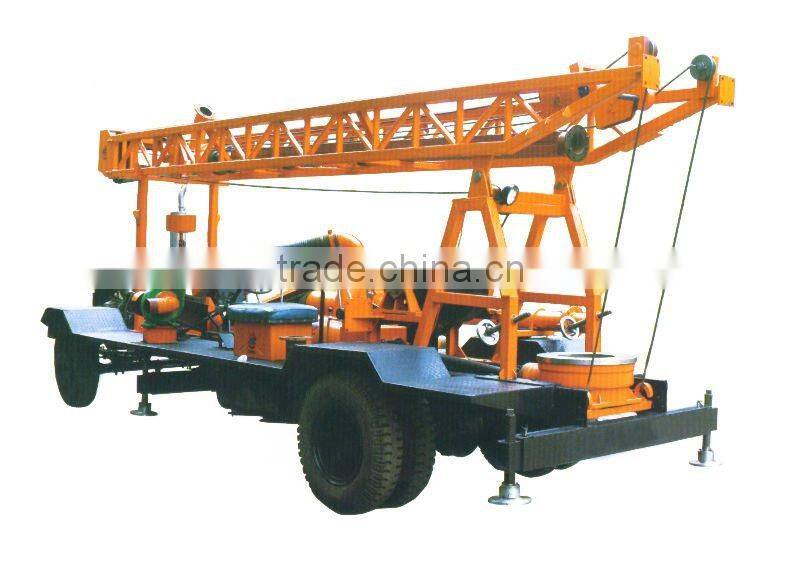

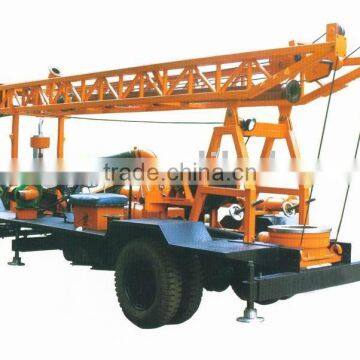

mobile truck-mounted water well drilling rig SLY400

Technical parameter
Drilling depth(M)			150 400
Drilling diameter(mm)
Speed of turntable(r/min)			80.3;52.1;32.7; 18.64;10.99; 10.48(reverse)
Torque of turntable(KN.m)			7.1; 10.9; 17.4; 30.7; 52.1; 54.8 (reverse)
Single rope lifting capacity of windlass(KN)			30
Lifting capacity of hook(KN)			120
Bearing capacity of mast (KN)			150
The height of mast (mm)			7240
Bearing weight(t)			15
Pipe	Kelly (mm)		*1821825000*
	Assistant pipe(mm)		*Φ16883000 (screwed connection)*
Hydraulic pump	Model		CB-E532
	Pump delivery(ml/r)		32
	Rater speed (r/min)		2000
	Rated pressure (MPa)		16
Mud pump	Flux (m³/h)		180
	Suction (m)		7.5
	Delivery lift (m)		26
	Speed (r/min)		1450
	Power (KW)		30
Sewage pump	6BS Sewage pump	Flux (m³/h)	280
		Suction (m)	7.5
		Delivery lift(m)	18
		Speed (r/min)	730
		Power (KW)	30
Match power	Diesel engine	Model	YUCHAI 4108
		Rater power(KW)	55
		s peed(r/min)	2000
