Truck-mounted Water Well Drilling Rig of SLY500

Name: Truck-mounted Water Well Drilling Rig of SLY500
Brand: Longye
SKU: 141559094
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Other, water well drilling rig

Place of Origin:

Shandong, China

Shandong Longye Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, water well drilling rig

Place of Origin Shandong, China

Brand Name Longye

Model Number SLY500

Usage Water Well

Specifications

truck-mounted water well drilling rig of SLY500 is lightweight, efficient, multi-purpose drilling equipment.

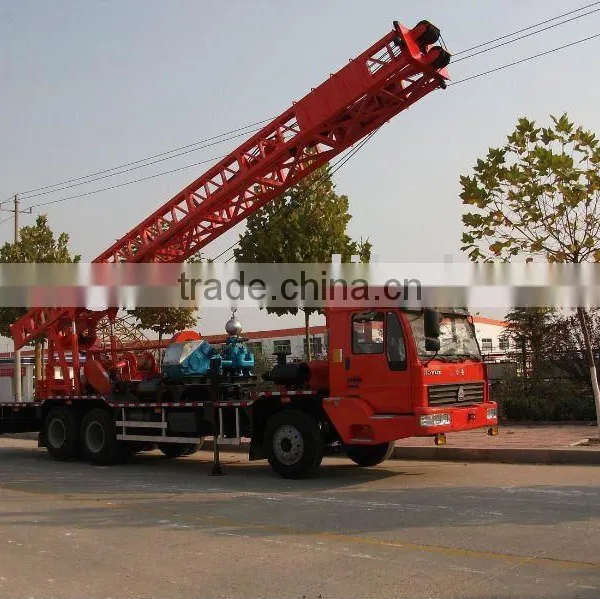

Truck-mounted water well drilling rig of SLY500

Technical parameters
Drilling depth(m)				80	300
Drilling diameter(mm)				1500	500
Rotary speed(r/min)				21.2;36;63.2;100.6;155;20.2(reverse)
Rotary torque(KN)				18;10.6;6;3.8;2.5;18.9(reverse)
Single rope lifting capacity of windlass(KN)				30
The mix lifting capacity of windlass(KN)				180
Single rope lifting capacity of hydraulic hoisting vice(KN)				40
The mix lifting capacity of hydraulic hoisting vice(KN)				160
The lifting capacity of hook(KN)				180
Bearing capacity of mast (KN)				180
The height of mast (mm)				11500
Bearing capacity (t)				25
Pipe	Kelly(mm)			1081087500
	Assistant pipe (mm)			Diameter 89105500

BW850/2A Mud pump	Diameter of cylinder (mm)			150
	Stroke of piston (mm)			180
	Theory of flow (L / min)			600 850
	Rated pressure (Mpa)			3 2
	Pounding times (min^-1)			58 82
	Diameter of suction tube (mm)			127
	Diameter of drain pipe (mm)			64
	Input speed (r / min)			470
	Input power (kw)			40
	Overall dimensions (mm)			200010301400
	Weight (t)			1.5
Supporting power	Engine		Model	CA6DE3-20E3
			Rated power(KW)	147
			Speed (r/min)	2300
			The maximum torque	650.m/1400-1500rpm
Truck chassis	Model
	Drive form			6*4
	Engine	Model		CA6DE3-20E3(Europe three emission standard)
		Rated power(KW)		147
		Speed (r/min)		2300
				1111024902500
Electri generator	Model			MF
	Rated power (kw)			15
	Rated voltage(v)			400
	Rated current(A)			27
	power factor			0.8
	Speed (r/min)			1500
	Frequency(Hz)			50
	Insulation Class			H
	Protection level			IP21
The best working gear (or speed)				5^thgear (1000-1400r/min)
The highest speed(Km/h)				75
Weight (kg)				19600
Transport size(LWH)(mm)				1216024903440
Working size(LWH)(mm)				11110249013110
