Help CenterMobile Water Well Drilling Rig(SZ-200)
Related Products
Specifications

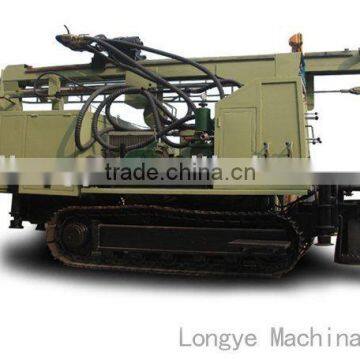

SZ-200 hydraulic mobile water well drilling rig,high air pressure hydraulic drilling rigSZ-200 hydraulic mobile water well drilling rig
SZ-200 track-type multi-well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements
Main technical parameters
Technical parameters and specification |
|
Drilling diameter (mm) |
127~254 |
Drilling depth (m) |
213 |
Work Pressure(Mpa) |
1.05~2.46 |
Consumption (m³/min) |
16~30 |
Drill pipe length (m) |
3 |
Drill pipe diameter (mm) |
76 |
Dimensions(mm)(L*H*W) |
5800*2040*3200 |
Grade ability (°) |
25 |
Footage efficiency(m/h) |
5~20 |
Travelling speed(Km/h) |
0~2.5 |
Total weight(t) |
8 |
Main volume system |
|
Lifting power (N) |
3400 |
Speed up (m/min) |
50 |
Decreasing (m/min) |
96 |
Feed systems |
|
Axle pressure (N) |
40820 |
Lifting power (N) |
68040 |
Slow up (m/min) |
8 |
Slow forward (m/min) |
16 |
Fast rise (m/min) |
26 |
Fast forward (m/min) |
48 |
Rotary torque (Nm) |
3400 |
rotary speed |
0~130 |
1,Console and platform combination, easy to operate, with platform wide enough to enable the operator and the assistant to leave the mud appropriate height operations, folding walking platform, the control system to focus on the operation platform, easy to operate.
2,Hydraulic driving force for car engines, according to the impact of perforation size and the selected configuration corresponding compressor can greatly reduce the energy consumption and construction investment costs.
3,Steel crawler chassis and hydraulic jacks and level of instrument use; it can guarantee its complex environment in any rugged and accurate under normal perforation operation.
4,Rotating power head has two low-speed high torque hydraulic motor drive, can ensure strong torque output. In the main volume state, turret, and the centering device put to one side, away from the centerline, to enhance the discharge rod or casing.
