Full Hydraulic Drilling Rig

Full Hydraulic Drilling Rig photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Core Drilling Rig
Place of Origin Shandong, China
Brand Name longye
Model Number SLYD-5
Usage Ore

Specifications

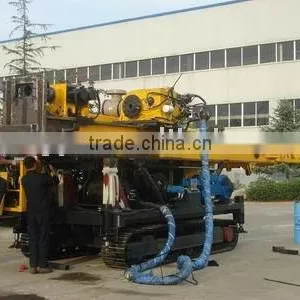

SLYD-5 Full hydraulic drilling rig

SLYD-5  Full hydraulic drilling rig

  1. Drill rig adapts full hydraulic driving, moving with crawlers itself
  2. Drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure
  3. Rotator is fed and driven with a system connecting the spindle and oil cylinder with chain
  4. Mast could be adjusted within the range of angle 0 to 90 degree for its drilling hole with a low center of gravity and good stability of the overall unit
  5. Rig provides operator with a nice field of vision and wide and comfortable working condition
  6. Rig looks pretty in overall structure and embodies the design thought of people oriented
  7. Basing on the guideline of purchasing the critical auxiliary equipment internationally, diesel engine, hydraulic pump, main valves, motors, crawler reducers and key hydraulic spare parts are all adapted famous brands products at home and abroad
  8. With big torque, high power unit allocation and with reasonable structure design and advanced operation method and 6 meters length of drill rod, all these guarantee the drill rig's high operation and performance efficiency .

Main Performance Parameter of SLYD-5



Diesel Engine

Model

YC6M

Power

136kW

Rated RPM(Factory setting)

2200RPM

Drilling Capacity

BQ

1500M



NQ

1300M



HQ

1000M



PQ

680M

Drill Head

RPM

Two Shifts/ Stepless Change 0-1145 RPM

Max. Torque

4650 N·m

Hold Diameter

121 mm

Max. Lifting capacity of Spindle

150 kN

Max. Feeding Power

75 kN

Mud Pump

Model

BW250

Stroke

100mm

Other

Weight

13000 Kg

Dimensions (L ×W ×H )

5600×2240×2650mm

Transport Way

Steel Crawler
