hydraulic crawler drilling rig(CTQ-G150Y)

Specifications

CTQ-G150Y hydraulic crawler drilling rig,high air pressure hydraulic drilling rig

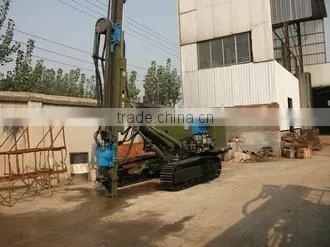

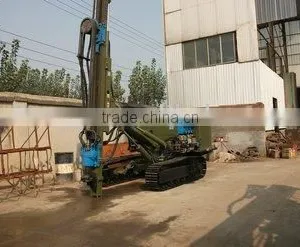

CTQ-G150Y hydraulic crawler drilling rig



CTQ-G150Y drilling rig have the charter of low energy consumption,high efficiency,eeasily transportation.The operating has been implemented by hydro-system.Due to the double motoring design it has more stronger wrench in large hole operating.The flexibility and strange in climbing made it can working in most demanding area.The diameter of the driller is among 105-165mm and it is easily in maintenance.

Application:

This type of machine is opertism choice in opening are mining,hydro-power plant,electric power stations,and road building for exploraion the stone

Working pressure	1.2-2.46Mpa
Air consumption	11-25m3/min
Bore diameter	105-165mm
Bore depth	Horizontal 50 down 30
Feed stroke	3000mm
Drill rod diameter	76mm
Guide compensation	1200mm
Lifting force	26000N
Guide pitch	Up and down 100degree
Guide swing	Left 90 right45
Boom pitch	Up and down 70degree
Boom swing	Left 45 right45
Climb ability	30 degree
Ground clearance	300mm
Walking speed	2.5km/h
Rotation speed	0-90r/min
Rotation torque	3000N.M
Motor power	56KW
Total weight	6300kg
dimension	5800*2070*2400
