hydraulic crawler drilling equipment (CTQ-D100YA1)
- 10 Set / Sets per Month
- Qingdao Port
- T/T
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Core Drilling Rig | Place of Origin: | Shandong, China |
Brand Name: | longye | Model Number: | CTQ-D100YA1 | Usage: | Ore |
Product Description
Specifications
CTQ-D100YA1 hydraulic crawler drilling equipment,low air pressure hydraulic drilling rigCTQ-D100YA1 hydraulic crawler drilling equipment

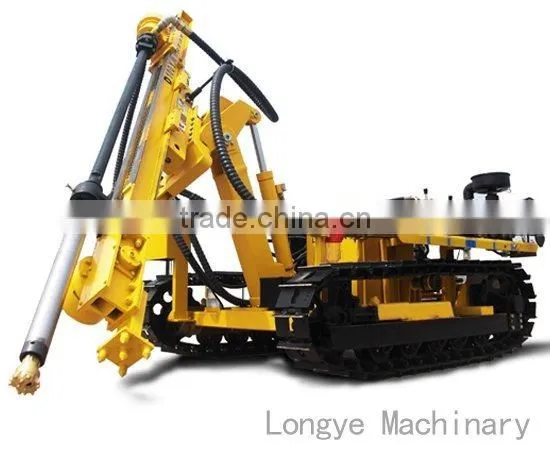

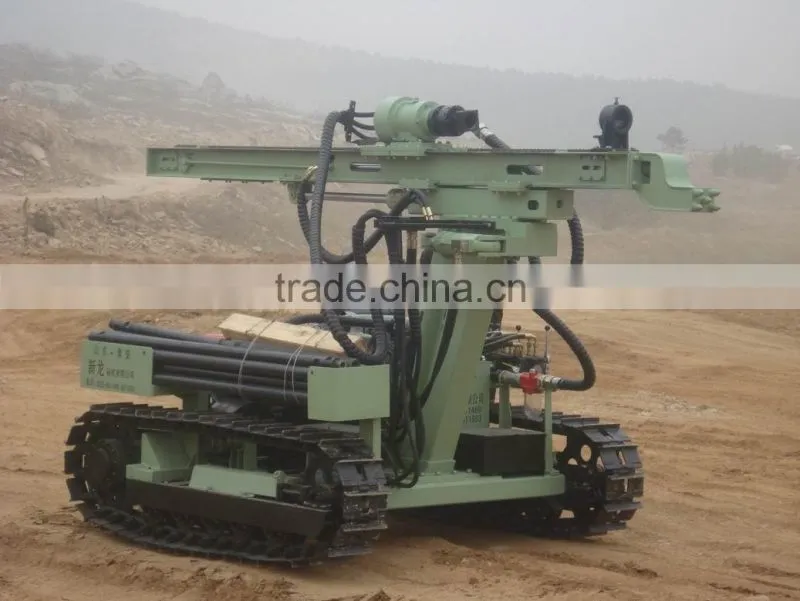

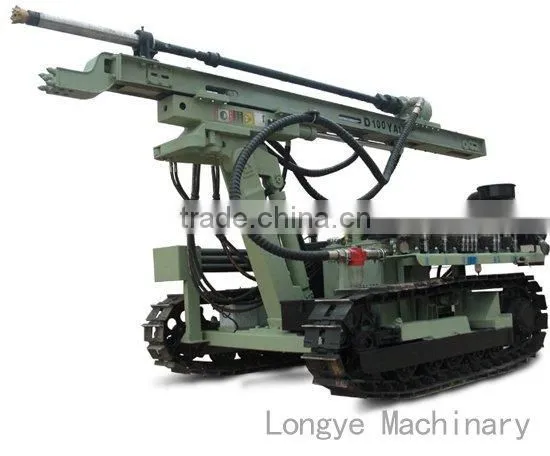

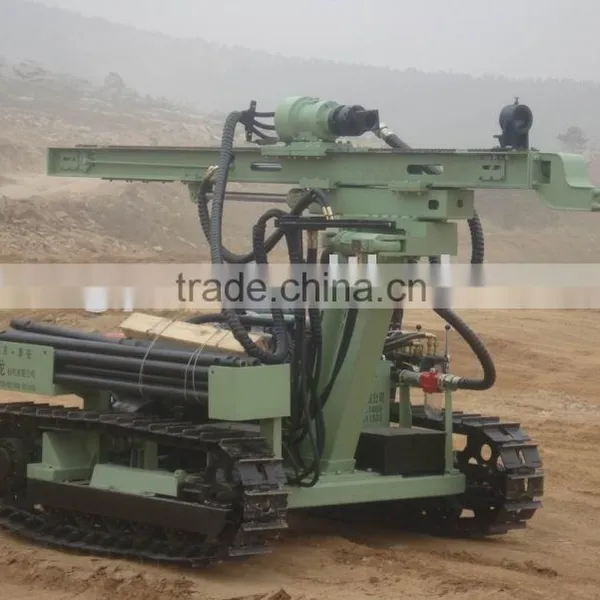

The CTQ-D100YA1 crawler drill machine is our company CTQ-D100Y improved product,that uses integrated system in order to enhance its performance.This model also improve the elevation mechanism,walking system as well as the effective life of the hydraulic compents which reduce customers’expenses. It has a compact structure that enable climbs and a simple operation, also it has slide rails that have the expansion and contraction compensatory functions that makes machine stable while is working.This machine has a wide range of uses,road constructions
Application:

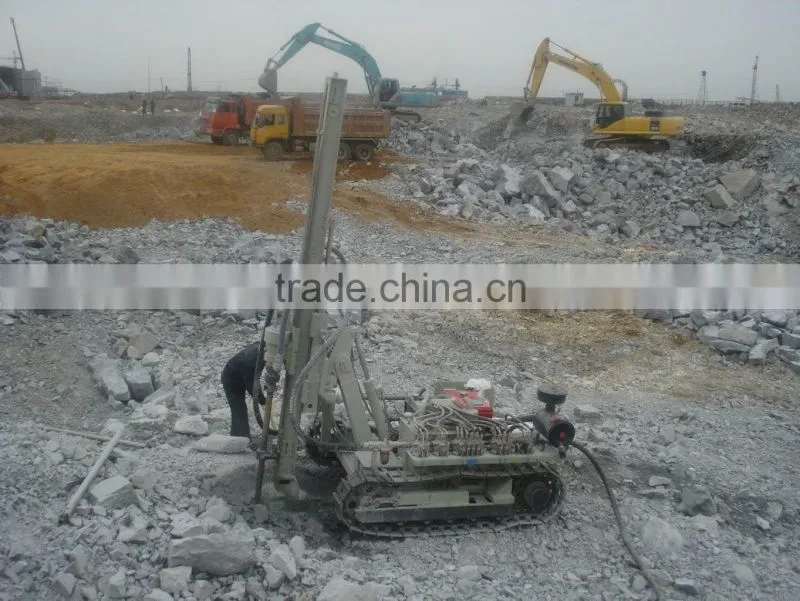

CTQ-D100YA1 crawler hydraulic drilling rig is mainly used in open cut ore mining,power station,road building for exploring the stone.
Total weight | 2600kg |
Bore diameter | 90-130mm |
Dimension | 4100*2030*2020 |
Bore depth | 30m |
Travelling speed | 2km/h |
Climb ability | 30° |
Feed stroke | 2000mm |
Working pressure | 0.7-1.0Mpa |
Ground clearance | 250mm |
Air consumption | 7-10m3/min |
Slip frame pitch degree | Up and down 100 degree each |
Slide kid slanting allowance | Left 35 degree right 10 degree |
Rated motor power | 18.6kw |
