D100YA2 top quality hydraulic rotary drill rig for mine engineering
Negotiable
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- QingDao port
- T/T
You May Like
-
3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
-
2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
-
The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
-
Coal mine tunnel drilling rig ZLJ350 head can be turned
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
| Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Place of Origin: | Shandong, China | Brand Name: | LongYe | Model Number: | CTQ-D100YA2 |
| Usage: | Ore | Voltage: | 24 v | Power(W): | 33000 |
| Dimension(L*W*H): | 4300*2030*2160 (mm) | Weight: | 2860kg | Certification: | CE |
| Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Description

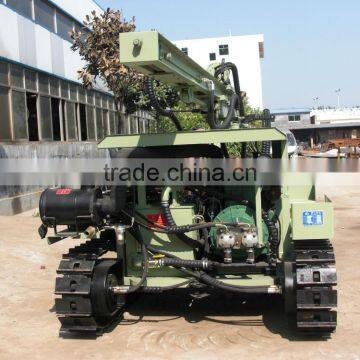

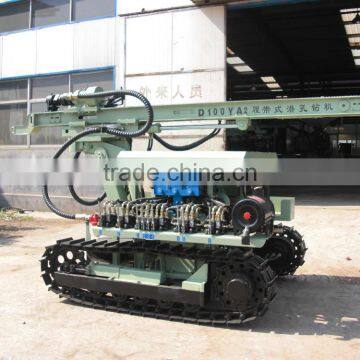

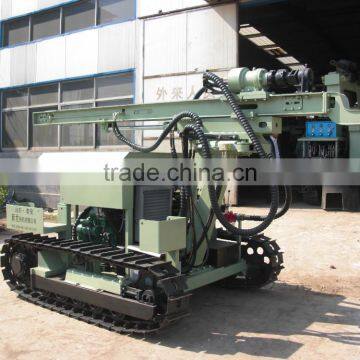

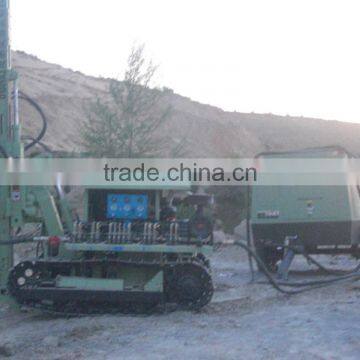

CTQ-D100YA2 crawler hydraulic drilling rig ,the smallest turning radius of only 2.8m,while promoting a retractable sliding shelf compensation, using a new hydraulic technology,is mainly suitable for open mining ,hydro-power plants, electric power stations,road building and other rock drilling blasting holes.
technical parameters
Total Weight(T) | 2.8 |
Drilling diameter(mm) | 90--130 |
Dimension (L * W * H)(mm) | 4100*2030*2020 |
Drilling depth(m) | 30 |
Travelling speed(km/h) | 2 |
Once promotion distance(m) | 2 |
Climb ability(.) | 30 |
Working pressure(MPa) | 0.7-1.4 |
Chassis ground clearance(mm) | 250 |
Air consumption(m3/min) | 7-15 |
Skid pitch(.) | up and down 100 |
Host Power(kw) | 33kw |
Sliding tilt swing(.) | L35,R10 |
For rock | F=6-20 |
Skid compensation(mm) | 900 |
Company Information
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.
