G140YF top brand DTH drilling rig of china for mining
- 50 Set / Sets per Month
- QingDao Port
- T/T
-
3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
-
2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
-
The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
-
Coal mine tunnel drilling rig ZLJ350 head can be turned
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
| Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Place of Origin: | Shandong, China | Brand Name: | LongYe | Model Number: | CTQ-G140YF |
| Usage: | Ore | Voltage: | 24 v | Power(W): | 56000 |
| Dimension(L*W*H): | 5270*1960*2300(mm) | Weight: | 4800kg | Certification: | CE |
| Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

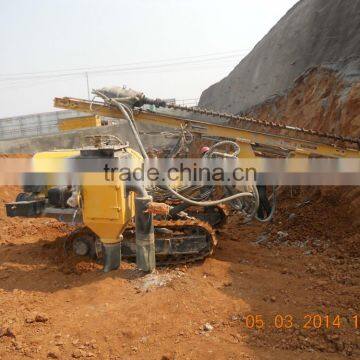

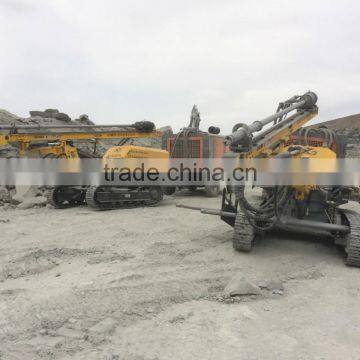

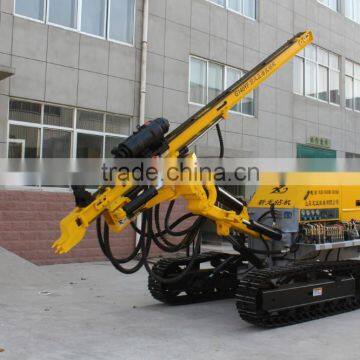

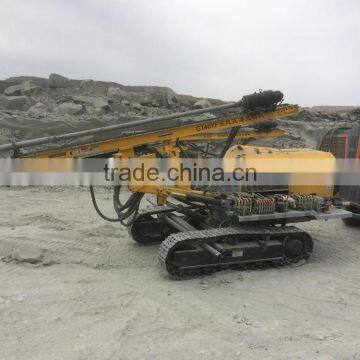

CTQ-G140YF crawler blasting drilling rig ,with a low energy consumption, high efficiency,easy to transport.The drilling rig is controlled by hydraulic system,only DTH hammer consume air.The rotary system adopts a new type motor,which supplies large output of rotary torque.In chassis system,there are a pair of floating cylinders floating in the range of 15 degree to adjust the balance of drilling rig when it works in rugged mountain road,it is very helpful for diesel engine and vertical positioning of drilling rod.
CTQ-G140YF crawler blasting drilling rig are usually used for mining, highway, water conservancy , power station construction and other blasting hole projects.
Air pressure(Mpa) | 1.05-2.46 |
Air consumption (m3/min) | 10-20 |
Bore diameter (mm) | 115-140 |
Bore depth (m) | 60 |
Once promotion(mm) | 3000 |
Walk speed (kw/h) | 0-2.5 |
For rock | F=6-20 |
Host power(kw) | 56 |
Skid pitch(.) | up and down total 100 |
Skid swing angle(.) | up and down total 100 |
Boom pitch(.) | Left and right total 60 |
Boom swing angle(.) | Left and right total 70 |
Rotation speed(r/min) | 0-126 |
weight(Kg) | 4800 |
Dimension(L*W*H) (mm) | 5270*1960*2300 |
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.
