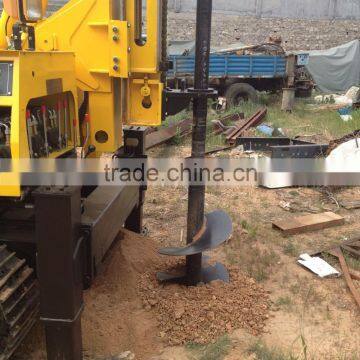

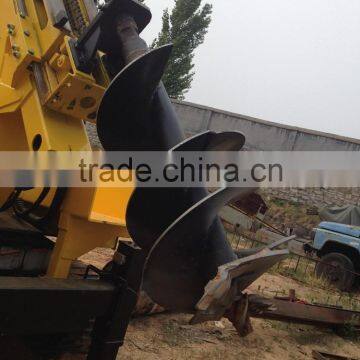

Hydraulic pile rotary drilling rig SLY580
SLY580 hydraulic pile rotary drilling rig , using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. This drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency .
The drilling rig is mainly used for piling anchor, water Wells, geothermal photovoltaic solar spiral pile, DTH blasting construction, etc. The Technical parameters as follow:
Main technical parameters
Bore diameter DTH hammer drilling (mm) |
90-300mm |
Bore depth(m) |
213m |
Walk speed(km/h) |
0-2.5 |
For rock |
F=6-20 |
Air pressure(Mpa) |
0.7-1.6Mpa (cetral pressure ) |
1.6-2.46Mpa (high pressure) | |
Air consumption(m3/min) |
10-26 |
Once promotion(mm) |
3000 |
Hole dia(auger drilling ) |
Max 1000mm |
Hole depth |
20m |
Rotation Speed(r/min) |
0-100 |
Rotation torque(Nm) |
9600 |
Lifting power(T) |
12 |
Climb ability(.) |
25 |
Dimension(L*W*H)(mm) |
6800*2100*2600 |
weight(Kg) |
8700 |
