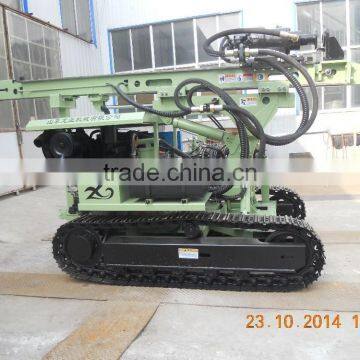

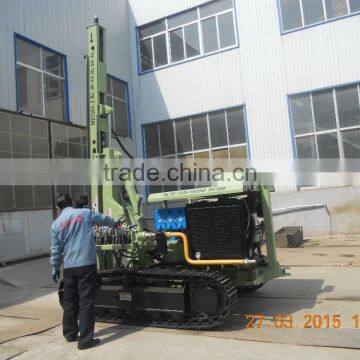

small pile drilling rig MZ130Y-2
MZ130Y-2 hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. MZ130Y drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency .
The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc. The Technical parameters as follow:
Technical parameters
Air pressure (Mpa) |
0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
Air consumption (m3/min) |
10-26 |
Bore diameter(hammer) (mm) |
90-300mm |
Bore depth (m) |
20-100 |
Once promotion(mm) |
2000 |
Screw pipe diameter (mm) |
76/89 |
For rock |
F=6-20 |
Bore diameter(screw)(mm) |
Max 400mm |
Skid pitch(.) |
100 |
Swinging angle of skid(.) |
Left and right total 40° |
Bore depth(m) |
0-30 |
Screw pipe diameter(mm) |
130-400 |
Rotation speed<=""> |
0-70 |
Host power(kw) |
56 |
Climb ability(.) |
35 |
Walk speed(kw/h) |
0-2.5 |
weight(Kg) |
4360 |
Dimension(L*W*H)mm |
4460*1950*2460 |
