CTQ-Z138YA Hydraulic Soil Nailing /slope Protect Drilling Rig

FOB Price

US$ 10,000 - 25,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other
Power Type	Diesel	Place of Origin	Shandong, China
Brand Name	longye	Model Number	CTQ-Z138Y
Usage	Ore	Voltage	220v
Power(W)	45kw	Dimension(LWH)	520019502300
Weight	4170KG	Certification	CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

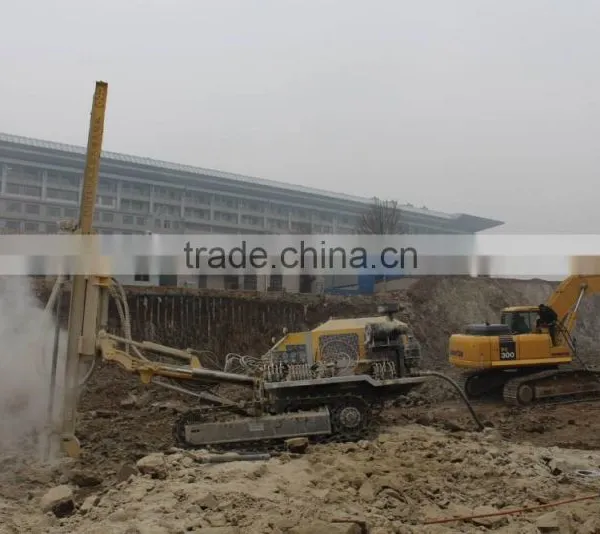

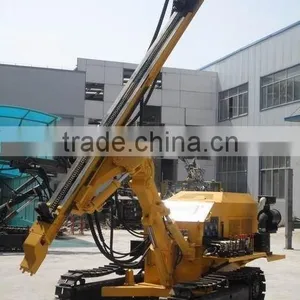

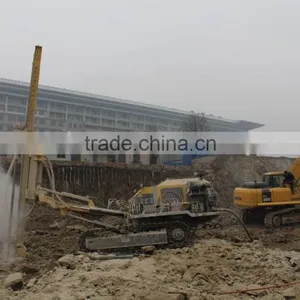

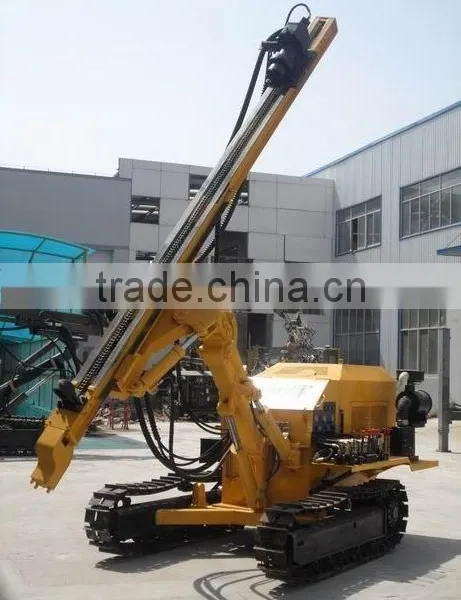

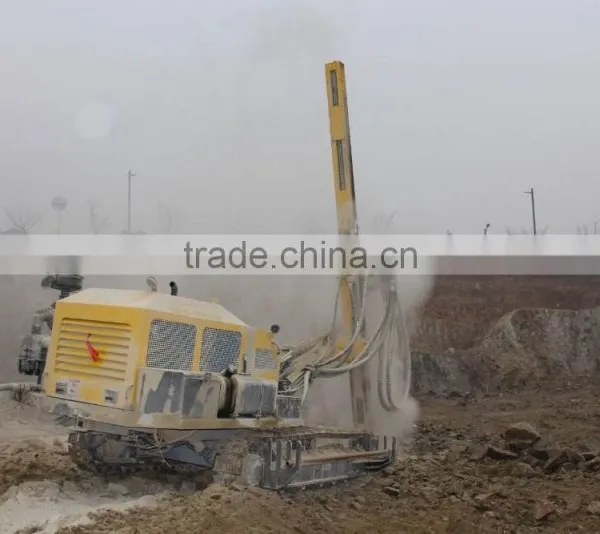

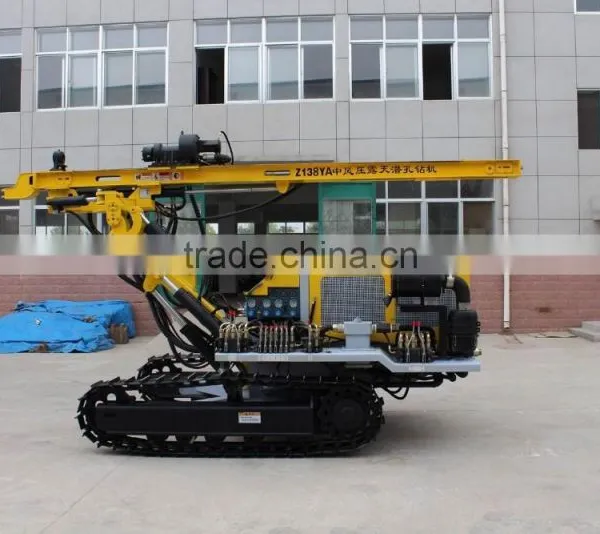

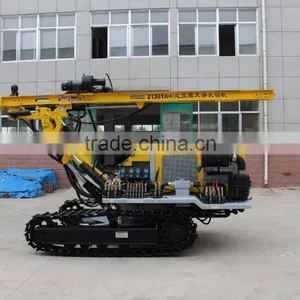

CTQ-Z138YA hydraulic soil nailing /slope protect drilling rig

CTQ-Z138YA type crawler quarry drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift hole easy The drilling rig compact structure, while promoting a retractable sliding shelf compensation, drilling when the sliding frame support on the ground, drilling and good stability. Use Z138 rig reliable Chazzan efficient drilling in hard rock drilling rig as fast as 2 times the low air pressure is the construction unit cost efficiency gains strong support.

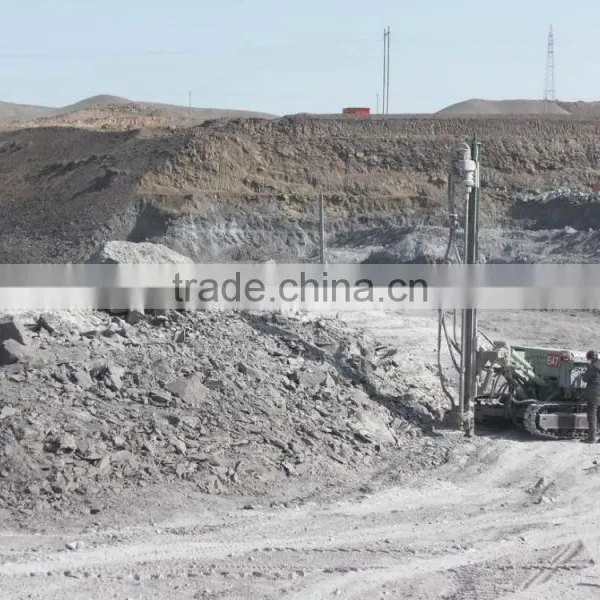

The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.

Main technical parameters of CTQ—Z138Y
Wind pressure (Mpa)	0.7----1.6
Air consumption (m³/min)	10----15
Drilling diameter (mm)	90----130((max:203)
Drilling depth (m)	level 40m,down 80m
Once promotion distance (mm)	3000
Drill diameter (mm)	60
Skid compensation (mm)	900
Maximum lift force (N)	24900
Skid pitch (°)	up and down total 95
Swinging angle of skid (°)	Left 38, right 31
Boom Pitch (°)	up and down total 70
Boom swing angle (°)	Left 41, right 33
Grade ability (°)	30
Chassis ground clearance (mm)	260
Travelling speed (km/h)	2
Back to the transit speed (r/min)	0----80
Rotary torque (N.m)	2000
Host Power (Kw)	45
For rock (f)	6----20
Impact frequency (r/min)	950---1500
Total Weight (kg)	3800
Dimension (L * W * H)	520020302300

Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
