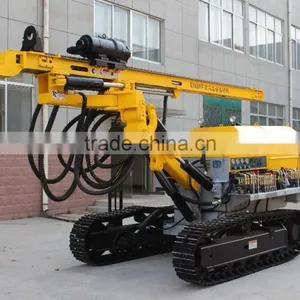

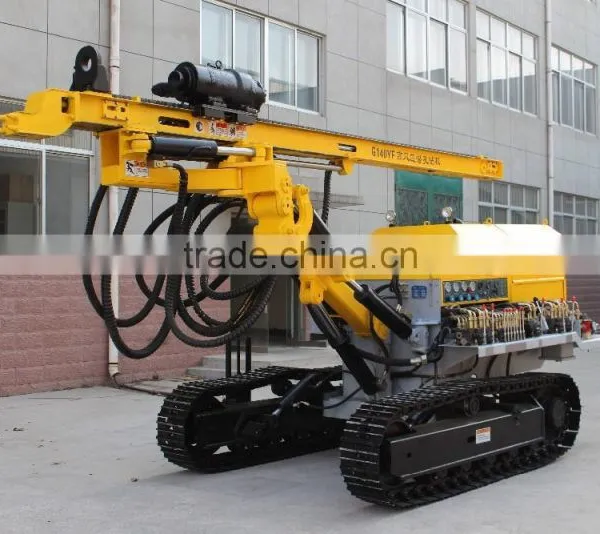

longye brand diesel power down-hole hammer hydraulic rotary rock drill G140YF
- 120 Set / Sets per Month
- QingDao Port or as your requirement
- T/T
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Place of Origin: | Shandong, China | Brand Name: | LongYe Brand | Model Number: | CTQ-G140YF |
| Usage: | Other, engineering blast; mining exploitation,etc | Voltage: | 24v | Power(W): | 56000 |
| Dimension(L*W*H): | 5270*1960*2300 (mm) | Weight: | 4800kg | Certification: | CE |
| Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
superiority:
1. excellent steel quality of products
2. supply wearing parts for free
3.our crawler hydraulic drilling rig suitable formountainous and muddy pavement.
4.the YuChai Brand diesel engine life is very long
5. the pump desigh , can save the maintenance cost
6. The work efficiency is very high .
7. Large hydraulic oil design,also separated controllable, meanwhile guarantee stability during fieldwork.

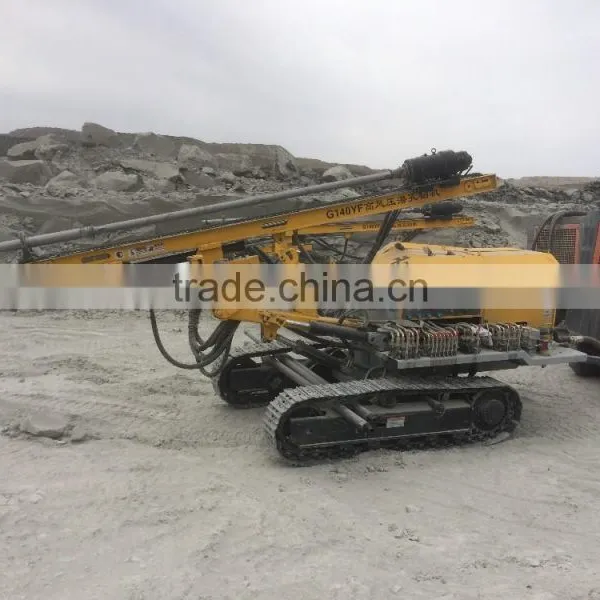

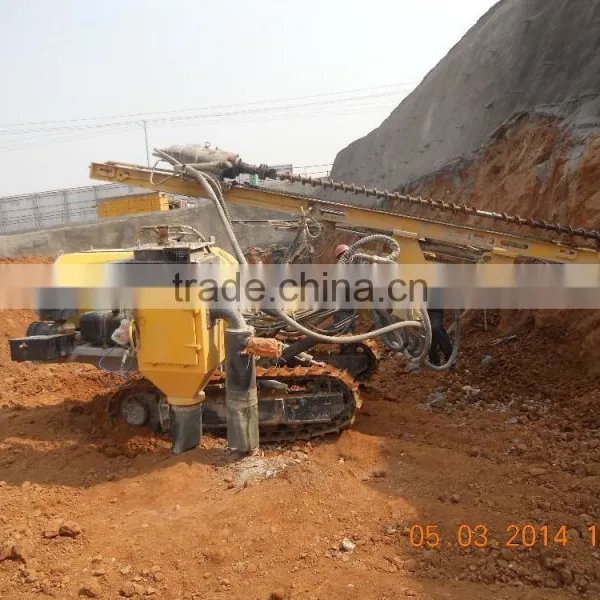

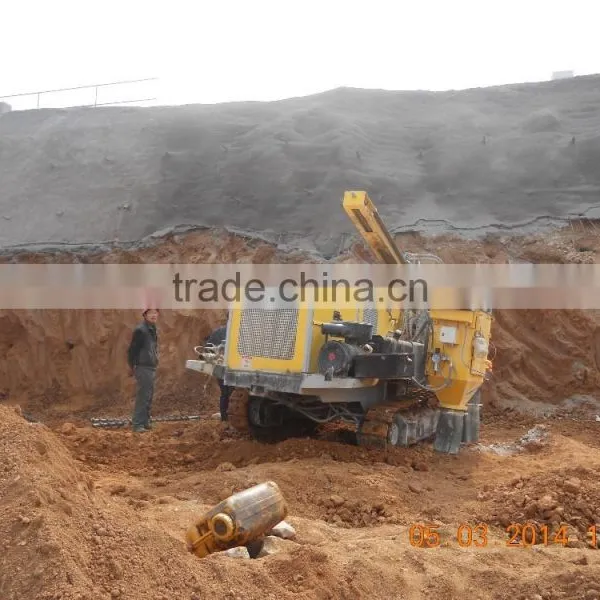

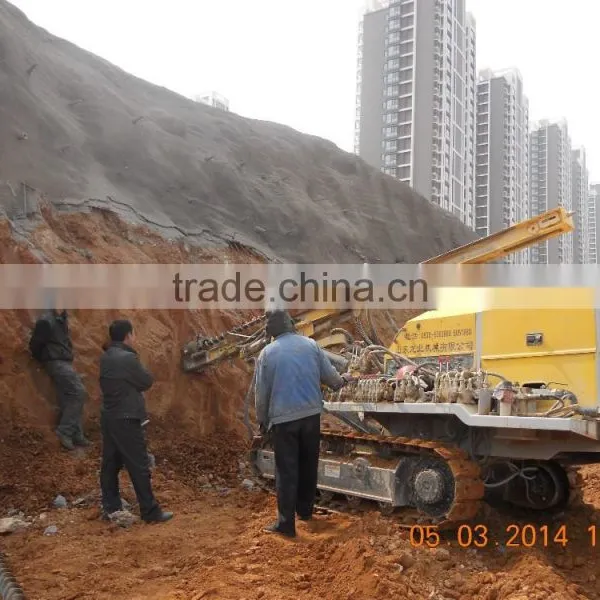

CTQ-G140YF High Air Pressure DTH crawler drilling rig with a low energy consumption, high efficiency , easy to transport . The drilling rig controllerd by hydraulic systems,only DTH hammer consume air, it saves purchase cost of a complete cost of equipment, The Rotary system adopt a new motor,in order to maintain large output of rotary torque, when dragging air compressor, it is mobile and flexible,strong climbing ability, suitable for rugged ground operations. This rig has high drilling efficiency, easy Maintenance, high reliability, better use for mining, highway,water conservancy, power station construction and other blasting hole projects.
Air pressure(Mpa) | 1.05-2.46 |
Air consumption (m3/min) | 10-20 |
Bore diameter (mm) | 115-140 |
Bore depth (m) | 60 |
Once promotion(mm) | 3000 |
Walk speed (kw/h) | 0-2.5 |
For rock | F=6-20 |
Host power(kw) | 56 |
Skid pitch(.) | up and down total 100 |
Skid swing angle(.) | up and down total 100 |
Boom pitch(.) | Left and right total 60 |
Boom swing angle(.) | Left and right total 70 |
Rotation speed(r/min) | 0-126 |
weight(Kg) | 4800 |
Dimension(L*W*H) (mm) | 5270*1960*2300 |
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.
