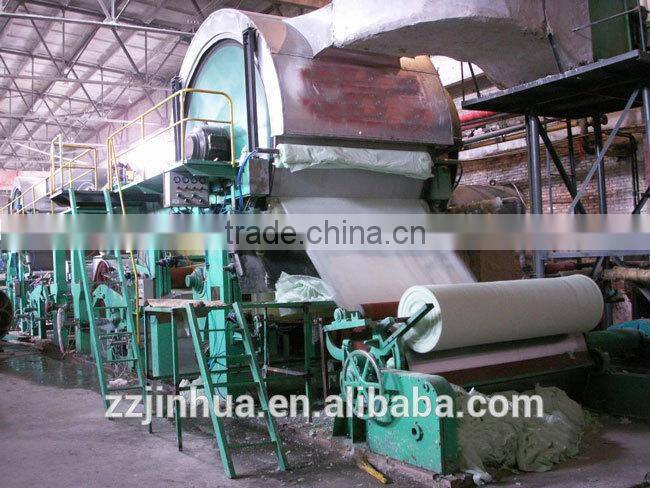

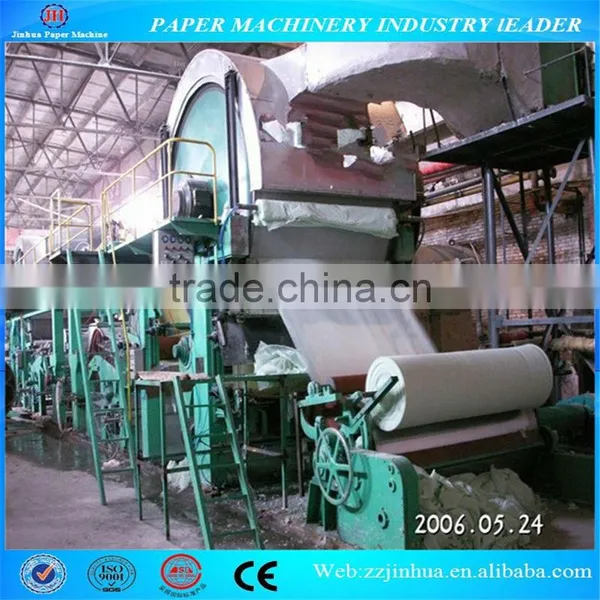

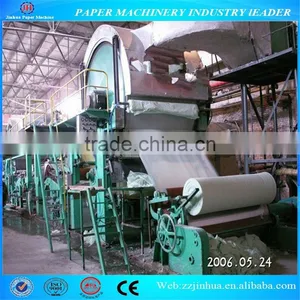

Facial Paper Machine in China 1880mm Single-cylinder and Single-wire Tissue Paper Machine

Technical data:

Raw material: recycled paper,wood pulpboard

Output paper: High & medium grade of toilet paper

Output weight: 13—30g/m²

Net width:  1880mm

Wire width: 2250mm

Capacity:5-6T/D

Rail guage:3000mm

Speed :150m/min;

Design type: Box type, Back – stirring type

Design Standards: CNS Export equipment

Main structure:

1. cylinder part: 1500mm×2250mm stainless steel wire mould(1pc), Cylinder

mould pressure forming machine (1 set),450mm×2250mm couch roll(1 pc),

rubber HSD38°±2

2. Dryer part: 2500mm×2250mm Dryer ( 1 pc ), 500mm×2250mm

carrier roller( 1 pc ), 300mm×2250mm wringing roll(2 pcs),including

all the felt carrying rolls,air-powered

pressure device,rubber HSD 90°±2, equiped with double-layer exhaust bood

on the dryer.

3.Winding part:1000mm×2250mm sweat cylinder (1pc),280mm×2250mm

fly rubber roll( 1pc ).rubber HSD75°±2. winding on the sweat cylinder.

Equipped with the 250 speed reducer(1 set)

4. Rewinding and cutting part: matching 1880mm rewinding and

perforating machine,toilet roll cutting machine..

5. Drive and control part: adopting AC frequency conversion speed,

drive step by step.

 All the accessory equipment

Pre-sales service

customers find the right product by professional technology and

business consultation

vide plans of the machines installation freely

uld make customized products according to the clients requirements

After-sales service

1.highly inspecting equipments in each working procedure ,quality comes first

2.fast and saft delivery

3.assisting our clients to bulid the equipment

4.dispatching engineers to install and debug equipments

5.training the first-line operators on site

6.regularly visit clients to solve production problems

viding lifetime maintenance service

viding technical exchanging and updating
