1092mm Corrugated Paper Board Paper Making Machine

Corrugated paper board paper making machine

 Technical Parameter:

1. Raw material: Recycled Paper, Old Corrugation Box, Paper pulp

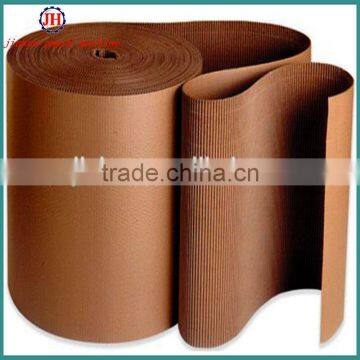

2. Output paper: kraft paper, corrugated paper

3. Output weight: 80-160GSM

4. Net paper width:1092mm

5. Wire width:1450mm

6. Rail guage:1800mm

7. Design speed: 80m/min

8. Work speed: 40-60m/min

9.  Capacity: 5 T/D

10. Driving type: use AC frequency conversion,and driving by step

11. Machine design: squaring box type, including left and right hand machine, high speed running in safe and safety environment.

12. Dryer: Wire-releasing part: ≥18-24%

          Squeezing-mill releasing part: ≥38-40%

          Manufactured paper dryness: 90-92%

13. Calculated running speed in a day: 22.5 hours

14. Calculated outputting rate: 97%

15. Calculated finished product rate: 95%

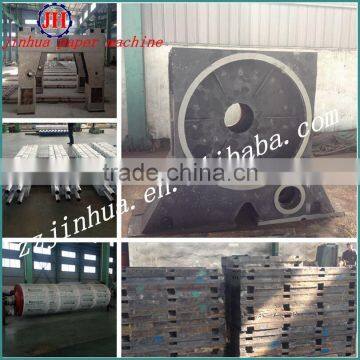

The main structure:

1.Cylinder part: 2 stainless-steel cylinder(Φ1250mm×1450mm)..2 couch roll, Φ400mm×1450mm,  1 reverse roll,Φ400mm×1450mm. rubber hardness HS-38°±2.

2. Pressing part: 1 Natural marble roller(Φ450mm×1450mm).1 rubber roll(Φ400mm×1450mm). rubber hardness HS-90°±2, Pneumatic compression device.

3. Dryerpart: 2 alloy drying cylinder (Φ1500mm×1450mm), 1 touch roll, Φ450mm×1450mm.rubber hardness HS-90°±2,Pneumatic compression device.

4.Winding part: 1092mm cylinder paper winding machine and paper rewinding machine.

5. Driving and controlling part: using of AC frequency conversion, and driving by step.

Paper recycling&paper making:

Pre-sales service

customers find the right product by professional technology and business consultation

vide plans of the machines installation freely

uld make customized products according to the clients requirements

After-sales service

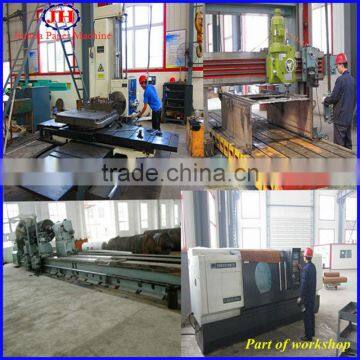

1.highly inspecting equipments in each working procedure ,quality comes first

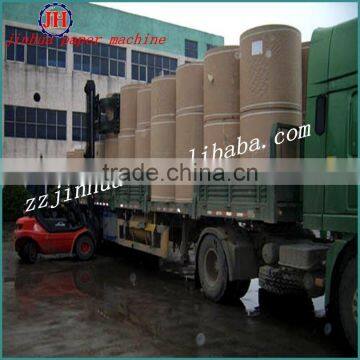

2.fast and saft delivery

3.assisting our clients to bulid the equipment

4.dispatching engineers to install and debug equipments

5.training the first-line operators on site

6.regularly visit clients to solve production problems

viding lifetime maintenance service

viding technical exchanging and updating
