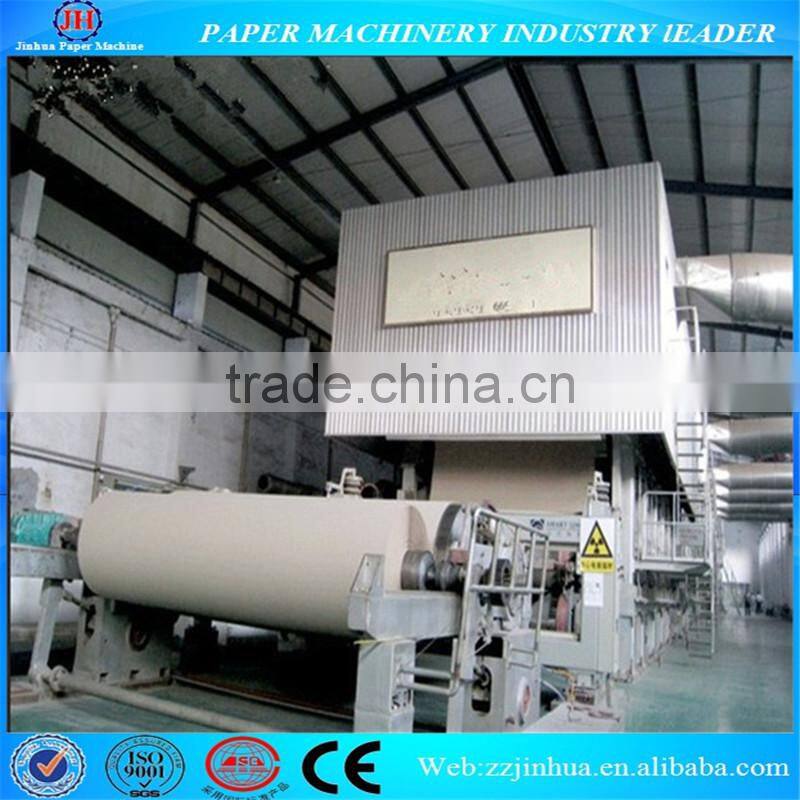

machine to make corrugated paper
Technical data | |
Raw material | All kinds of waste paper(waste carton). |
Output paper | Paper board, kraft board. |
Net width | 1575mm |
Wire width | 1950mm |
Capacity | 10-15T/D |
Speed | 80-120m/min |
Rail gauge | 2400mm |
Drive way | AC converter, adjustable speed .Processing transmission |
Main frame of the equipment
Part name | Equipment | Specification | Quantity |
Mesh cylinder Part

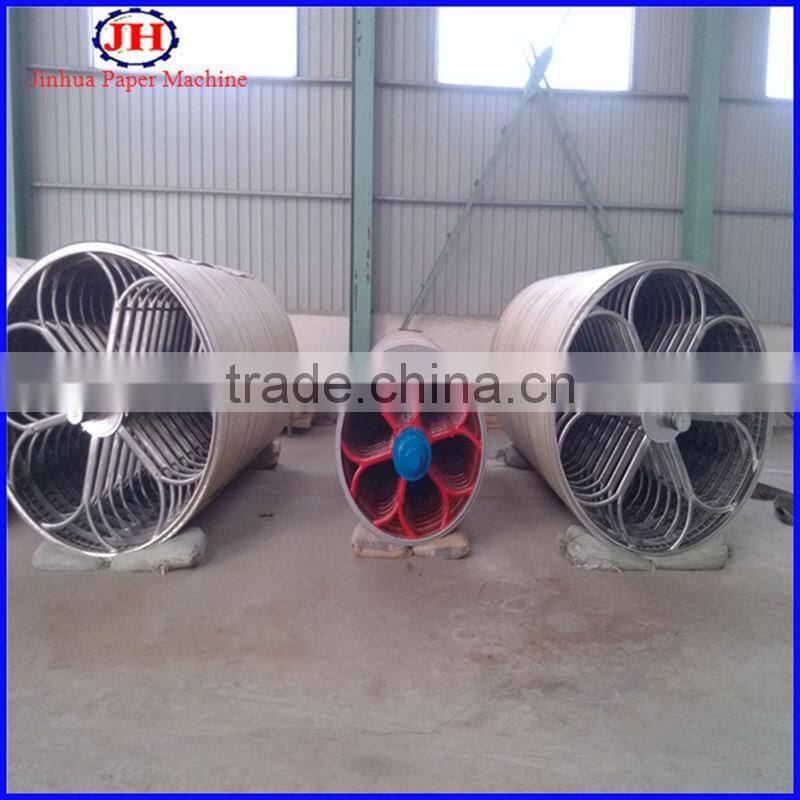

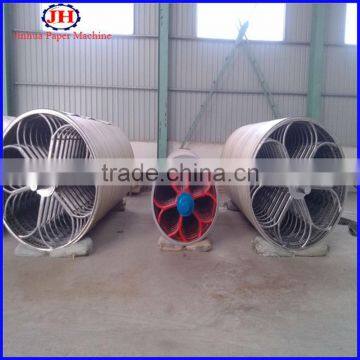

| cylinder mould (stainless steel) | 1250×1950mm | 2 |
couch press | 400mm×1950mm | 2 | |
reverse press | 400mm×1950mm | 1 | |
Shore hardness | 38o±2 | ||
Press part | stone roll | 500×1950mm | 1 |
rubber roll | 450×1950mm | 1 | |
Shore hardness is 90o±2, pneumatic loaded equipment . | |||
Dryer part | dryer can | 2500mm×1950mm | 2 |
touch roll | 450mm×1950mm | 1 | |
riding roll | 400mm×1950mm | 1 | |
Pneumatic loaded equipment, and the second dryer is equipped with dry wire | |||
Winger roll | casting iron roll | 260mm×1950mm | 1 |
top rubber roll | 1 | ||
Mechanical pressure equipment | |||
Felt roll | felt roll | 159mm×1950mm | 28 |
If you provide the raw material, you will get various kinds of papers. The raw material is range from straw pulp, recycled paper; wood, to bamboo, bagasse. So you can also make good use of resources, getting good benefits from it.
All the equipments are packed with wooden boxes and straw.
1.Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
2. After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery; multi-cylinder
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
