1092mm Double-cylinder and double-mesh paper machine,corrugated paper making machine
- 10 Set / Sets per Month
- Qingdao port
- T/T
Product Details
Condition: | New | Type: | Other, paper making machine | Computerized: | No |
Place of Origin: | Henan, China | Brand Name: | Ginhua machinery | Model Number: | 1092 |
Voltage: | 380 | Certification: | ISO | Warranty: | 12months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
robe straw ,wooden case or as your request
Product Description

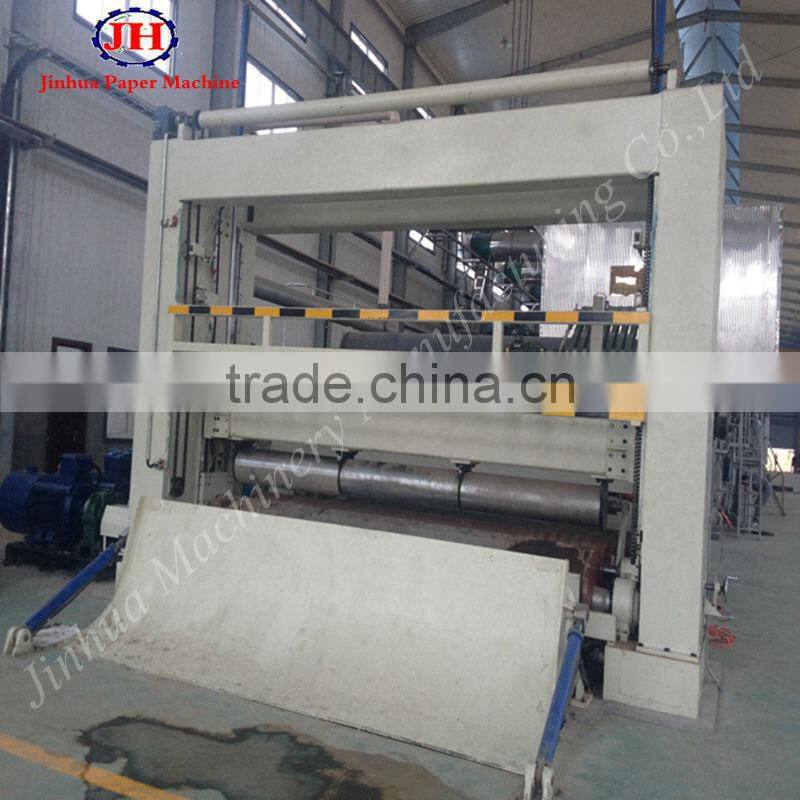

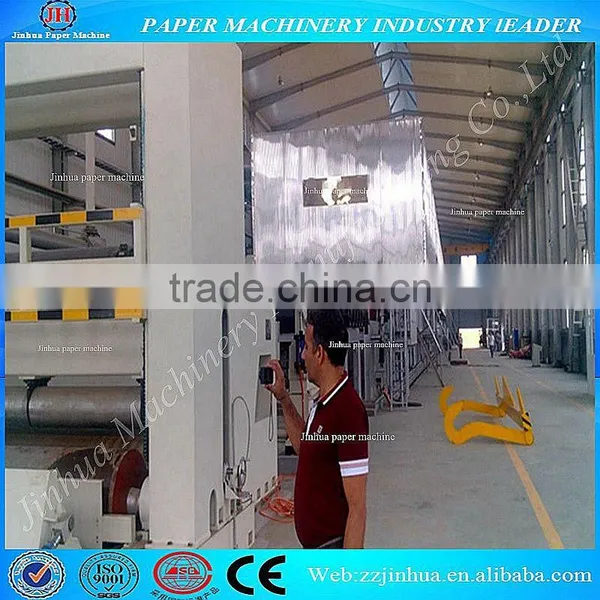

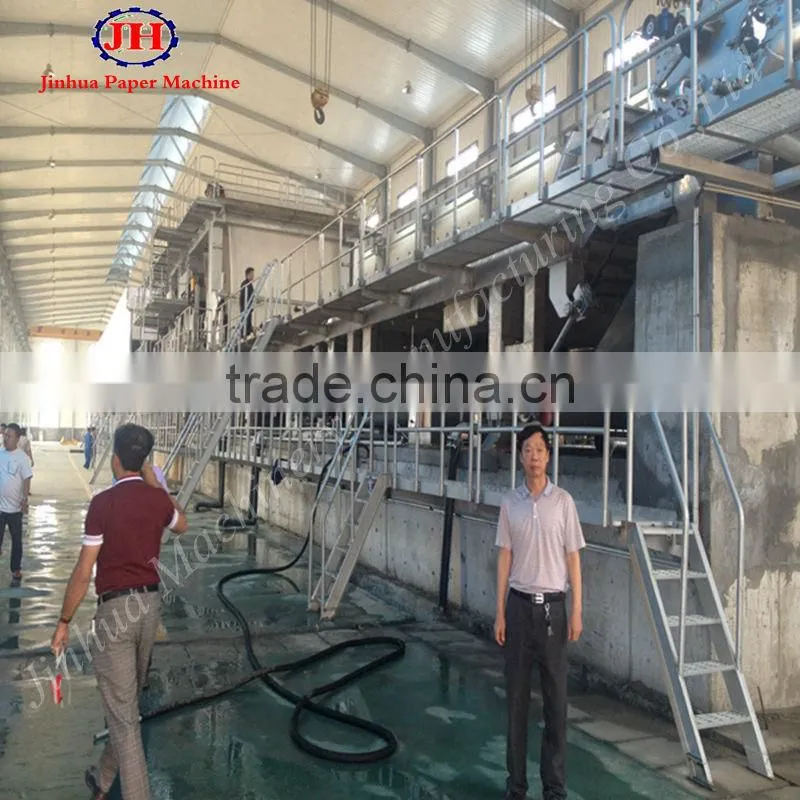

1092mm Double-cylinder and double-mesh paper machine
Part name | Equipment | Specification | Qty |
Mesh cylinder part | cylinder mould | 1250mm×1450mmmm | 2 |
couch roll | 400mm×1450mm | 2 | |
Reverse roll | 400mm×1450mm | 1 | |
Shore hardness is 38o±2, mechanical loaded equipment . | |||
Dryer part | dryer can | 1500mm×1450mm | 2 |
touch roll | 400mm×1450mm | 1 | |
Shore hardness is 90o±2, pneumatic loaded. | |||
Reverse pressing roll | 350mm×1450mm | 1 | |
Shore hardness is 90o±2, mechanical loaded. | |||
Press part | top marble roll | 400mm×1450mm | 1 |
| bottom marble roll | 400mm×1450mm | 1 |
Pneumatic loaded device. | |||
Structure of frame | Trough type, its material is cast iron. |

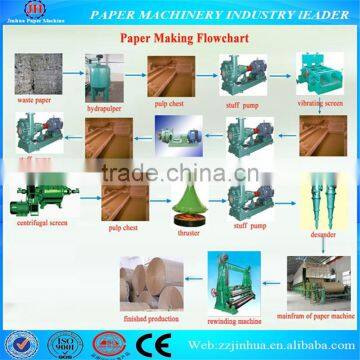

All the accessory equipment lists ):
| Equipment | Quantity (SET) |
1 |
Straw cutter | one set |
2 |
Dust remover | one set |
3 | prepreg machine | one set |
4 | conveyor | one set |
5 | 14 m3steamed ball | three sets |
6 | spraying storehouse | one set |
7 | Rough grinding machine | one set |
8 | φ380 refiner | two sets |
9 | press master | one set |
10 | 4 inch pulp pump | three sets |
11 | pulp-washing pump | one set |
12 | desander | one group |
13 |
Vertical agitator |
2 sets |
14 | 1092mm double-cylinder& three –wire paper machine | 1 set |
15 | Exhaust hood of the dryer can | 1 set |
16 | Screw type ventilator | 1 set |
17 | 13Type Vacuum pump | 1 set |
18 | suction box | 3 sets |
19 |
1092mm Winding machine |
1 set |
20 | 1092Rewinding machine | 1 set |
21 | The whole set of work bench | 1 suit |
22 | 2T boiler(coal) | 1 set |
pre-sales service
customers find the right product by professional technology and business consultation
2. Could make customized products according to the clients requirements
3. Provide free installation services
After-sales service
1.highly inspecting equipments in each working procedure ,make sure the quality comes first
2. fast and safty delivery
3. .assisting our clients to bulid the equipment
4. dispatching engineers to install and debug equipments
5. training the first-line operators on site
6. regularly visit clients to solve production problems
Company Profile
Gongyi Jinhua Machinery Manufacturing Co., Ltd. is a joint venture which mainly produces complete equipment of equipment of pulping and paper machine complete equipment,waste recycling plant,shredder machine,crusher machine,agricultural drying machine .
Our company is located in China's transportation hub in Zhengzhou city, founded in 1980. The production facility covers an area of 8,600 square meters with a construction area of 20,800 square meters. With the management idea of sincerity, after thirty years of continuous development and strength, now we employ over 500 full time staff members with more than 100 professional technicians. We also employ 50 staff members who are translators, salespersons, electronic commerce persons. Our company is an integrated industrial enterprise of scientific research, product development, manufacturing and sale.
Our company has modern management systems, advanced manufacturing technology, complete testing methods, a large number of excellent processing equipment and high-quality skilled workers. All products pass ISO9001:2008 international quality authentication. Our products are sold throughout the world, including Canada,America,South America,Gremany,France,England, Southeast Asia, Bangladesh, Indonesia, Pakistan, Egypt, Syria, Mexico, Nigeria, Russia, etc. Our company wins customers' trust and recognition widely with integrity, pragmatism, refinement development and eternal commitment.
Our company offers an exceptional service team of sale and technology, who offers program and craft process design, technical training and so on. We also offer service of pre-sales, in-sales and after-sales.
