480 CCD Camera Gum Color Sorter for Rice Processing, Split Color Sorting Machine

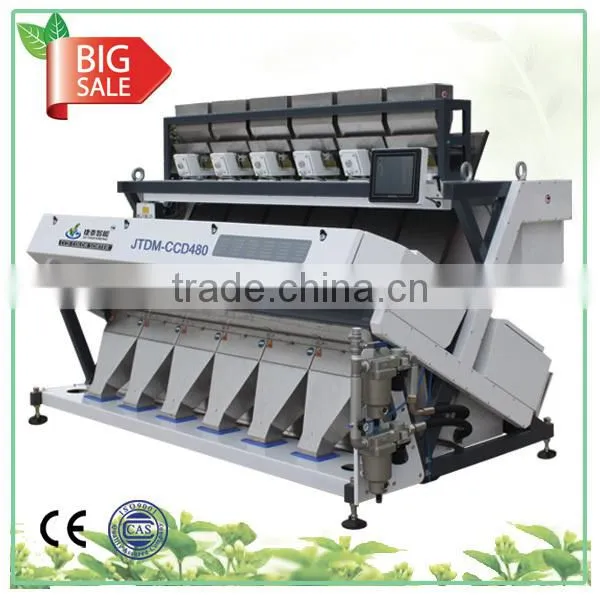

480 CCD Camera Gum Color Sorter for Rice Processing, Split Color Sorting Machine photo-1
US$ 20,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Jietaizhineng
Model Number:
JTDM-CCD 480
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Anhui, China
Brand Name Jietaizhineng
Model Number JTDM-CCD 480
Type Grain Processing Equipment
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Name:CCD Color Sorting Machine
Brand: JIETAI
Valve: SMC,JIETAI
CCD Sensor :Toshiba Japan
Micro Chip CUP : ALTERA America

480 CCD Camera Gum Color Sorter for Rice Processing, Split Color Sorting Machine

480 CCD Camera Gum Color Sorter for Rice Processing,  Split Color Sorting Machine

1. The Color Sorter uses 2048 high-performance CCD image sensor with resolution up to 0.04mm2, to perceive the tiny color difference of material.
2.The Sorter adopts high quality special industrial lens,its working parameters according to the various materials color requirements, and optimize the optical path design, to ensure the each size has a perfect image on the image sensor.
3.The high speed DSP Digital image processing technology provides the sorter with fast detection and high identification rate.
4.According to the spectra characteristics and identification of characteristics of rice.specifically design flexibility and robustness of both special grain detection algorithm start from the spectra analysis to meet slight color detection to improve robustness, to avoid interference with other factors of material surface.

480 CCD Camera Gum Color Sorter for Rice Processing, Split Color Sorting Machine



Model

JTDM-CCD160

JTDM-CCD240

JTDM-CCD320

JTDM-CCD400

JTDM-CCD480

Throughput(T/H)

1.5~3

3~8

4~11

6~13

7~15

Channels

160

240

320

400

480

Chutes

2

3

4

5

6

Light Source

Led Light

Led Light

Led Light

Led Light

Led Light

Pixel of Camera

2048

2048

2048

2048

2048

Color Sorting Accuracy

99.99%

99.99%

99.99%

99.99%

99.99%

Carryover rate

10:1

10:1

10:1

10:1

10:1

Power(KW)

0.8-2

1.0~2.5

1.2~3.0

1.4~3.5

1.6~4.0

Air pressure(Mpa)

0.6

0.6

0.6

0.6

0.6

Voltage(v)

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ

Air consumption (L/min)

800-1300

1000-1800

1200-2500

1500-3000

1800-3600

Weight(kg)

700

900

1100

1300

1500

Diamension(mm)L*W*H

1674* 1520*1800

1674* 1520*1800

1983*1520*1800

2319*1520*1800

2655*1520*1800

Package

wooden case

wooden case

wooden case

wooden case

wooden case

 Note : The above impurities is around 2% . The Specific parameters will be different based on the raw material and impurities
