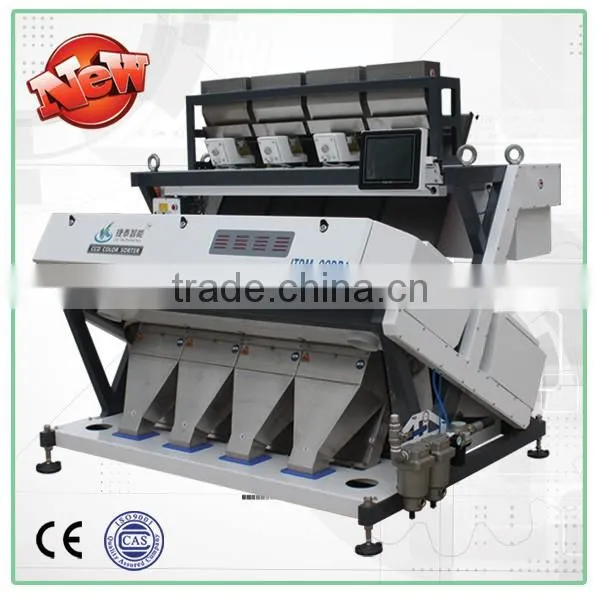

Auto fault-alarming Rice color sorter machine , Modular Structure To Easy Maintain
1.162 Led light is the most advanced in china .A variety of light sources are optional to suit different materials.
2.Our interface operation is Multilingual .Super 10 inch screen is more flexible in touch and quick in operation. Many setting modes to meet the demand for the more color sorting algorithm.
3.Clean,dry and oil-free air is most important for color sorter’s sorting accuracy and lifetime.And there are two filters for one set,The dirty air will be filtrate by the first one,the second filter will filtrate the clean,dry,oil-free air refined again.
4.The sorter is able to provide double-side detection and has various working modes to meet requirements of various materials thus has common applicability, high sorting precision and low carryover rate.
Model |
JTDM-CCD3R |
JTDM-CCD4R |
JTDM-CCD5R |
JTDM-CCD6R |
Output (Ton/hr) |
4-7 |
5-11 |
7-12 |
10-15 |
Channels (big/small) |
64/192 |
64/256 |
64/320 |
64/384 |
Ejectors |
192 |
256 |
320 |
384 |
Light source |
LED light |
LED light |
LED light |
LED light |
Pixel of camera |
5000*3 |
5000*3 |
5000*3 |
5000*3 |
Color sorting accuracy |
>99.99% |
>99.99% |
>99.99% |
>99.99% |
Carryover rate |
>10:1 |
>10:1 |
>10:1 |
>10:1 |
Host power |
1.0-2.5 |
1.2-3.0 |
1.4-3.5 |
1.6-4.0 |
Air pressure |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
Air consumption (L/min) |
1000-1800 |
1200-2500 |
1500-3000 |
1800-3600 |
Power supply |
220V/50HZ |
220V/50HZ |
220V/50HZ |
220V/50HZ |
Machine weight (kg) |
900 |
1100 |
1300 |
1500 |
Package |
wooden case |
wooden case |
wooden case |
wooden case |
TAG:Color Sorting Machines, Color Sorter,CCD Sorter Machine
