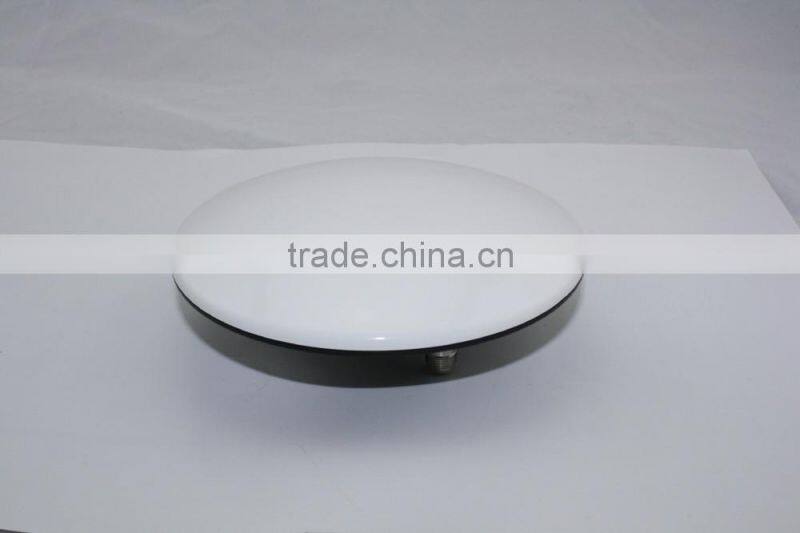

Gnss Survey Antenna HX-GS282A With High Accuracy
US$ 100 - 350
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
SunNav
Model Number:
HX-GS282A, HX-GS282A
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang TJ
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Accuracy Gnss Survey Antenna HX-GS282AUS$ 199 - 379MOQ: 1 Unit -
GPS Antenna HX-GS481AUS$ 250 - 299MOQ: 1 Unit
-
High Precision GPS Antenna HX-GS481AUS$ 250 - 299MOQ: 1 Unit
-
Gps Module Antenna HX-GS282AUS$ 200 - 318MOQ: 1 Unit
-
GPS Antenna HX-GS481A for High Precision SurveyingUS$ 300 - 400MOQ: 1 Unit
Place of Origin
Tianjin, China
Brand Name
SunNav
Model Number
HX-GS282A, HX-GS282A
Product Description
Specifacations of HX-GS282A
| Survey Antenna HX-GS282A | |||
| Antenna Specification |
Frequency Range: GPS L1, GLONASS L1 | ||
| Impedance: 50 Ohm | |||
| Polarization: RHCP | |||
| Axial Ratio: ≤ 3 dB | |||
| Azimuth Coverage: 360° | |||
| Output VSWR: ≤ 1.5 | |||
| Gain at Zenith: ≥ 5 dBi | |||
| Phase Center Error: ± 2 mm | |||
| LNA Specification |
LNA Gain: 40 dB | ||
| Noise Figure: ≤ 2.0 dB | |||
| Output VSWR: ≤ 2.0 | |||
| Ripple: ± 2dB | |||
| Drain Voltage: 3--18 VDC | |||
| Current Consumption: ≤ 45 mA | |||
| Group Delay: / | |||
| Mechanical Specification |
Dimension: φ190 x 67.4 mm | ||
| Connector: TNC Female | |||
| Weight: 560g | |||
| Environmental Specification |
Operating Temperature: -40°C to +85°C | ||
| Storage Temperature: -55°C to +85°C | |||
| Humidity: 95% Non-Condensing | |||
Functions
Detailed Images
Company Information
SunNav Technology Co., Ltd. is a high-tech enterprise that specializes in researching and manufacturing high-precision GNSS motherboard and industrial GNSS products.
Our aim is to provide the high-quality and high-security GNSS products and services.
We have an experienced core technology R&D team, who has been unremitting efforts to research and develop the new GPS and GNSS technologies.
Packaging & Shipping
According to the size, volume of products,using standard packaging.
Via international express (DHL, Fedex, UPS, TNT)are all available.It can be fast for you to transport the goods in your hands.
