Home > Instruments & Meters > Test Instrument > Test Machine > High Accuracy Gnss Survey Antenna HX-GS282A
US$ 199 - 379
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
SunNav
Model Number:
HX-GS282A, HX-GS282A
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang TJ
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GPS Antenna HX-GS481AUS$ 250 - 299MOQ: 1 Unit -
High Precision GPS Antenna HX-GS481AUS$ 250 - 299MOQ: 1 Unit
-
Gps Module Antenna HX-GS282AUS$ 200 - 318MOQ: 1 Unit
-
GPS Antenna HX-GS481A for High Precision SurveyingUS$ 300 - 400MOQ: 1 Unit
-
GPS Choke Ring Antenna HX-GG481AUS$ 200 - 399MOQ: 1 Unit
Place of Origin
Tianjin, China
Brand Name
SunNav
Model Number
HX-GS282A, HX-GS282A
Product Description
Specifications of HX-GS282A
| Survey Antenna HX-GS282A | |||
| Antenna Specification | Frequency Range: GPS L1, GLONASS L1 | ||
| Impedance: 50 Ohm | |||
| Polarization: RHCP | |||
| Axial Ratio: ≤ 3 dB | |||
| Azimuth Coverage: 360° | |||
| Output VSWR: ≤ 1.5 | |||
| Gain at Zenith: ≥ 5 dBi | |||
| Phase Center Error: ± 2 mm | |||
| LNA Specification | LNA Gain: 40 dB | ||
| Noise Figure: ≤ 2.0 dB | |||
| Output VSWR: ≤ 2.0 | |||
| Ripple: ± 2dB | |||
| Drain Voltage: 3--18 VDC | |||
| Current Consumption: ≤ 45 mA | |||
| Group Delay: / | |||
| Mechanical Specification | Dimension: φ190 x 67.4 mm | ||
| Connector: TNC Female | |||
| Weight: 560g | |||
| Environmental Specification | Operating Temperature: -40°C to +85°C | ||
| Storage Temperature: -55°C to +85°C | |||
| Humidity: 95% Non-Condensing | |||

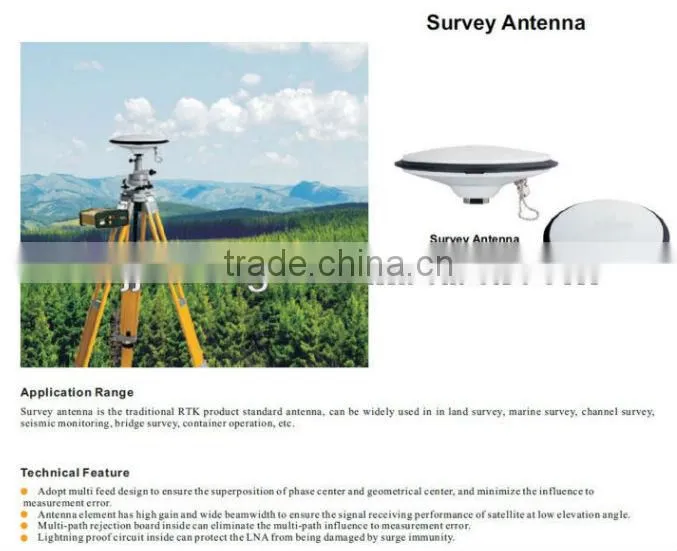

Detailed Images
