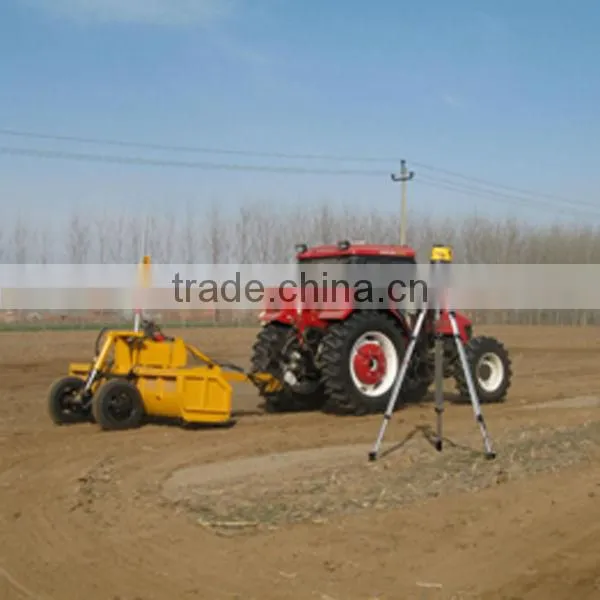

Agriculture (AG 908)

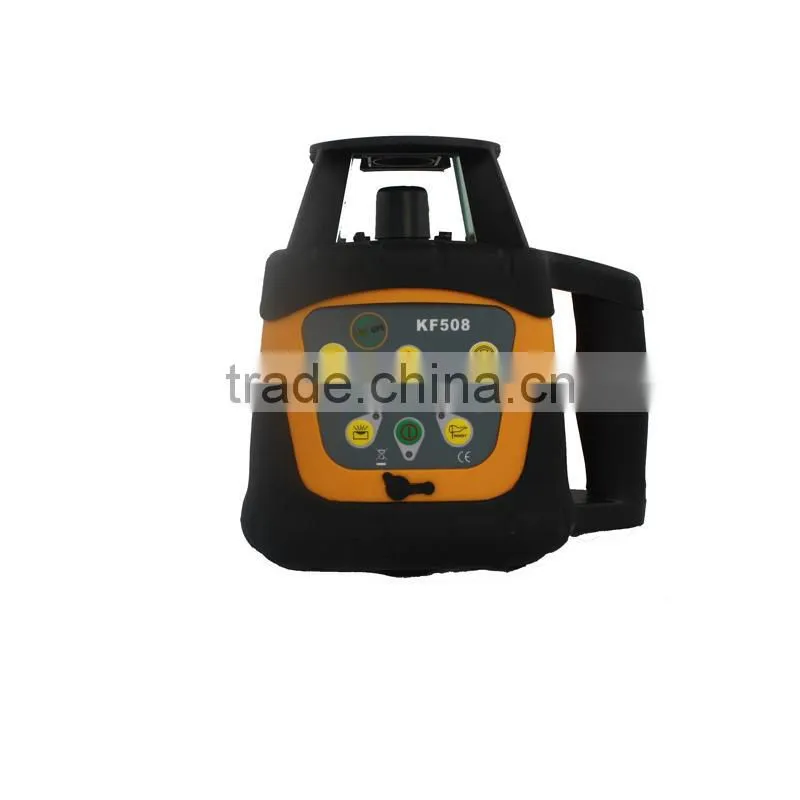

1. Laser Transmitter KF-508

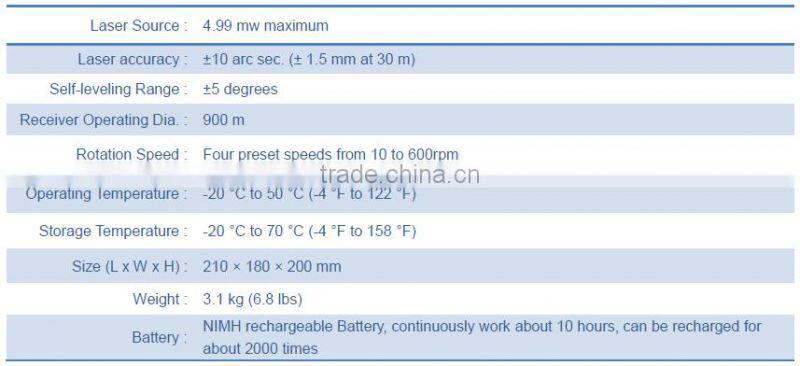

Laser Source :
4.99 mw maximum Laser accuracy : ±10 arc sec. (± 1.5 mm at 30 m)
Self-leveling Range :
±5 degrees Receiver Operating Dia. : 900 m
Rotation Speed :
Four preset speeds from 10 to 600rpm Operating Temperature : -20 °C to 50 °C (-4 °F to 122 °F)
Storage Temperature :
-20 °C to 70 °C (-4 °F to 158 °F) Size (L x W x H) : 210 × 180 × 200 mm
Weight :
3.1 kg (6.8 lbs) Battery : NIMH rechargeable Battery, continuously work about 10 hours, can be recharged for about 2000 times
Features
1. Highly visible beam
2. Automatic Self-Leveling
3. Intuitive one-touch operator controls
4. One-person operation reduces labor costs
5. Automatic compensation for level and plumb
6. Temperature Calibrated, high accuracy for consistent performance across larger job sites
7. Multiple power option, NIMH rechargeable Batteries, direct power or alkaline batteries for reduces downtime
8. Fast setup, minimal training time, and automatic Self-Leveling minimizes operating costs and boosts productivity
9. Rugged, durable, Light weight Eye Receiver HR 350 makes fill simpler

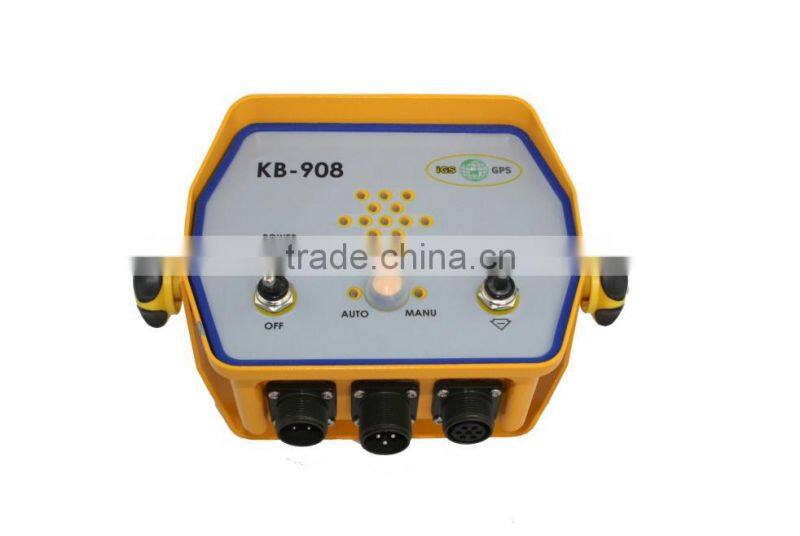

2. Control Box KB-908
Features (Control Box KB-908)
1. IGS KB908 is rugged, operator interface for single Laser-Based control systems. This is simple to setup and use.
2. This device is design to be installed in the cab while in operation, and be quickly removed for storage when not in use.
3. Control Box allows the user to manually control the elevation of blade, for balancing or rough grading using the LCD indicator or to automatically control the blade for fine grading.
4. The IGS KB908 features PT valve control for a smooth and quick corrections making more consistent and accurate finish grade. It can be easily moved from the machine to machine.

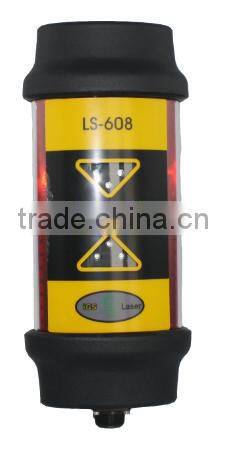

3. Laser Receiver LS-608
Features (LS-608)
1. Works with both the GCS300 and GCS400
2. Optional three foot and four foot electric mast capability
3. LED set up lights
4. Rugged design; 100% weatherproof
5. Auto detection and connection to PA control systems

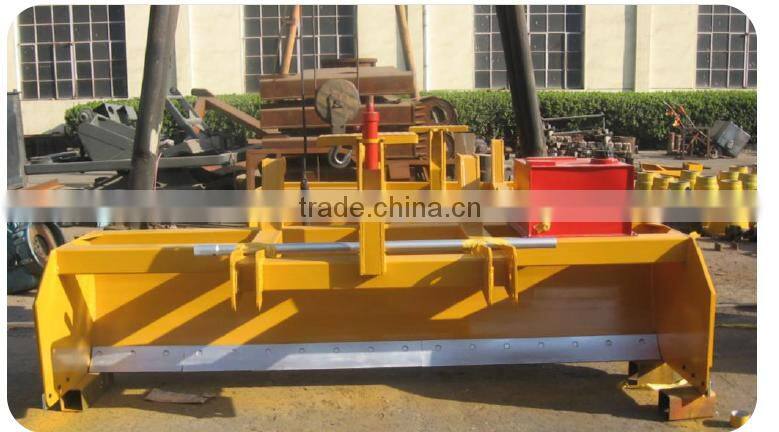

4.Scaper
Bucket: Thickness: 10 mm ; Weight: 1300 kg ; Height: 70 cm ; Width: 300 cm ; Depth: 102 cm
Drawbar: Length: 178 cm ; Top-Link-Pin for adjustment of bucket
Mast:Automatic Motor driven Electric Mast. Rigid Mast with Manual height adjustment
Blade: Length: 300 cm ; Height: 15 cm ; Thickness: 16mm
Axle:Length: 192 cm
Tyres: No. of wheels: Two, Tyres size: 65 cm Recommended Tyre Pressure: 28p
