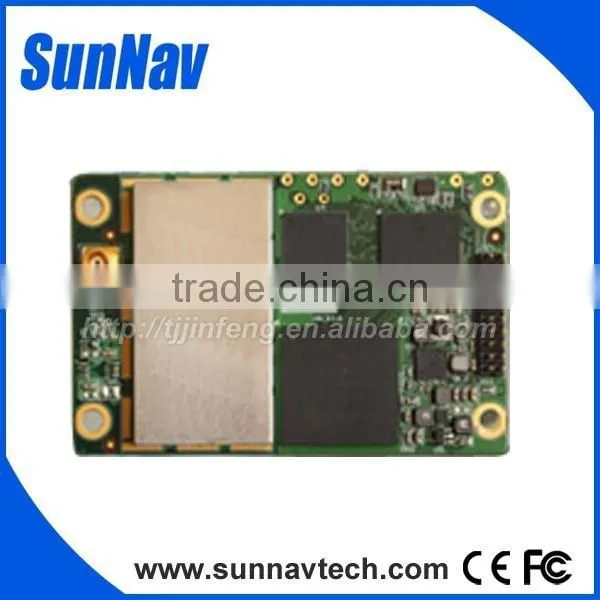

K108 GNSS Gsm Chip GNSS Receiver Oem Board

K108 GNSS Gsm Chip GNSS Receiver Oem Board thumbnail-1
K108 GNSS Gsm Chip GNSS Receiver Oem Board photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, RTK Module
Use:
Other, Navgation
Screen Size:
Other
Contact Supplier Request Quote Chat Now
Tianjin Jinfeng Surveying Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, RTK Module
Use Other, Navgation
Screen Size Other
Function Other, GPS Receiver, used on high accuracy land surveying (RTK or Handheld RTK)
Place of Origin Tianjin, China
Brand Name SunNav
Model Number K108
Warranty 12 Months

K108 GPS board

Signal Tracking

 Channel

 198 Channels

 GPS

 L1,L2,L5

 BeiDou

 B1, B2,B3

GLONASS

L1,L2

 SBAS

 WAAS, EGNOS, MSAS

 Cold Start

 < 50s

 Warm Start

 < 30s

 Hot Start

 < 15s

 Signal Reacquisition

 < 2s

 Positioning Specifications

 Pseudo Range Accuracy

 L1=10cm/L2 =10cm/L5=10cm, B1=10cm/B2=10cm/B3=10cm

 Carrier Phase Accuracy

 L1=0.5mm/L2=1mmL5=0.5mm, B1=0.5mm/B2=0.5mm/B3=0.5mm

 Standalone Position Accuracy

 < 1.5m

 Real Time Kinematics (RTK)

 Horizontal: 10 mm + 1 ppm RMS



 Vertical: 20 mm + 1 ppm RMS

 Initialization Time

 Typically < 10s

 Initialization Reliability

 Typically > 99.9%

 Post Processing Static

 Horizontal: 2.5 mm + 1 ppm RMS



 Vertical: 5 mm + 1 ppm RMS

 Velocity Accuracy

 0.03 m/s

 Acceleration

 4g

 Overload

 15g

 Time Precision

 GPS

 20 ns

 BeiDou

 30ns

GLONASS

20ns

 GPS + BeiDou

 20 ns

 Communications

 RS232

 3 LV-TTL Ports, Baud rates up to 921,600 bps

 Positioning Data Outputs

 1 Hz, 5 Hz & 10 Hz (depends on installed option)

 Raw Data Outputs

 1 Hz, 5 Hz, 10Hz & 20 Hz

 PPS

 1 Pulse Per Second Output

 Indicating Light

 3 LED Indicating light



 Indicating Power, Satellite Tracking and Differential Data

 Data Format

 Correction Data I/O

 RTCM 2.1, 2.2, 2.3, 3.0, 3.1, CMR(GPS only),CMR+(GPS only)

 Position Data Outputs

 ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA,



            VTG, GST, PJK, PTNL



 Extended NMEA-0183 BDGGA, GPNTR, GPCDT, GPHPR



 Binary (compatible with major brands)

 Phisical

 Size (L x W x H)

 100mm x 60mm x 12mm

 I/O Interface

 44-pin Double Male Header

 Weight

 40g

 Antenna

 1 x MCX Receptacle (10 MHZ)

 Environmental

 Working Temperature

 -40°C to +85°C

 Storage Temperature

 -55°C to +95°C

 Humidity

 95% Non-Condensation

 Electric

 Input Voltage

 3.3-6V DC

 Power Consumption

 1.8W

 Memory

 100MB

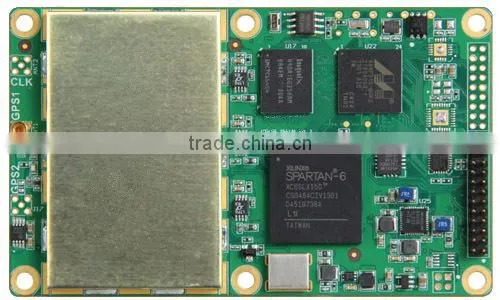

K108 GNSS gsm chip GNSS receiver oem board



Packing and Shipping:

According to the size, volume of products,using standard packaging.

Via international express (DHL, Fedex, UPS, TNT)are all available.It can be fast for you to transport the goods in your hands.

K108 GNSS gsm chip GNSS receiver oem board
