IGS110 Surveying GNSS Receiver

IGS110 GIS Data Collector

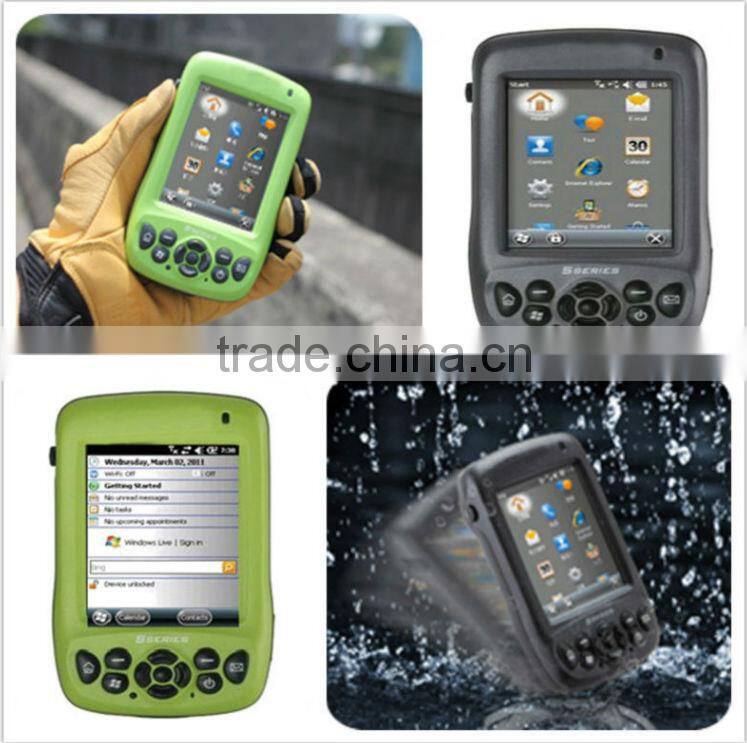

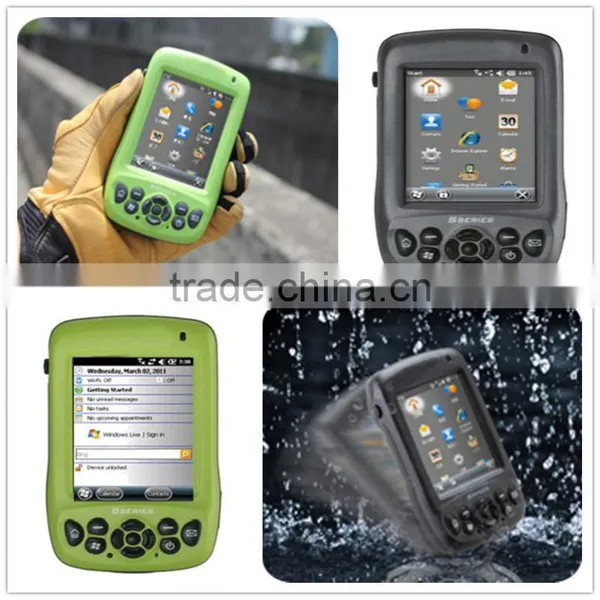

It is the next generation of high precision rugged handheld terminal designed specifically for the Mobile GIS required industry. Builtin the harsh environmentfeatures will cope with users’ working surroundings and enhance their handheld experiences, outdoors. The IGS series equips the capability for both the Field Collectoand mechanism controller device. Sseries offers the most up to date, fast and efficient mobile processing power. Its ruggedness and swappable battery designs will withstand the rigors of continuous field works. Communications options are designed available to all necessary working environments

Wireless Communications Available

Radios (all with internal antennas):

– Bluetooth™

– Wireless LAN: 802.11b/g

– HSDPA/UMTS: Triple band

GSM/GPRS/EDGE: Quad band

– GPS: high accuracy GPS solutions for

GIS application enabling

– DGPS: enabled

Ntrip embedded thru direct data Communication

<1M ± (0.25 m + 1 ppm) RMS/ Horizontal

< 2M ± (0.5 m + 1 ppm) RMS/ Vertical

nSBAS (WAAS/ EGNOS/MSAS)

u <2M ± 0.25m + 1 ppm RMS/ Horizontal

Highlighted Specification and features

Light weighted Rugged IP 65 handheld

Processor with 800 MHz

256MB RAM

2G embedded ROM and supported

External 32GB microSD available

Sub-meter enabled GPS designed

Drop specifications

- 1.2+ Meter drop

- Over 1000+ tumbling (50 cm) testing

Temp range:

- Operating: -20C~ 60C

- Storage: -40C~ 70C

ELECTRICAL SPECIFICATION

Processor: Samsung 3SC6410 @800 MHz

Non Volatile Memory: FLASH 2 GB

Volatile Memory: SDRAM 256 MB

Display: 3.5” color LCD TFT Transflective

240 x 320 pixels (1/4 VGA)

Touch Panel: Analog resistance type

Keypad:9 keys, 4 soft Function keys,Camera

And Power On/off key

Visual Indicator: Tricolor LED, Software controlled

Audible Beeper: 80 dBA SPL @ 10cm, 3.5 kHz

8 to 10 kHz programmable

Personal Area Network: Bluetooth class II, v2.1 EDR

Local Area Network: IEEE 802.11b/g 54 Mb/s

Wide Area Network:UMTS/HSDPA:, Triple band,

850/1900/2100MHzGSM/GPRS/EDGE:

Quad band 850/900/1800/1900Mhz

Main Battery: Lithium-Ion Polymer, 3.7V, 2,600 mAh

USB Charging thru PCs

Interface: USB OTG/ RS232

SOFTWARE

Operating System: Windows 6.5 classic

OS Image Loader: Via USB

Bluetooth Profiles: GAP, SDP, GOEP, DUN, SPP, OPP,

Supported:A2DP, PAN, HID

Application: Office Mobile, Windows Live Messenger

Windows Live Search Plug-in, Remote

Desktop Mobile ,OEM PPG Provision

GPS Performance

Receiver Type: 50 Channels

GPS L1 frequency, C/A Code

GALILEO Open Service capable1

SBAS: WAAS, EGNOS, MSAS, GAGAN

Time to Fix

Cold Start (Autonomous):29 s

Warm Start (Autonomous):29s

Hot Start (Autonomous):<1s

Accuracy for Timepulse RMS 30ns

99% <60 ns

Compensated 15ns

ENVIRONMENTAL SPECIFICATION

Operating Temperature:–20° to +60°C (–4° to +140°F)

Storage Temperature:–40° to +70°C(–40° to +158°F)

(short term storage)

Humidity: 0% to 90% @50°C for 8 hoursnon-condensing

Dust/Fluid Protection:Per IEC 60529 Edition 2.1:2001-02

IP65 8 hours dust, 10 minuteswater

Vibration:Per IEC 60068-2-64 5 to 500Hz, 2.14G,random wave

Mechanical Shock: Per IEC68-2-27 40G, 11ms, half sinewave

Drop Resistance:Per IEC 68-2-32

Procedure I 4’ (1.2 m)

onto steel surface

Tumble Resistance: Per IEC 68-2-32 Procedure 2

0.5m, randomly 1000 times on hard

surface with 19mm thickness wood

backed by 3mm thickness steel

PHYSICAL SPECIFICATION

Weigh: TBD

Dimension: 140 mm (L) x 82.5mm (W) x 33mm (D)

REGULATORY

Radiated & FCC Part 15 Class B, and Part 22/24

Conducted Emission NCC LP0002 /PLMN01/ PLMN08

Other Regulatory: CCC
