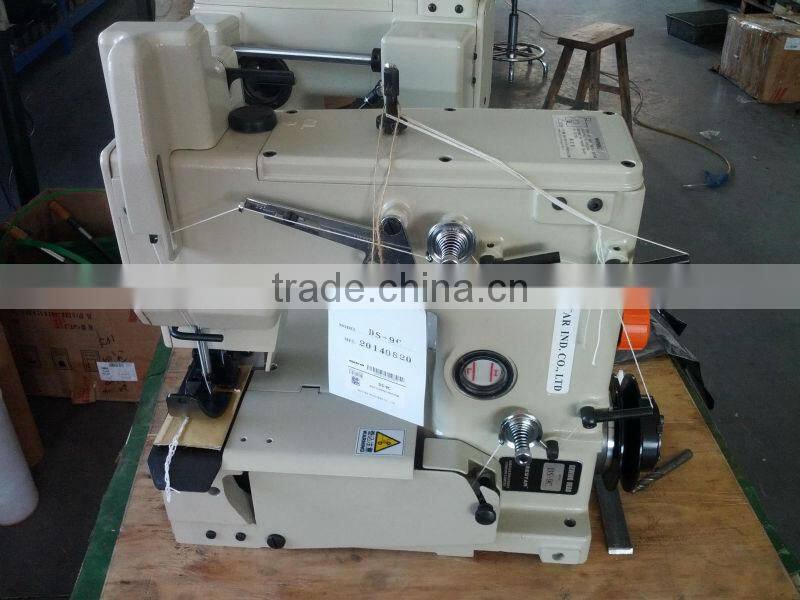

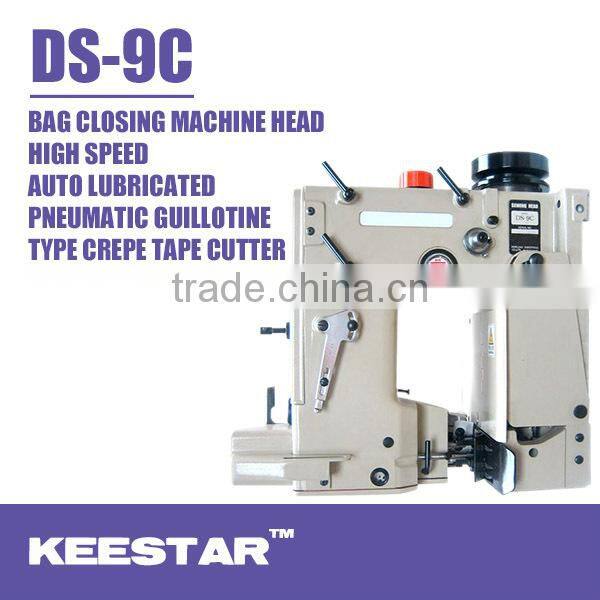

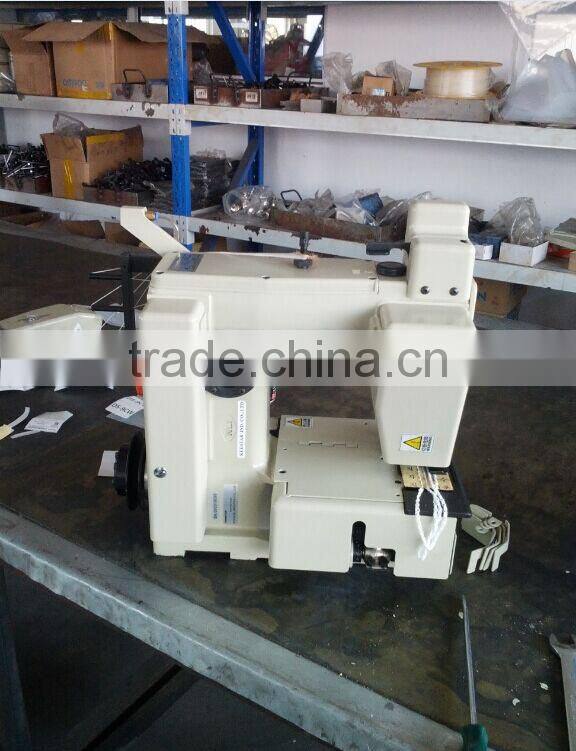

DS-9C auto paper/rice/powder bag closer seaming machine
Application
- Keestar DS-9C is fastest single needle double thread chain stitch plastic bag closer for all kinds of filled bags.
- Well balanced rotational parts ensure very little vibration.
- All parts are protected against the effects of dust.
- Enclosed oil bath lubrication system greatly extends the life of moving parts, reduces maintenance costs.
- DS-9C plastic bag closing machine with pneumatic guillotine type crepe-tape cutter.
Keestar DS-9C could replaced Newlong DS-9C, YaoHan N980AC and Union Special 80800ULM
Features
- Single needle double thread chain stitch 401.
- Max. sewing speed 2,700 rpm.
- Max. sewing capacity 8 mm(5/16 in.),
- Stitch length could adjust from 7 mm to 10.5 mm.
- Built-in pneumatic guillotine type crepe tape cutter.
- All parts are protected against the effects of dust.
Specifications
| Model | DS-9C |
| Max. Sewing Speed | 2700 rpm |
| Max. Sewing Capacity | 8mm (5/16 in.), 24 plies of paper |
| Stitch Length | 7~10.5mm |
| Stitch Type | Single needle double thread chain stitch 401 |
| Feed Type | Drop feed |
| Thread Chain Cutter | Pneumatic guillotine type crepe tape cutter |
| Air Supply | 0.4MP 3.5NI/min |
| Crepe Tape Width | 55mm |
| Lubrication | Full closed oil bath |
| Needle | DR-H30 |
| Thread | Polyester 20/6, 20/9 (2×3, 3×3) |
| Weight | 40kg / 48kg |
| Dimension | 540×380×570mm |
Machine set:
Keestar Related Machines :
Portable bag closer: GK9-2, GK1800, GK26-1A, NP-7A, GK26-1S, GK2200
Bag closing machine: DS-9C, DS-7C, GK35-2C, GK36-6A, GK35-6B,GK35-6C, GK35-8, GK15-1A
Bag sewing machine: DN-2HS, GK20-2, GK20-4, GK35-2A,
FIBC sewing machine: 81300A1HL, 81300A2, 80700CD4H, 81500BA1HL, 80700C2
KEESTAR Industries(Shaanxi) Co., Ltd is leading supplier of bag closing machine, bag sewing machine, automatic heavy duty sewing system and walking foot sewing machine world widely.
Keestar has been focus on developing advanced sewing technology since our establishment. We have developed variety sewing systems for many applications include filled bag open top closing, woven bag making, FIBC(Flexible Intermediate Bulk Containers)
seaming, sails manufacturing and repairing, slings and lashing straps,safety harness and ropes, buffing wheel and polishing wheel, shoes and footwear, sofas and automotive upholstery, carpet and rugs, net and mesh, saddles & harness and other seamed products.
