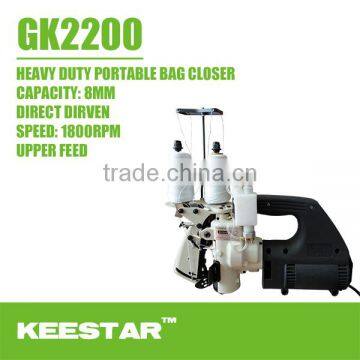

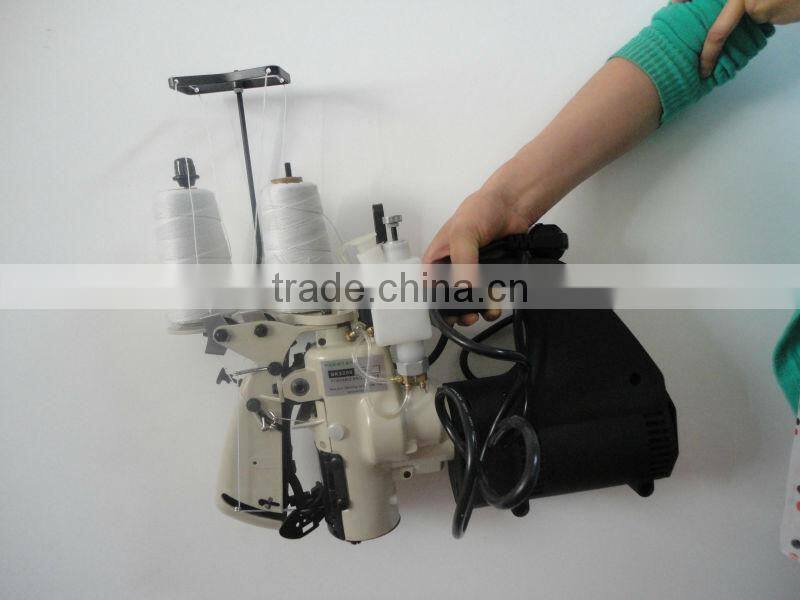

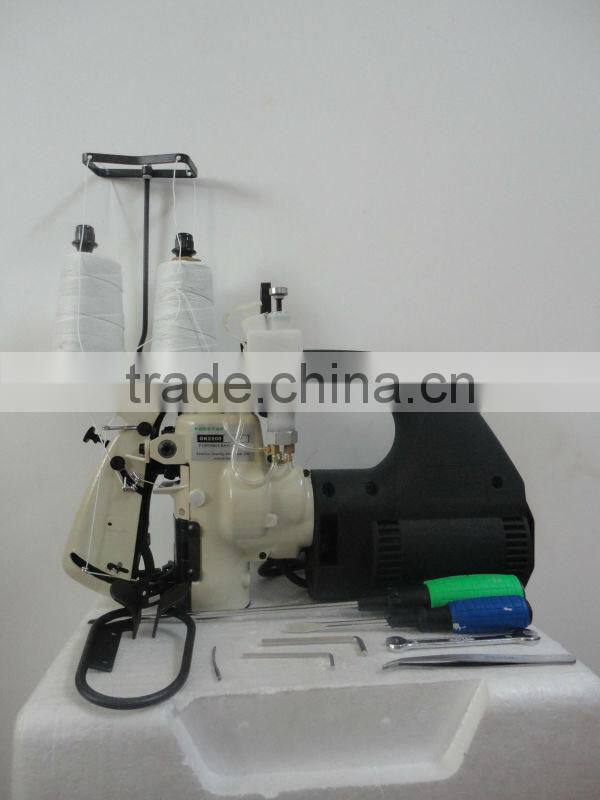

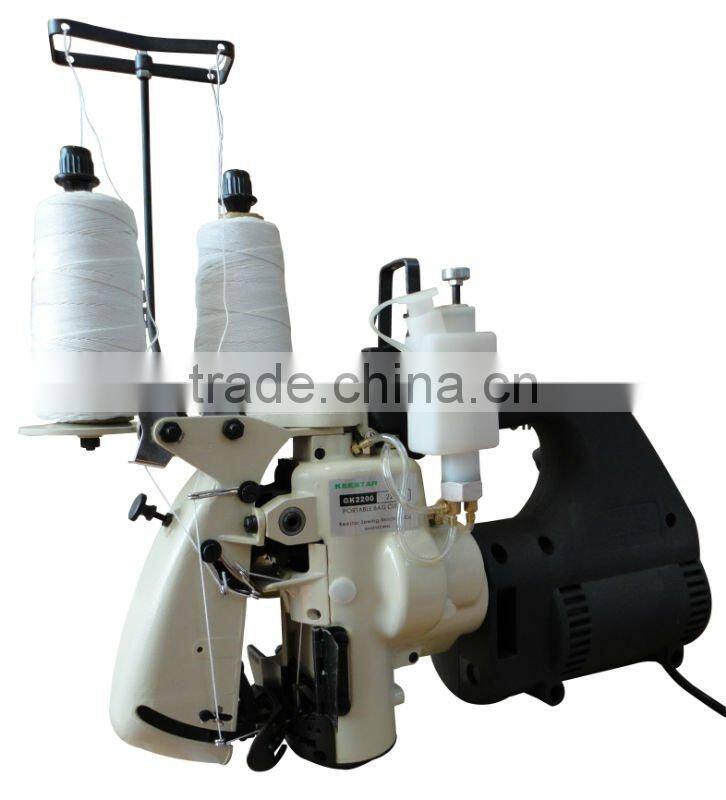

Keestar GK2200 Single needle double thread chain stitch bag closer
Applications
Closing of all sorts of fill bags, e.g. burlap, jute, woven poly, cotton, plastic and paper with single neelde double thread chain stitch 401.
Keestar GK2200 could replaceable with any single needle double thread bag closer like Revo NP-32, Newlong NP-311, NP-8, Union Special 2200A and Yaohan N602A, N320A, F302A.
Specifications
| Model | GK2200 | |
| 1 | Sewing Speed | 1,200-1,700 spm |
| 2 | Max. Sewing Capacity | 9mm (3/8 in.), 24 plies of paper |
| 3 | Stitch Length | 3~8mm |
| 4 | Stitch type | Single needle double thread chain stitch 401 |
| 6 | Feed type | Walking foot |
| 7 | Thread Chain Cutter | Mechanical |
| 8 | Lubrication | Thumb oil and manual |
| 9 | Needle | UY9854 |
| 10 | Cable Length | 2m |
| 11 | Power supply | 220V/110V |
| 12 | Rated Power | 90W |
| 13 | Thread | Polyester 20/6 (1×6, 2×3) |
| 14 | Weight | 5kg/8.5kg |
| 15 | Packing Dimension | 500×340×240mm |
Description
Keestar GK2200 single needle double thread chain stitch bag closer has walking foot feed system with alternate presser foot. It equipped with mechanical thread chain cutter, built-in a thumb oiler and its high sewing speed up to 1,700 spm, heavy duty capacity up to 9 mm (3/8 in.), 24 plies of paper, designed for closing all sorts of fill bags.
Keestar GK2200 is derivative from Union Special 2200A, all measurements are interchange into metric from inch and the whole machine is redesigned, only a part of parts could interchange with.The thumb oiler and manual oil spots formed the lubrication system, well lubricated will ensure the stability and reliability of the machine running under high sewing speed and heavy duty operate.It is the greatest differences between Keestar 2200 and prototype.
Keestar GK2200's special designed walking foot feed grips both sides of the bag like pincers, thus guaranteeing an even feed and constant stitch length even on difficult materials, no undersired stitch shortening or perforations on paper or plastic bags. It is special suitable for closing heavy duty bags, coated bags and bags with liner.
Keestar GK2200 adopt direct drive motor with fan cooled, the sewing speed will constant even different loads, motor housing with handle made of fiberglass-reinforced break-resistant polyamide. Built-in bag feed-in guide and finger guard makes the Keestar GK2200 up to high safety class. Weight only 5kg, light weight well-balanced machine perfectly fits the operator's hand permits effortless operation.
Keestar GK2200 is the best, stable and reliable double thread chain stitch bag closer.
Features
- Single neelde double thread chain stitch 401.
- High sewing speed up to 1,700spm.
- Sewing capacity up to 9mm (3/8 in.), 24 plies of paper.
- Adjustable stitch length from 3-8mm.
- Built-in mechanical thread chain cutter.
- Built-in thumb oiler.
- Built-in bag feed-in guide and finger guard.
- Direct drive motor.
- Walking foot feed system with feed dog and altere presser foot.
- Black heat treatment for all parts, deep anti-rust.
- Light weight machine, approximately 5kg (11 lbs)
- Well assembly quality, ensure the stable running.
- 110V power supply available.
- 0.75mm2 power cable with different type plugs.
- The best, stable and reliable double thread chain stitch bag closer.
- Replaced with Revo NP-32, Newlong NP-311, NP-8, Union Special 2200A and Yaohan N602A, N320A, F302A.
KEESTAR is a family business with more than 25 years' experience in China sewing machine industry. Keestar serves as a professional supplier in bag closing machinery, FIBC sewing machinery and industrial sewing machinery.
As the leader supplier and a technical leading and comprehensive supplier in the field, Keestar integrates all the best resources in China and develops the most advanced technology to make the most suitable solutions and equipments for clients.
1. Offer quality products with competitive price.
2. Pre-sale consultation service, parts and technical support.
3. Bag closing, FIBC sewing and heavy duty sewing solutions.
4. Quality inspection, delivery time control, logistics and related documents arrangement service.
1. Q: Is machine sample available?
A: No. We can supply spare parts sample, but customer needs to pay for it and bear shipping cost, we will return the parts value once order confirmed.
2. Q: What service you can supply?
A: Model recommendation, sample making, technical consulting, after-service support
3. Q: Do you supply overseas installation and debugging?
A: Yes, but customer needs to bear all overseas expenditure.
4. Q: Is your machine all original with Union Special or Newlong?
A: No. But for most of the models, it can be 100% replaceable.
5. Q: Do you supply spare parts?
A: Yes, and with fast lead time.
6. Q: What gurantee you supply?
A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate.
