KEEATAR GK35-6B Double Thread Chain Stitch Automatic Bag Closing Machine Head
- 3000 Set / Sets per Month
- China main seaport or airport
You May Like
-
Keestar 3CM-P fertilizer animal feed automatic packing machine
-
Keestar 3CM-P fertilizer animal feed automatic weighing and filling machine
-
Keestar 3CM-P fertilizer animal feed automatic bag filler
-
Keestar 3CM-P fertilizer animal feed auto packing machine
-
Keestar 3CM-P fertilizer animal feed packaging machine
-
Keestar 3CM-P fertilizer animal feed auto bagging machine
Product Details
| Condition | New | Application | Chemical, Commodity, Other, Medical, Chemical, Commodity, Machinery & Hardware, Medical | |
| Packaging Type | Cartons | Packaging Material | Paper, Plastic | |
| Automatic Grade | Other, Semi-Automatic, Semi-Automatic | Driven Type | Other, Electric, Electric | |
| Voltage | 380V | Power | 550W | |
| Place of Origin | Shaanxi, China | Brand Name | KEESTAR | |
| Model Number | GK35-6B | Weight | 30kg / 33kg | |
| Dimension(L*W*H) | 350*240*440mm | Certification | ISO9001 | |
| After-sales Service Provided | Overseas third-party support available |
Carton
Product Description

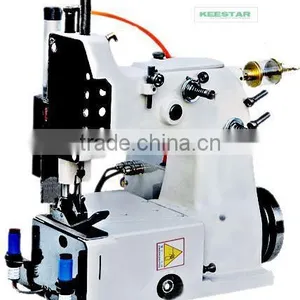

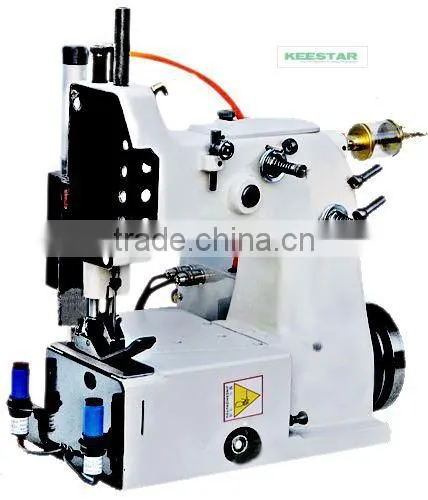

Keestar GK35-6B Double Thread Chain Stitch Automatic Bag Closing Machine Head
Application:
Keestar GK35-6B automatic bag closing machine head could closing of all sorts of fill bags, e.g. burlap, jute, woven poly, cotton, plastic and paper with single thread chain stitch 401. It could mounted on the pedestal to be a automatic bag closing system. Keestar will remove the photoelectric controls from machine to pedestal, greatly increased stability and reliability of the bag closing system.
Keestar GK35-6B could replace Newlong DS-2 and Union Special 80800RL.
FEATURES
- Single needle double thread chain stitch 401.
- High sewing speed up to 1,800 spm.
- Sewing capacity up to 11mm (7/16 in.), 32 plies of paper.
- Adjustable stitch length from 6.6-11mm.
- Built-in pneumatic thread chain cutter.
- Photoelectric automatic start / stop.
- Built-in sight feed oiler.
- Main parts are made of copper alloy and high duty alloy.
- Rolling bearing adopted in crankshaft.
- Easy maintenance semi closed structure.
- Well assembly quality, ensure the stable running.
- Could mounted on Keestar A1-PB, GKS-L pedestal and B2 carrier table pedestal to be a automatic crepe tape bag closing system.
Key words: Bag closing machine head
SPECIFICATIONS
| Model | GK35-6B |
| Max. Sewing Speed | 1,800 spm |
| Max. Sewing Capacity | 11mm (7/16 in.), 32 plies of paper |
| Stitch Length | 6.5~11mm |
| Stitch type | Single needle double thread chain stitch 401 |
| Presser foot lift | 16mm (5/8 in.) |
| Feed type | Drop feed |
| Control | Photoelectric |
| Thread Chain Cutter | Pneumatic thread chain cutter |
| Air supply | 0.4MP 3.5NI/min |
| Lubrication | Sight feed oiler and manual |
| Needle | UY9848G, UY9856T |
| Thread | Polyester 20/6, 20/9 (2×3, 3×3) |
| Weight | 30kg/33kg |
| Dimension | 350×240×440mm |
Keestar Industries(Shaanxi) Co., Ltd is leading manufacturer of bag closing machine, bag making sewing machine, automatic heavy duty sewing system and walking foot sewing machine world widely.
KEESTAR has been focus on developing advanced sewing technology since our establishment. We have developed variety sewing systems for many applications include filled bag open top closing, woven bag making, FIBC(Flexible Intermediate Bulk Containers)
seaming, sails manufacturing and repairing, slings and lashing straps, safety harness and ropes, buffing wheel and polishing wheel, shoes and footwear, sofas and automotive upholstery, carpet and rugs, net and mesh, saddles & harness and other seamed products.
KEESTAR holds leading market share in world market for bag closing machine (system) and automatic heavy duty sewing system, and FIBC sewing machine are widely applied by many world class FIBC factories.
1. Q: Is machine sample available?
A: No. We can supply spare parts sample, but customer needs to pay for it and bear shipping cost, we will return the parts value once order confirmed.
2. Q: What service you can supply?
A: Model recommendation, sample making, technical consulting, after-service support.
3. Q: Do you supply overseas installation and debugging?
A: Yes, but customer needs to bear all overseas expenditure.
4. Q: Is your machine all original with Union Special or Newlong?
A: No. But for most of the models, it can be 100% replaceable.
5. Q: Do you supply spare parts?
A: Yes, and with fast lead time.
6. Q: What gurantee you supply?
A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate.
