Help CenterElbow Cold Forming Machine
Related Products
Specifications

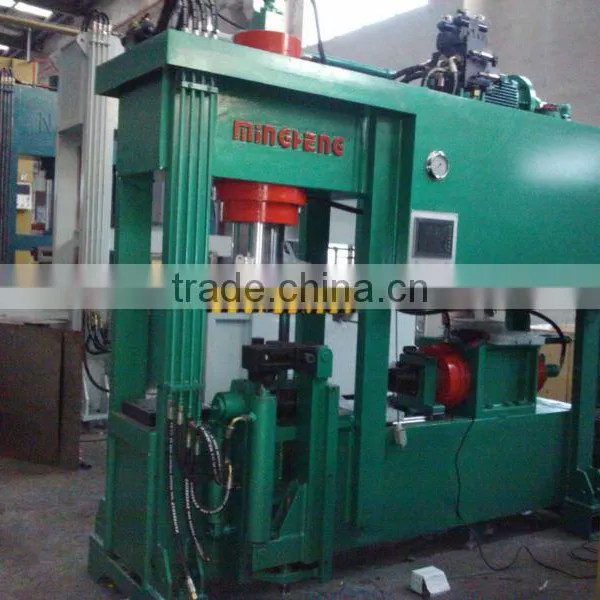

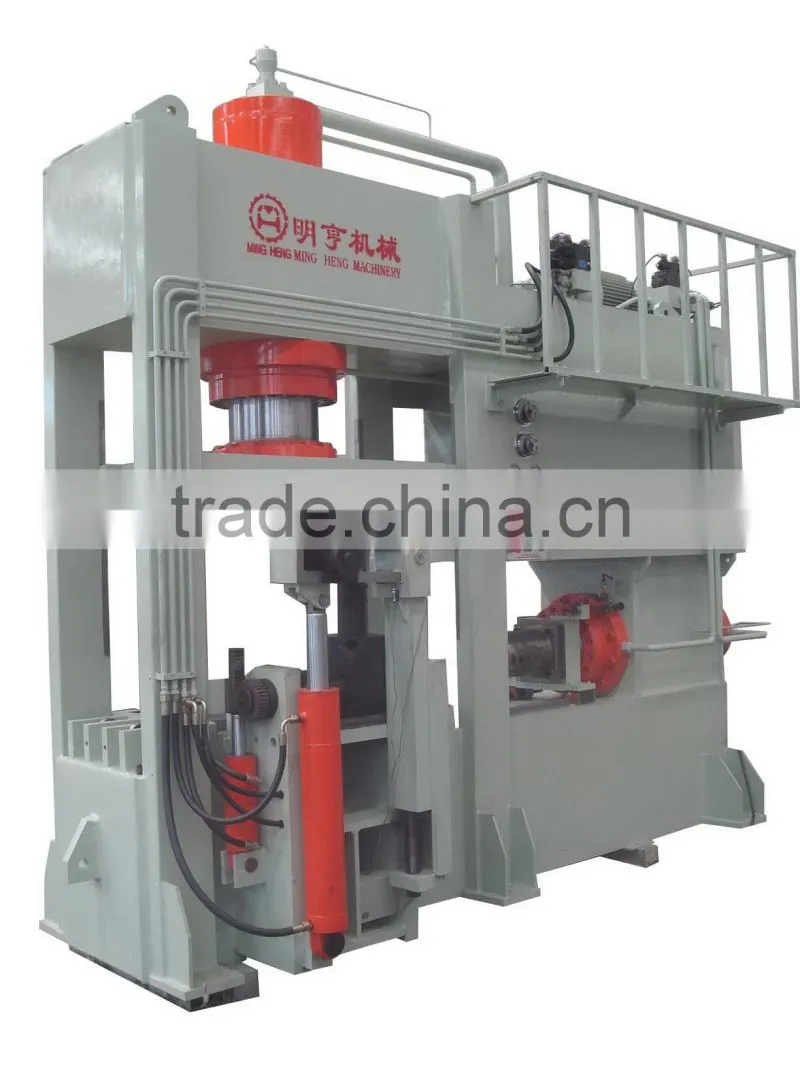

Elbow Cold Forming Machine could manufacture the elbows of stainless steel, carbon steel, copper ranging from 1/2" to 32Elbow Cold Forming Machines of YLT series are designed and constructed not only for manufacturing the small radius (1.0D-1.5D) standard stainless steel elbow, but also for the carbon steel, alloy steel, nickel alloy, copper elbows, etc
The specification (dimension, radius, thickness) of the finished products can meet the stipulated international standard, such as ANSI B16.9, ANSI B16.28, DIN2605, JIS, GOST, SMS, 3A, ISO, etc, The machines are fit for the batch production
It is constructed with strong mental frame with good appearance and stable functioning.
It has individual power construction and electrical system, adopts PLC button centralized control and programmed touch screen operation system, which can be convenient adjusted and operated both manually and automatically
It has special demoulding devices and mould orientation device which makes the mould change easy
It has the features of energy saving, easy operation, high quality for products compare to hot forming process
| YLT65A | YLT100B | YLT150B | YLT200A | YLT300B | YLT400A | YLT500B | YLT600A | YLT700A | YLT800A | ||
| forming size range (inch) | 1/2'' - 3'' | 1/2'' - 4'' | 2'' - 6'' | 4'' - 8'' | 5'' - 12'' | 8'' - 16'' | 12'' - 20'' | 12'' - 24'' | 18'' - 28'' | 20'' - 32'' | |
| Max mould lock power (KN) | 800 | 1200 | 2000 | 3150 | 5000 | 10000 | 15000 | 20000 | 25000 | 35000 | |
| side pushing power (KN) | 630 | 1000 | 1500 | 2000 | 3500 | 5600 | 8000 | 10000 | 12500 | 15000 | |
working pressure (Map) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| processing speed (SEC/PCS) | 10-40 | 35-70 | 50-90 | 70-110 | 120-250 | 200-360 | 300-600 | 350-720 | 400-900 | 500-1200 | |
| General Power (KW) | 11 | 15 | 18.5 | 22 | 37 | 60 | 90 | 120 | 145 | 190 | |
| weight (T) | 4.5 | 6.5 | 22 | 28 | 42 | 75 | 180 | 280 | 320 | 520 |
