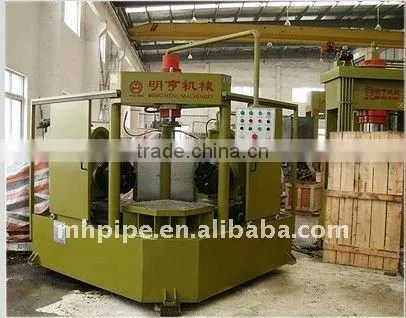

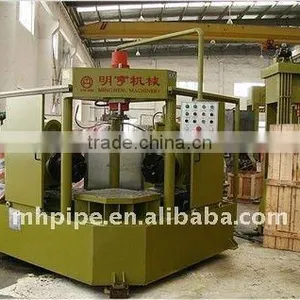

Help CenterHydraulic Elbow Beveling Machine
Related Products
-
Elbow Double Beveling MachineNegotiableMOQ: 1 Set -
Elbow Double Beveling MachineUS$ 50,000 - 850,000MOQ: 1 Set
-
Elbow Double Beveling MachineUS$ 50,000 - 850,000MOQ: 1 Set
-
Elbow Double Head Beveling MachineUS$ 50,000 - 850,000MOQ: 1 Set
-
Return Elbow Beveling MachineUS$ 50,000 - 850,000MOQ: 1 Set
The YSDJ series hydraulic tee beveling machine has the features of unique design, compact structure beautiful look and convenient to operate.
It is an ideal equipent for beveling both equal and unequal tees of size from 1/2'' to 48''
There are three cutters for each clamp disk, they serve for different range of work and can work at the same time to ensure the effective cutting and fully satisfied the stable requirements of the guide track under the status of strong cutting
Its cutting speed are adjustable in according to the size and the thickness of elbows
The products processed by the machine are comply with relevant elbow beveling standard
| YSDJ2503A | YSDJ3204B | YSDJ4008A | YSDJ4010B | YSDJ5012B | YSDJ5016A | YSDJ6324A | YSDJ6332B | YSDJ8036A | |
| Processing Size Range (inch) | 1/2-3'' | 1-4'' | 3-8'' | 4-10'' | 5-12'' | 8-16'' | 12-24'' | 22-32'' | 28-36'' |
| Max Processing Thickness (SCH) | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 |
| Spindle Moving Type | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control |
| Workpiece Clamping Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| System Pressure (Mpa) | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Overall Dimension (M) | 1.9*1.75*1.9 | 1.9*1.75*1.9 | 2.4*2.1*2.2 | 3.0*2.3*2.4 | 3.5*2.5*2.8 | 3.6*2.9*3.0 | 5.1*3.5*3.8 | 5.6*3.9*4.0 | 6.2*4.3*4.5 |
| General Power (KW) | 16 | 16 | 25 | 26 | 36 | 40 | 48 | 78 | 95 |
| Weight (T) | 3.1 | 3.9 | 7.3 | 9.5 | 11.8 | 14 | 24 | 31 | 38 |
We provide professional service for our customer before and after sale. You are invited to visit our factory in Shanghai. We will accompany you and show you the whole process of production. Before delivery, you can come to test the machine and to check the product pipes.
Our products are all customized. If you have any special requirements, you are welcomed to tell us. Our experienced engineers will try the best to design the machine for you.
We are one of the best in China. We are experienced and trustworthy.
