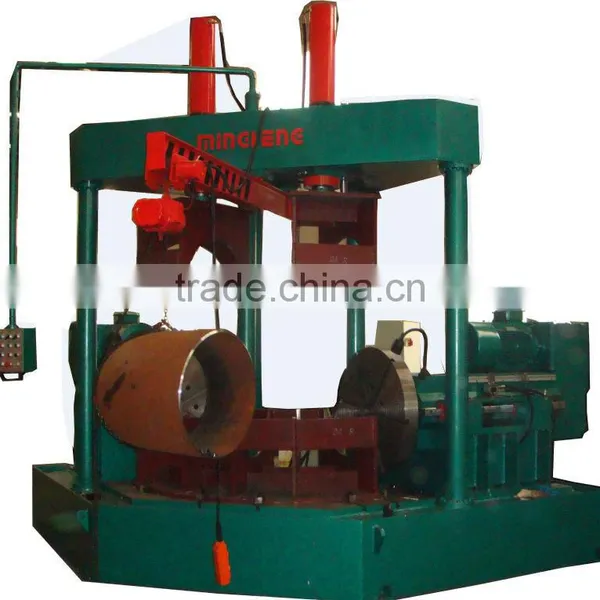

Beveling machine has the features of unique design, compact structure, beautiful look and convenience to operate
It is an ideal equipment for chamfering metal right-angle elbow end and for beveling both LR&SR (90degree and 45 degree) elbow of size 1/2'' to 48''
The products processed by the machine are comply with relevant elbow beveling standard.
This machine drives strongly, cuts quickly and works efficiently. The cutting speed is adjustable in according to the size and the elbow thickness
It contains novel- structured floating cutter support, well and truly oriented workpiece clamp and qualified excellent hydraulic feed lock device to ensure normal and quick forward/ backward movement of the workpiece on the slipway
This model YWDJ6320A was designed and manufactured for beveling the elbows of stainless steel, carbon steel and alloy steel with ranging from 14" to 20" with the thickness from 8mm to 30mm accordingly
It could bevel at both ends simultaneously to confirm the correct 90 degree
Technical Specification:
| YWDJ2503A | YWDJ3204B | YWDJ4008A | YWDJ4010B | YWDJ5012B | YWDJ5016A | YWDJ6324A | YWDJ6332B | YWDJ8036A | |
| Processing Size Range (inch) | 1/2-3'' | 1-4'' | 3-8'' | 4-10'' | 5-12'' | 8-16'' | 12-24'' | 22-32'' | 28-36'' |
| Max Processing Thickness (SCH) | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 |
| Spindle Moving Type | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control |
| Workpiece Clamping Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| System Pressure (Mpa) | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Overall Dimension (M) | 1.5*1.5*1.6 | 1.75*1.75*1.9 | 2.1*2.1*2.2 | 2.3*2.3*2.4 | 2.5*2.5*2.8 | 2.9*2.9*3.0 | 3.5*3.5*3.8 | 3.9*3.9*4.0 | 4.3*4.3*4.5 |
| General Power (KW) | 9 | 12 | 19 | 19 | 26 | 34 | 65 | 80 | 98 |
| Weight (T) | 2.1 | 2.8 | 6.3 | 6.5 | 7.2 | 9.7 | 16 | 21 | 26 |
We provide professional service for our customer before and after sale. You are invited to visit our factory in Shanghai. We will accompany you and show you the whole process of production. Before delivery, you can come to test the machine and to check the product pipes.
Our products are all customized. If you have any special requirements, you are welcomed to tell us. Our experienced engineers will try the best to design the machine for you.
We are one of the best in China. We are experienced and trustworthy.
