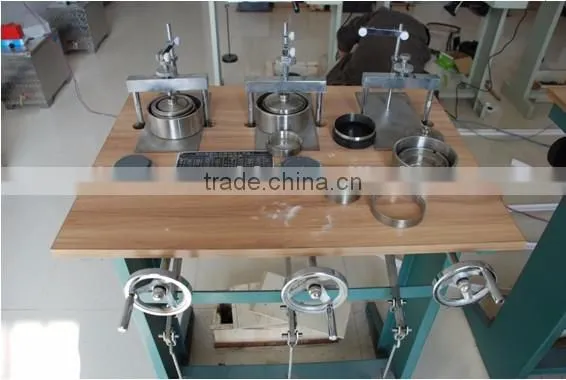

Middle-lower Pressure Soil Triple Combination Consolidation Apparatus
Application:
Low-pressure consolidation triple meter for compressing soil testing, testing of soil pressure and deformation relationship, unit of soil deposition, compression index, resilient index and coefficient of consolidation.
1. Load pressure:
Low pressure: 12.5kPa-800kPa / 30cm2, 12.5kPa-400kPa / 50 cm2
MV: 12.5kPa -1600kPa / 30cm2, 12.5kPa-800kPa / 50cm2
High pressure: 4000kPa / 30cm2, 2000kPa / 50cm2
2. Load arm: 12: 1 (low pressure), 20: 1, 24: 1 (high pressure)
3. Consolidation of the container: 1 x beam, 2 x beams, 3 x beams
4. Specimen Size: 30cm2, 50cm2
5. Structure: Steel
6.size: 500*170*380(mm)
7.Weight: 160Kg
