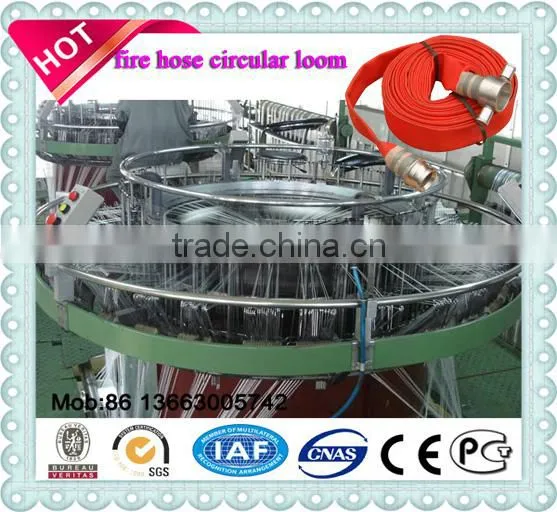

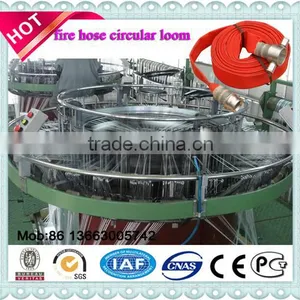

3 Shuttle Circular Loom for Fire Hose , Fire hose large diameter making machine

the circular looms are packaged into wooden case, which can meet the international delivery requirement.

3 Shuttle Circular Loom for Fire Hose , Fire hose large diameter making machine

  Brief Introduction

1.  FH250 Circular Loom is a kind of hose loom which is optimized and developed on the basis of introducing foreign similar- equipment and combining with our own experience summarizing from long-term production practice as well. 1,The host regulates speed by variable frequency. It is convenient and flexible for operation, high security, reliability and

high efficiency.

2, Equipped with automatic stop controls breakage of warp yarn and empty weft bobbins and the indication lights show where the breakage has occurred or if the weft bobbins are empty. This makes the products quality stable and reduces operators’ work .

3, Surface of the fabric is even and equal. More than 4 patterns of weave are available . 4,Hose diameter is from 20mm to 110mm and 250mm can be reached by adding accessories . 5,Compact structure and cover smaller area .

       DesignFeatures

Circuar loom for Fire hose Jacket is adopted Mandal 604 type Technology

Circular Loom is a kind of hose loom which is optimized and developed on the basis of introducing foreign similar equipment and combining with our own experience summarizing from long-term production practice as well.

1,The host regulates speed by variable frequency. It is convenient and flexible for operation, high security, reliability and high efficiency.

2, Equipped with automatic stop controls breakage of warp yarn and empty weft bobbins and the indication lights show where the breakage has occurred or if the weft bobbins are empty. This makes the products quality stable and reduces operators’ work .

3, Surface of the fabric is even and equal. More than 4 patterns of weave are available .

4,Hose diameter is from 20mm to 110mm and 250mm can be reached by adding accessories .

5,Compact structure and cover smaller area .

        Descripion andSpecification

•  Easy to control, high efficiency;
• Automatic to stop for defects warp & weft and the alar system can show the place for the out of line;
• Can weave 4 kinds of fabric with beautiful pattern;

• The fabric size is 20mm to 110mm, it can reach to the size 150mm, 200mm and 250mm after add accessories;

With air frozen and air depurated cleaned;
High quality and long service life.
Electric control for the breaking yean, very safe.


1)Shuttle speed : 204 rotation/min (Max);

 2)Motor: 5.5KW;

3)Control power : 220V   AC 24V DC

4)Available weave diameter :20mm—200mm;

5)Available number of warp ends:478 single or double ends;

6)Time of automatic stop : approx. 2/3 rotation
