TD vertical bucket elevator for cement/coal/ore
- 200000 Meter / Meters per Month
- qingdao tianjin shanghai shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- Professional design TD cement bucket elevator for materials handling
- Hot sale raw material belt type bucket elevator
- Belt type limestone TD bucket elevator for cement
- Carbon steel vertical belt bucket elevator
- 2017 high quality used bucket elevator/bucket elevator conveyor belt
- Small TD Series Bucket Elevator
Product Details
Condition: | New | Type: | Bucket Conveyor | Material: | Other, Carbon steel |
Material Feature: | Fire Resistant | Structure: | Chain Conveyor | Load Capacity: | 8-69 t/h |
Place of Origin: | Henan, China | Brand Name: | YG | Model Number: | many types |
Voltage: | 220V, 380V,400V | Power(W): | 3000-75000 | Dimension(L*W*H): | according to different types |
Certification: | ISO, BV | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
bucket conveyor is packed in export standard containers or as required
Product Description

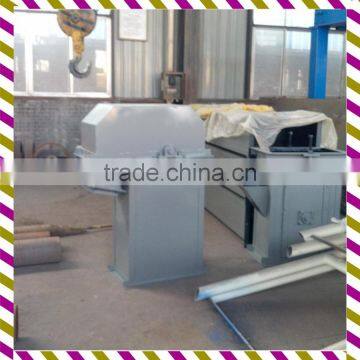

TD vertical bucket elevator for cement/coal/ore
Introduction of Bucket Elevator in cement industry
This conveyor machine, bucket elevator is designed and made as the standard of JB3926-85. It is widely used in metallurgy, chemical industry, building materials, mine, grain and vegetable oil, food, fodder, plastic and medicine etc.
Component of Bucket Elevator in cement industry
It consists of head section with driving pulley, elevator boot (down section) with take-up pulley, elevator casing, driving device and back stop ,braking device. there is a inspection hole on elevator casing, to oberve all operation.
Driving device is equiped with YZ reducer and ZQ reducer. YZ axis reducer is directly coupled with pulley shaft. this design can omit driving platform with compact structure, light weight.
Also, fixed security protector on bucket elevator: belt speed detector, belt alignment device, backstop, ect. to ensure safty operation.
Feature of Bucket Elevator in cement industry
1) Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement. There is almost no feed back and excavating circumstance when materials are lifted, so invalid power is little.
2) Wide lifting range, little materials type and property requirement can not only lift general powder and granule materials, but also lift high polishing materials. Sound seal and little circumstance pollution.
3) Good running reliability, the advanced design principle and handling method assure reliability of whole machine running, the non-fault time exceed 20 thousand hours. Stable running make it reach higher lifting height.
4) The life is long, inflow feeding, non excavating with hopper and there is few extrusion and collision circumstance between materials. There is little materials sprinking during feeding and discharging to reduce machinery abrasion.
Technical Parameters of Bucket Elevator in cement industry
model | D160 | D250 | D350 | D450 | ||||
Assembly forms | Belt slip form |
|
|
| ||||
Law-hopper transport capacity (m2h) | S 8 | Q 3 | S 21 | Q 11 | S 42 | Q 25 | S 69 | Q 48 |
Hopper-width(mm) | 160 | 250 | 350 | 450 | ||||
Hopper-pitch(mm) | 300 | 400 | 500 | 640 | ||||
speed(m/s) | 1 | 1.25 | 1.25 | 1.25 | ||||
Mainwheel speed(r/min) | 47 | 47 | 47 | 37 | ||||
Max feeding size(mm) | 25 | 35 | 45 | 55 | ||||
Height of upgrading from the center(m) | 4.8-30 | 4.8-30 | 4.3-30 | 4.5-29 | ||||
height(m) | H+0.9 | H+1.2 | H+1.2 | H+1.5 |
Company Profile
Henan Yigong Machinery & Equipment Co., Ltd. is a manufacturer specialize in building material equipment, mining machines, stone plant equipments,etc. that is founded in 2008 by restructuring. The firster company was established in 1978. Now, We integrate the research, development, production, and sale together. Our company is located in Zhengzhou City which is a transportation junction city of China. After 30 years' development, our company has already owed 3 branch companies and 1 machinery research institute. Our company covers an area of 50,000 square meters, including 15,000 square meters of modern buildings. We have adopted the scientific management mode of modern enterprises, and constantly strived to create novel products. As a result, our company has become a famous enterprise of machinery industry in China.
With many years' development, we have accumulated rich experience in the production and management, and brought up a large number of technical members and management elites. Nowadays, we have 660 employees, including 180 senior and intermediate technical members. Through constant introduction, digestion and absorption, our company has 100 sets of various large and medium equipment and several workshops for casting, forging, thermal treatment, machinery processing, welding, assembly, and machine repair. The maximum capability of assembly lift is 120MT. Our company has passed the evaluation of ISO9001.2000 certification. We constantly renew products, which are well-known around the world and well-accepted by customers.
Our main products include five series, such as aerated concrete equipment, lime-sand brick and autoclaved ash brick equipment, sandstone making equipment, metallurgy and mineral processing equipment and crushing equipment. They can be divided into 30-odd kinds and 100-odd types. These equipment are widely used in building-material, metallurgy, corhart, and ceramic industries.
Welcome to visit our web site : www.enyigong.com and contact us to know more information about our product.
