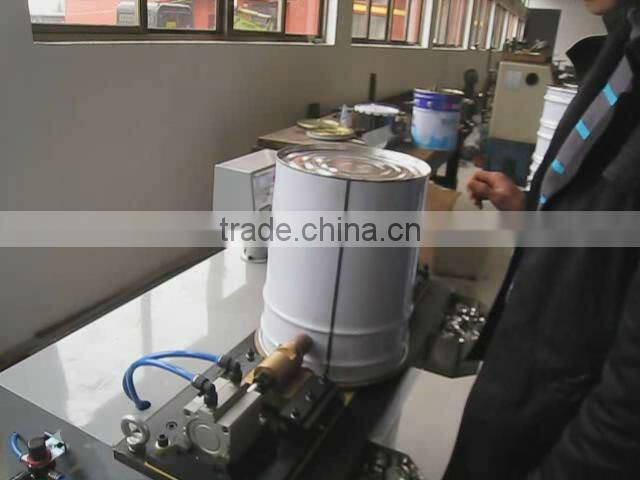

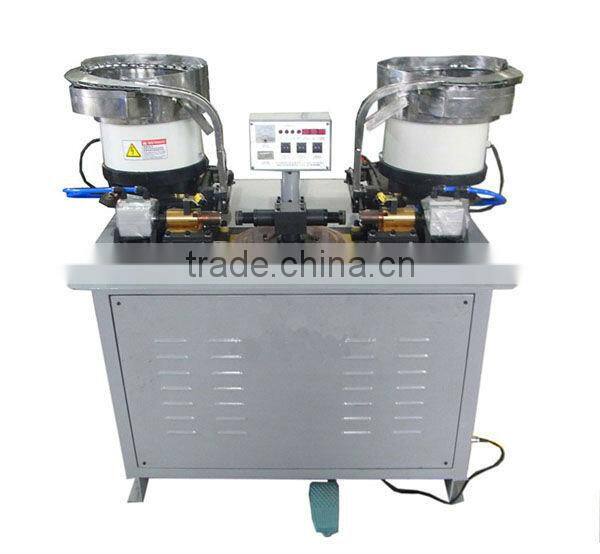

Double Head Can Welding Machine

Specifications

High Quality Double head can welding machine

Model: DN60B

Usage: This machine is used for welding the ears of the pail can with automatic ears feeding system. It is more safe and convienent then semi automatic earlug welding machine.

Features:

1. Welding currents is controlled by digital circuit microcomputer, frequency adjustment, high precision, good consistency.

2. Current have ramp snd downslope function.

3. World famous brand electrical components: AIRTAC, SEMIKRON, MITSUBISHI, BONNER.

Dual-Ram series: Specially designed for welding can ear on can body.

1. Both can ear welded simultaneously can keep good symmetry.

2. Automatic paint-scraping device, no requirement of spae preservation at double-side paint on can body.

3. Automatic weld can ear, save manpower, safe and fast.

4. Small round tank can shrouding before welding handle ear.

The main technical parameters:

Other types of earlug welding machine:

1. Automatic Double Spot Welder:

It is used for welding the ears of the pail can with automatic ears feeding system.
Capacity: 30 cans/min.
Thickness:≤0.2-0.5mm
Compressed air: 900L/min 0.6Mpa
Traveling schedule:50mm
Can Diameter: 150-180 or 220-300 mm
Welding materials: steel, tin-plated sheets
Power:2N380/50HZ 60KVA
Net weight: 500kg
Dimension: 1400*900*1300mm
Electrical components: AIRTAC, SEMIKRON, MITSUBISHI, BONNER

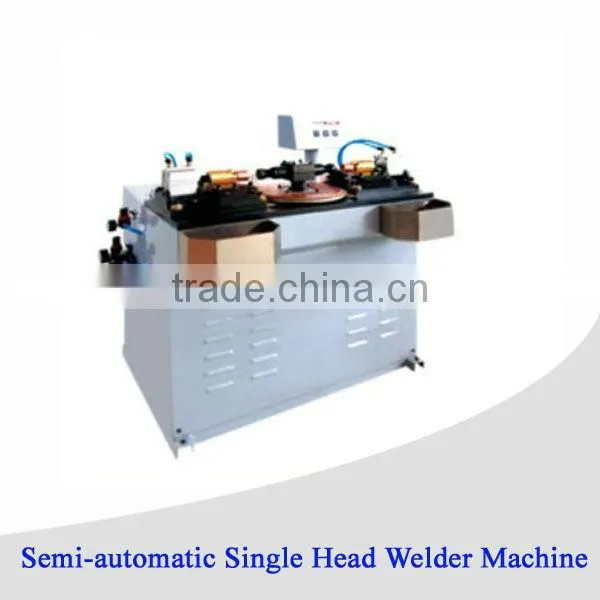

  2. Semi-automatic Single-head Spot Welder

It is used for welding small can hand on can lid
Capacity: 15 cans/min.
Electrode stroke:75mm
Compressed air:500L/min 0.6Mpa
Traveling schedule:50mm
Welding materials: thin-galvanized sheets, steel                                    tin-plated sheets
Net weight: 300kg
Dimension: 550*850*1350mm
Electrical components:AIRTAC, SEMIKRON

JIUJIANG EXCELLENT PACKAGING MACHINERY CO., LTD

    Our company was located inJiujiang City, Jiangxi Province where nearby Changjiang River and under the foot of Mt.Lu, with the convenient transportation.

     Our company is specialized in cans making machines’ producing and sale.

     Our leading products include production line equipments for narrow-neck cans, 1-20L round and square cans, 5-25L pail cans, and other different kinds of special purpose cans, such as alcohol cans and biscuit cans.

     Our products has been exported to many countries, such as Kuwait, Dubai, Indonesia, Vietnam, Palestine, Cameroon, Chile, England, Russia, America, Greece, Japan and so on.

 Customer first is the business principle of our factory. Being quality-centred is our eternal pursuit.

  Welcome to visit our factory!
