Square Can / Tin Box Making Machine Production Line
- Shanghai
- T/T
You May Like
-
18L Semi-automatic Flanging & Curling Paint Can Machine
-
Conical Pail / Paint Can Hydraulic Expending Machine
-
10-20L Pail Can / Tin Can / Conical Production Line
-
Food Can Making Machine Line / 1- 5 L Tin Can
-
Square Can Locking Seaming Machine line
-
Locking seaming machine for Round/Square Candy Can Prodcution Line
Product Details
| Condition | New | Application | Beverage, Chemical, Food | |
| Packaging Type | Cartons | Packaging Material | Wood | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 380V | Power | 1.5kw | |
| Place of Origin | Jiangxi, China | Brand Name | Yongxin | |
| Model Number | GT3F3Y | Dimension(L*W*H) | 720*1400*1500MM | |
| Weight | 900KG | Certification | CE Certification | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Tin Box Making Machine Production Line
Tin Box Making Machine Production Line

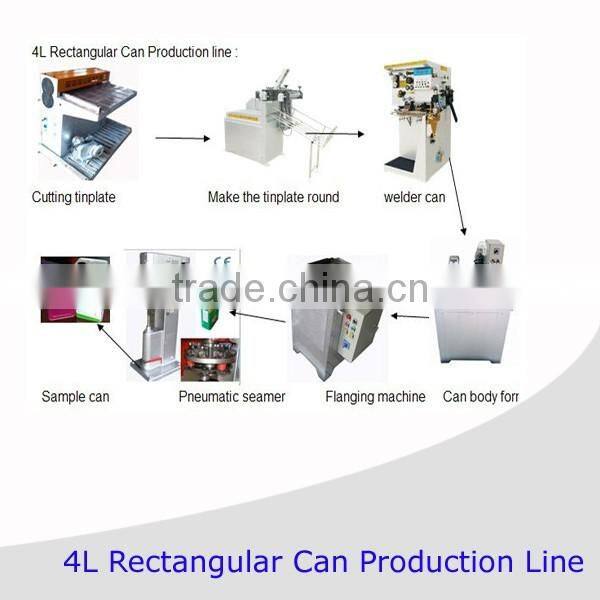

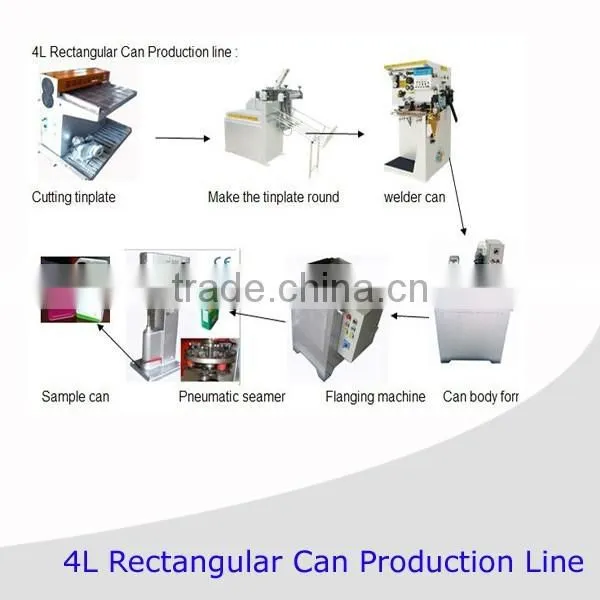

Main Picturer of Tin Box Making Machine Production Line

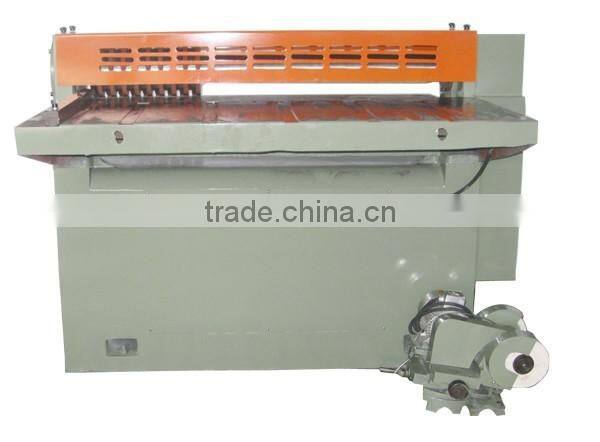

The cutting machine for Tin Box Making Machine Production Line
GT1B5 gang slitter
Adaptability:Max.Sheet Thickness | 0.4mm |
Max.Sheet Width | 1050mm |
Min.Sheet Width | 44mm |
Using Motor | 1.1kw |
Net Weight | 1400kg |
Dimension | 1500*1600*1105mm |

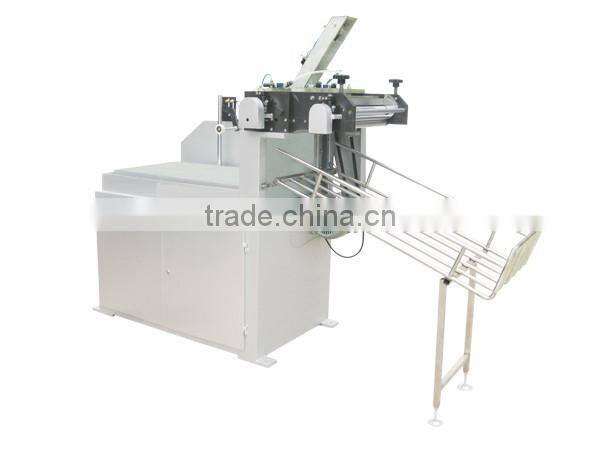

Rolling forming machine for Tin Box Making Machine Production Line
| Capacity | 40 cans/min |
| Can Height | Max.420mm |
| Power | 0.25kw |
| Weight | 50kg |
| Dimension | 700mm×400mm×840mm |

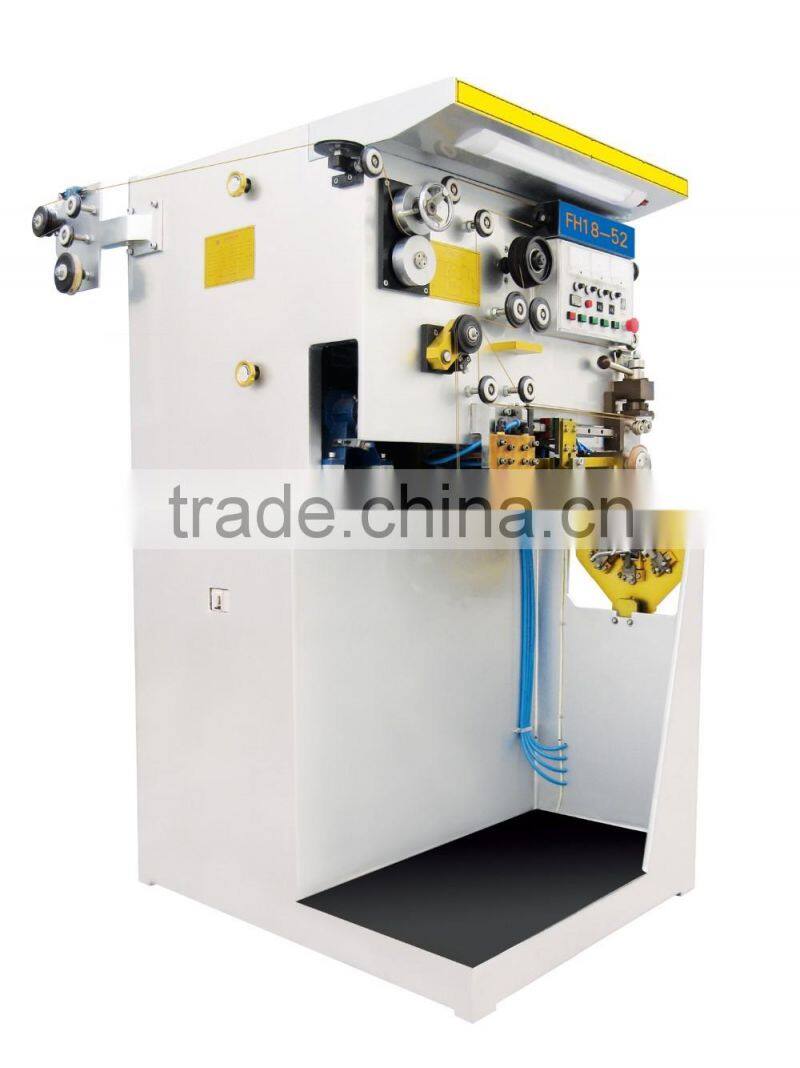

FH18-52 semi-Automatic can body welding machine for Tin Box Making Machine Production Line
| Linear rate of welding | 6-18m/min |
| Production capability | 20~80Cans/min |
| Applicable can diameter | ø65~ø286mm |
| Applicable can height | 70~420mm |
| Applicable material | Tinplate steel-based Temper:T2.5-DR8 |
| Applicable material thickness | 0.18~0.42mm |
| Seam welding landing | 0.4mm 0.6mm 0.8mm 1.2mm |
| Seam point distance | 0.5~0.8mm |
| Applicable copper wire diameter | ø 1.38mm ø 1.5mm |

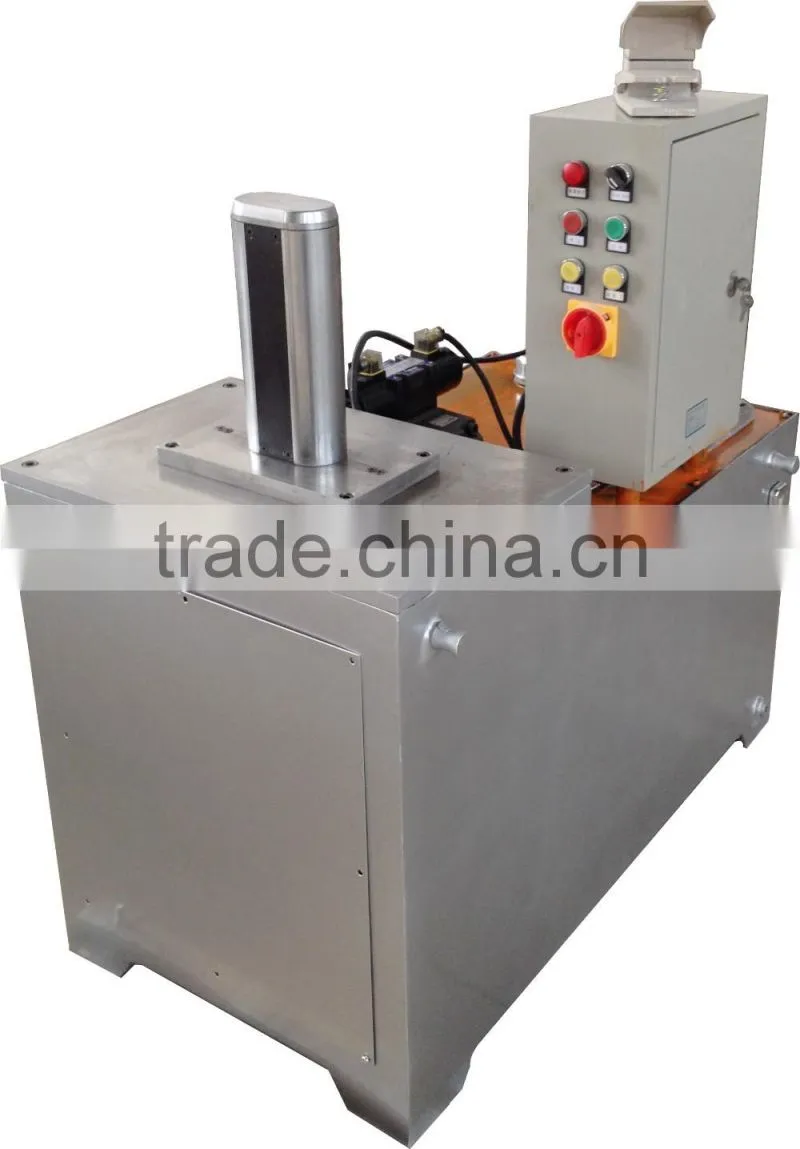

GT3F3Y3F4Y Hydraulic square can shape forming machine for Tin Box Making Machine Production Line
| model | GT3F3Y/3F4Y |
| capacity | 20-30 cans/min |
| applicative range | 1L--4L |
| net weight | 700kg |
| power | 3kw |
| dimension | 720*1400*1500mm |
GT3FB4J

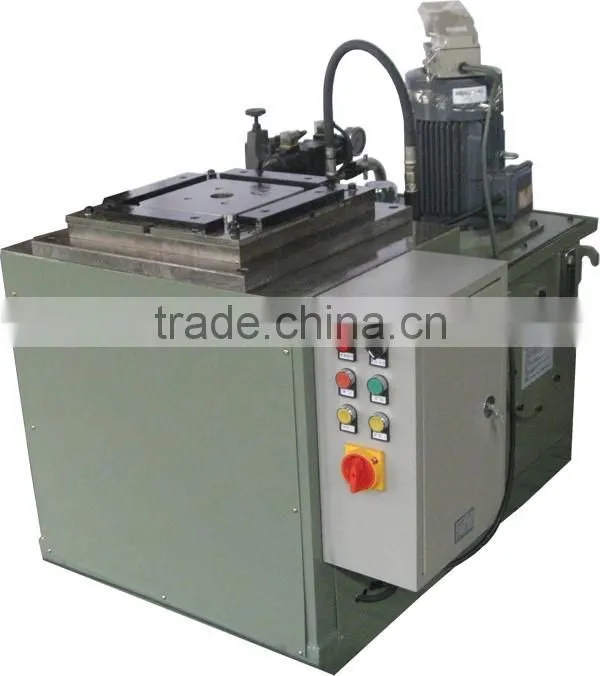

Square can flanging machine for Tin Box Making Machine Production Line
| Mode | GT3FB3/3FB4J |
| Applicative range | 1L-18L |
| Capacity | 30cans/min |
| Power | 0.75kw |
| Net Weight | 350kg |
| Dimension | 680*1020*800mm |

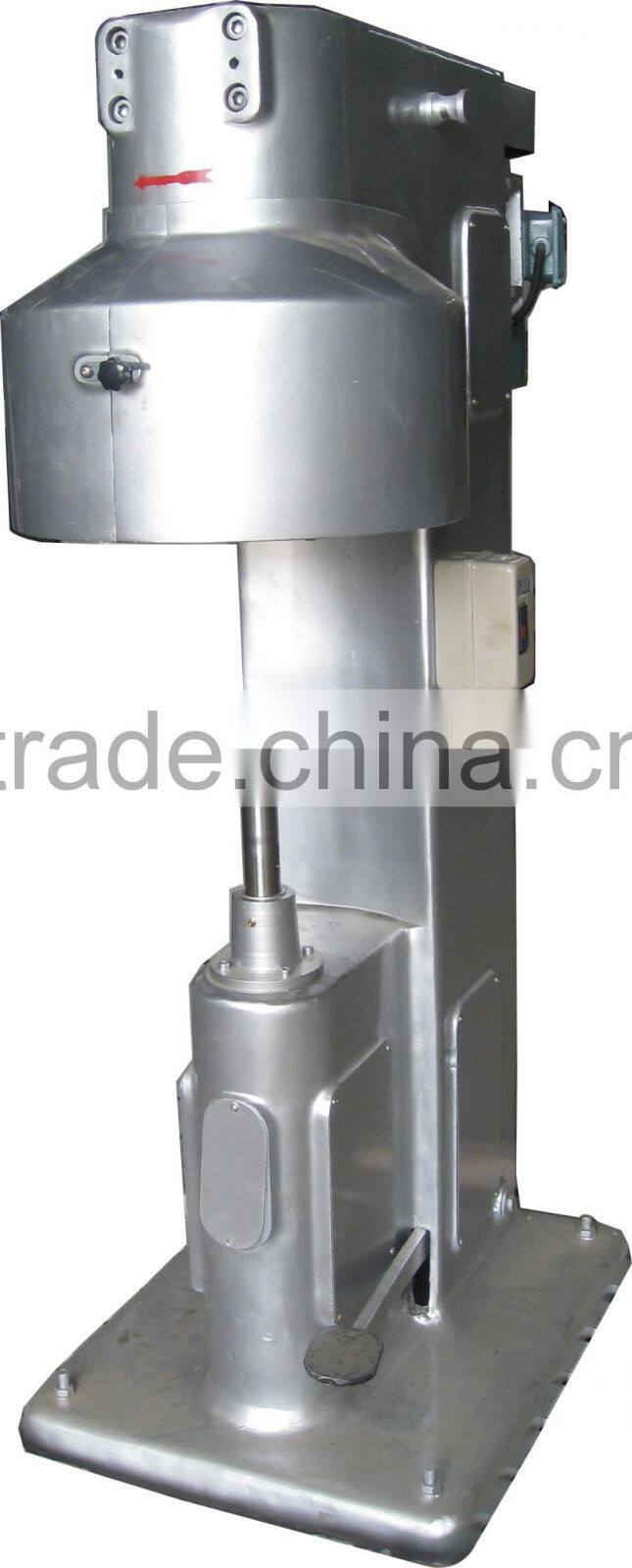

GT4A16B can seamer for Tin Box Making Machine Production Line
Model: | GT4A16B |
Capacity: | 12-16cans/min |
Diameter: | 50-330mm |
Maximum Height: | 50-400mm |
Sheet thickness: | ≤0.4mm |
Motor type: | Y112M-6 |
Power: | 1.5kw |
Rotate speed: | 940r/min |
Net weight: | 800kgs |
Dimension: | 980x580x1900mm |
This product's deliver time is 45 days.
Our products' warranty is 1 year!
If there is any quality problem with our machine during the warranty period, we will offer free parts for customer for fix the machine.
If you want to know more information about this machine,please contact us!
Tel:+86-792-8326978
