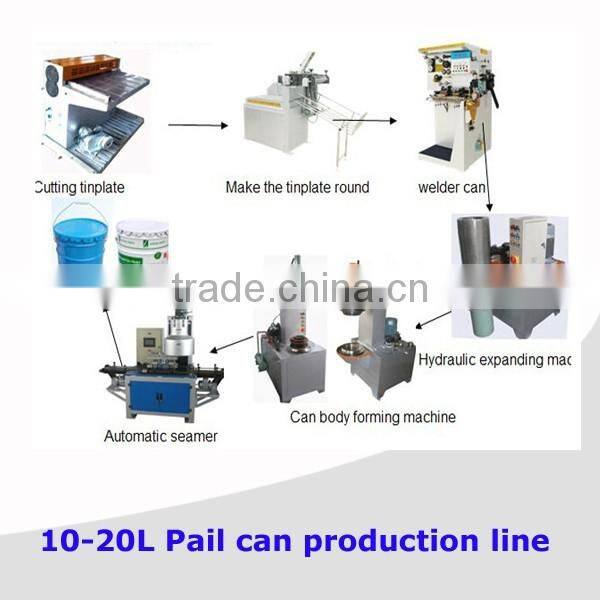

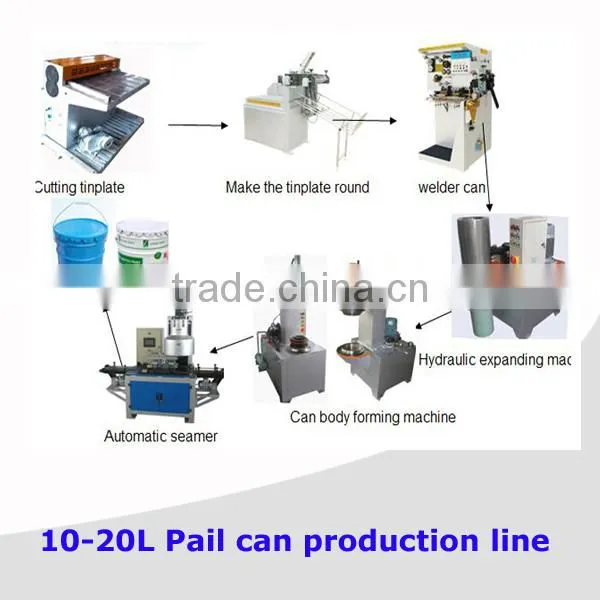

Help Center10-20L Pail Can / Tin Can / Conical Production Line
Related Products
-
Food Can Making Machine Line / 1- 5 L Tin CanUS$ 3,900 - 30,000MOQ: 1 Set -
Square Can Locking Seaming Machine LineUS$ 3,000 - 4,000MOQ: 1 Set
-
Locking Seaming Machine for Round/Square Candy Can Prodcution LineUS$ 3,000 - 4,000MOQ: 1 Set
-
Locking Seaming Machine for Round/Square Can Making Machine LineUS$ 3,000 - 4,000MOQ: 1 Set
-
Semi-automatic Rectangular /Square Biscuit Can Making Machine LineUS$ 3,000 - 4,000MOQ: 1 Set
1.BT1B5 Gang slitter
2.Rolling forming machine
| Capacity | 40 cans/min |
| Can Height | Max.420mm |
| Power | 0.25kw |
| Weight | 50kg |
| Dimension | 700mm×400mm×840mm |
3.FH18-52 semi-Automatic can body welding machine
Linear rate of welding | 6-18m/min |
Production capability | 20~80Cans/min |
Applicable can diameter | ø65~ø286mm |
Applicable can height | 70~420mm |
Applicable material | Tinplate steel-based Temper:T2.5-DR8 |
Applicable material thickness | 0.18~0.42mm |
Seam welding landing | 0.4mm 0.6mm 0.8mm 1.2mm |
Seam point distance | 0.5~0.8mm |
Applicable copper wire diameter | ø 1.38mm ø 1.5mm |

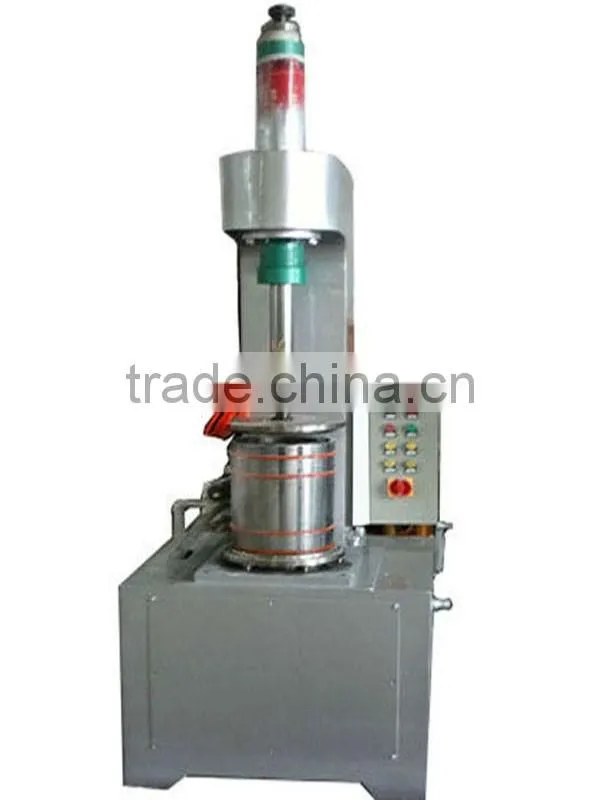

4.GT3B18Y hydraulic beading and flanging machine
diameter | 220-300mm |
height | ≤370mm |
capacity | 15 cans/min |
power | 5.5kw |
net weight | 1080kgs |
dimension | 1500*900*2300mm |

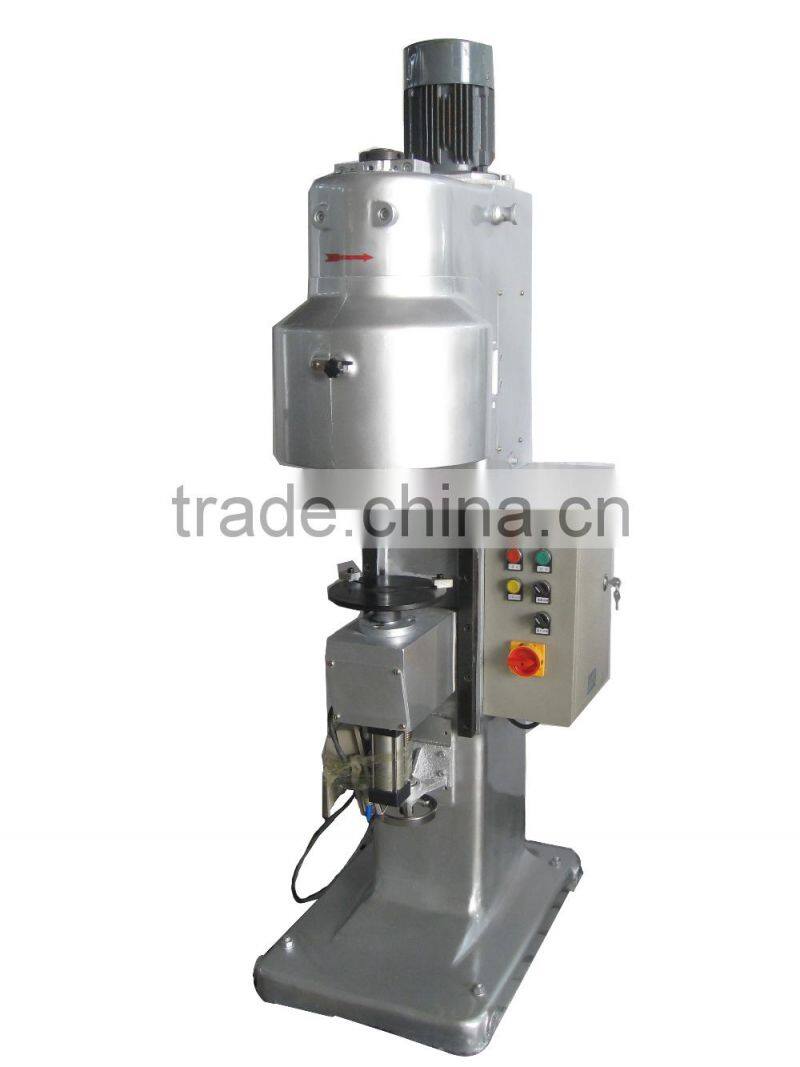

5.GT4A19YQ Round can pneumatic seamer
Capacity | 20-30cans/min |
Diameter | 50-300mm |
Height | 50-400mm |
Tinplate Thickness | ≤0.4mm |
Air pressure | 0.3-0.7Mpa |
Motor type | Y100L-4 |
This product's deliver time is 45 days.
Our products' warranty is 1 year!
If there is any quality problem with our machine during the warranty period, we will offer free parts for customer for fix the machine.
If you want to know more information about this machine,please contact us!
