Home > Products > Drying equipments > New Designed wood pellet rotary dryer, Rotary Dryer Machine ,Rotary Drum Dryer with Competitive Price
New Designed wood pellet rotary dryer, Rotary Dryer Machine ,Rotary Drum Dryer with Competitive Price
- 50 Set / Sets per Month
- Qingdao Shanghai Tianjin Lianyungang
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Drum Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Hennan Meshen | Model Number: | kJ | Voltage: | 220V/380V |
Power(W): | 3-75KW | Dimension(L*W*H): | According to different types | Weight: | According to different types |
Certification: | CE and ISO | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
New Designed wood pellet rotary dryer, Rotary Dryer Machine ,Rotary Drum Dryer with Competitive Price

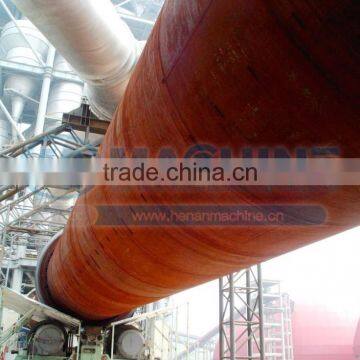

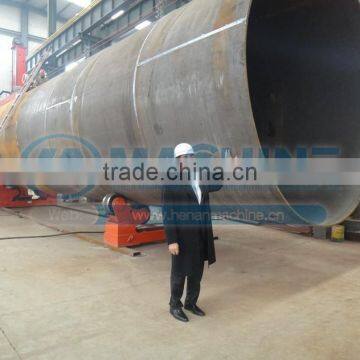

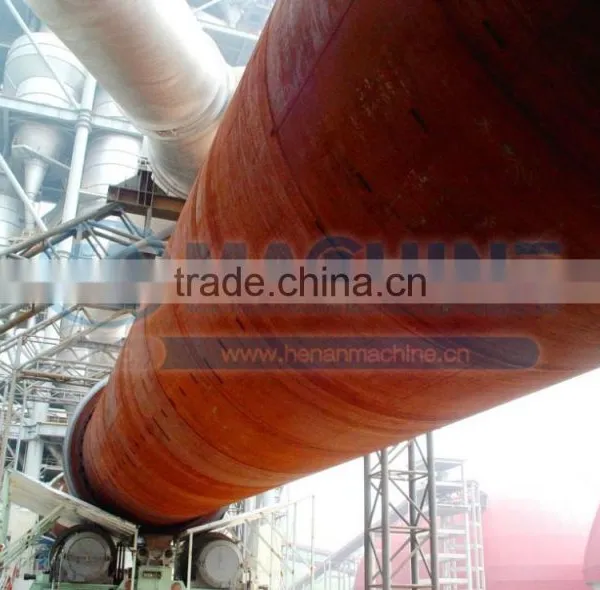

Product description of sawdust rotary drum dryer
The rotary dryer is composed of stove, main rotary body, which reduces the moisture from 60% to 10%. The moisture evaporating capacity of our rotary drum dryer can reach to (250kg per hour to 8000kg) per hour. Different density materials, the final product are not the same; also for different moisture of raw materials, which could get the different final capacity.
Working Principle of Rotary drum dryer
Features and Benefits of rotary drum dryer:
1. Reasonable design of raising board and angle ensure the material well-distributed and dry with less times, it has reliable operation and high energy utilization ratio, simple maintenance.
2. Adopt an adjustable center tug structure, the good cooperation of the tug and the rolling ring reduce the attrition and energy consumption.
3. The special structure of the dam-wheel decrease the horizontal thrust, when the machine working in inclination station, it has strong ability of anti-overloading, steady operation and high reliability.
4.High temperature resistance, it can use the high temperature to dry the material quickly,
Detailed parameters of all the models for your checking:
Model (mm) | Obliquity(%) | Rotation speed (r/min) | Feeding temperature (degree) | Power (kw) | Capacity(t/h) | Weight (t) |
600x6000 | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 2.9 |
800x8000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
800x10000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
1000x10000 | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
1200x10000 | 3-5 | 3-8 | <=700 | 7.5 | 1.8-5 | 14.5 |
1200x12000 | 3-5 | 3-8 | <=700 | 11 | 2-6 | 14.8 |
1500x12000 | 3-5 | 2-6 | <=800 | 15 | 3.5-9 | 17.8 |
1800x12000 | 3-5 | 2-6 | <=800 | 18 | 5-12 | 25 |
2200x12000 | 3-5 | 1.5-6 | <=800 | 18.5 | 6-15 | 33 |
2200x18000 | 3-5 | 1.5-6 | <=800 | 22 | 10-18 | 53.8 |
2200x20000 | 3-5 | 1.5-6 | <=800 | 30 | 12-20 | 56 |
2400x20000 | 3-5 | 1.5-5 | <=800 | 37 | 18-30 | 60 |
3000x20000 | 3-5 | 1.5-5 | <=800 | 55 | 25-35 | 78 |
3000x25000 | 3-5 | 1.5-5 | <=800 | 75 | 32-40 | 104.9 |
Payment,Packing and Delivery
Payment :30% TT in advance, 70%6TT balance pay off before delivery.
Packing: The machine and wear parts will protected by plywooden box or as customers’ will.
Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days, above 5 sets usually negotiate.
Shipping company: MSK/MSC/APL/EMC/WANHAL/KLINE and We will remind you before boat arrive and offer you all the customs clearance documents on time.
Why did you choose us?
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
Thanks for your interest in our machines and please contact us freely if you have any questions or requirements by the following contact information. Your visit of our factory to test the machines you like will be warmly welcomed. Hope to have the honor to cooperate with you in the bright future.
