2015 High quality and competetive price BBQ Charcoal briquette machine
Brief introduction of BBQ Charcoal Briquette Machine
BBQ charcoal briquette machine is applied to make high density briquette from charcoal powder. It is used in coal, metallurgical powder, powder cold-pressing ball, refractory materials. The finished product can be widely used in many fields, such as BBQ, home cooking, steel industry, warming and so on. In the production of BBQ Charcoal ball making machine, there are different shapes, such as round, square, flower shapes and fan-shaped etc. What’s more, we can manufactures BBQ Charcoal making machine as your requirement.
Characteristics of BBQ Charcoal Briquette Machine
1. The BBQ Charcoal making machine high productivity, easy operation, easy maintenance and high cost performance
2. Each BBQ Charcoal making machine can be equipped with various molds for different needs
3. Energy saving, clean, no exhaust smoke generated waste
4. High density of products, easy for storage, and with no smoke, no smell, environmental protection.
5. Widely used, never saturated the market
6. Our engineer available to service overseas
Technical parameters of BBQ Charcoal Briquette Machine
Model |
MA140 |
MA160 |
MA180 |
MA220 |
MA260 |
Capacity(Punching times per Minute) |
45-50 |
45-50 |
45-50 |
20-24 |
20-24 |
Power(kw) |
7.5 kw; 4pole |
7.5 kw; 4pole |
11 kw; 4pole |
15 kw; 4pole |
15 kw; 4pole |
Presssure(tons) |
20-30 tons |
20-35 tons |
25-35 tons |
30-40 tons |
35-45 tons |
Mode of Operation |
Punching press |
Punching press |
Punching press |
Punching press |
Punching press |
Diameter Of Mould(mm) |
140 mm |
160 mm |
180 mm |
220 mm |
260 mm |
Diameter of Final Products(mm) |
Round:below140mm Square:100*100mm |
Round:below160mm Square:120*120mm |
Round:below180mm Square:150*150mm |
Round:below220mm Square:200*200mm |
Round:below260mm Square:220*220mm |
Height of Final Products(mm) |
30-90 MM; Can be adjusted |
30-90 MM; Can be adjusted |
30-90 MM; Can be adjusted |
30-90 MM; Can be adjusted |
30-90 MM; Can be adjusted |
Shape of final briquettes |
Round/square/hexagon/other shape with holes or without holes by customizing the related molds. |
||||
Materials Conditions |
Size: Less Than 5 MM ; Moisture: less Than 10% |
||||

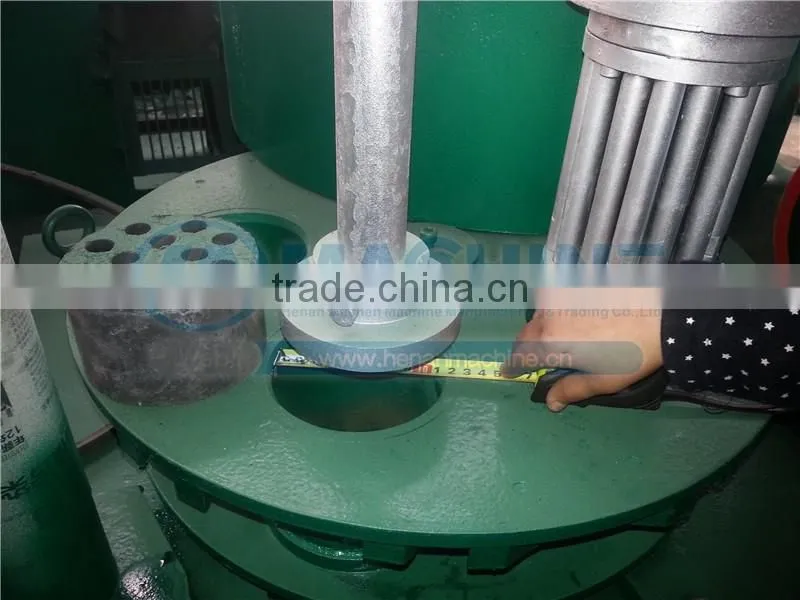

Briquettes Samples
This machine has various shapes, such as honeycomb, square, flower-shape etc.
1 the final product with high calorific value
2 smokeless when the briquettes burning, and have long burning time
3 it could produce different shape and different size briquette,
4 final product with high density, not easy to broke
5 the shape of final briquettes can be square, round , hexagonal, cylindrical, etc

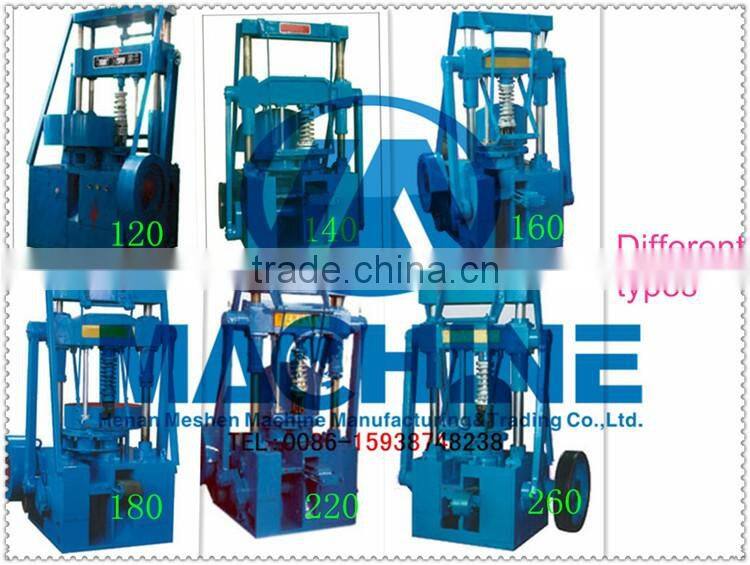

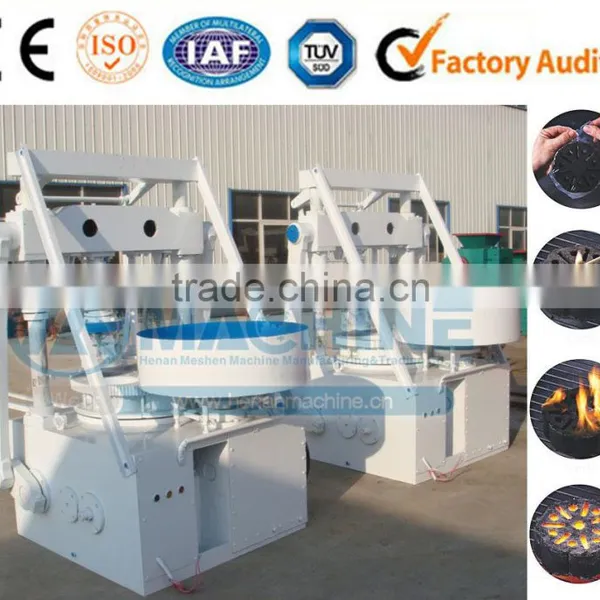

We can see the different types machine

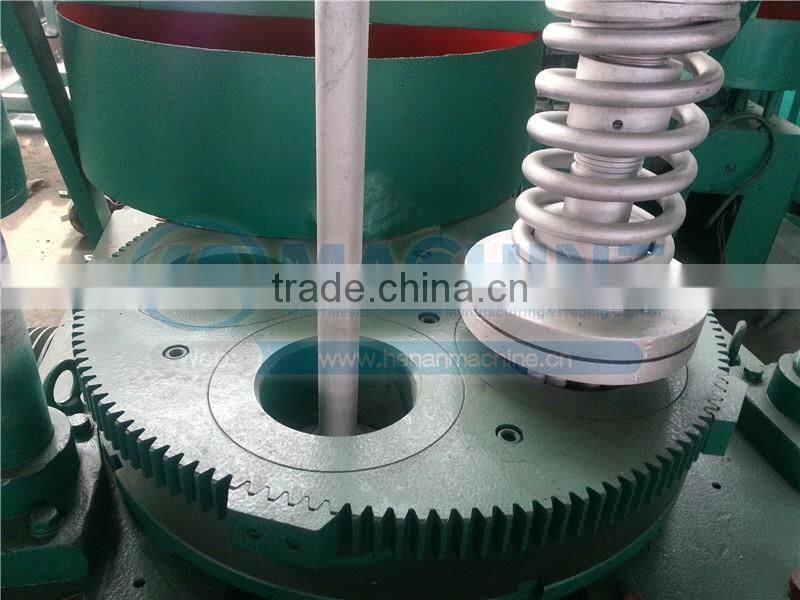

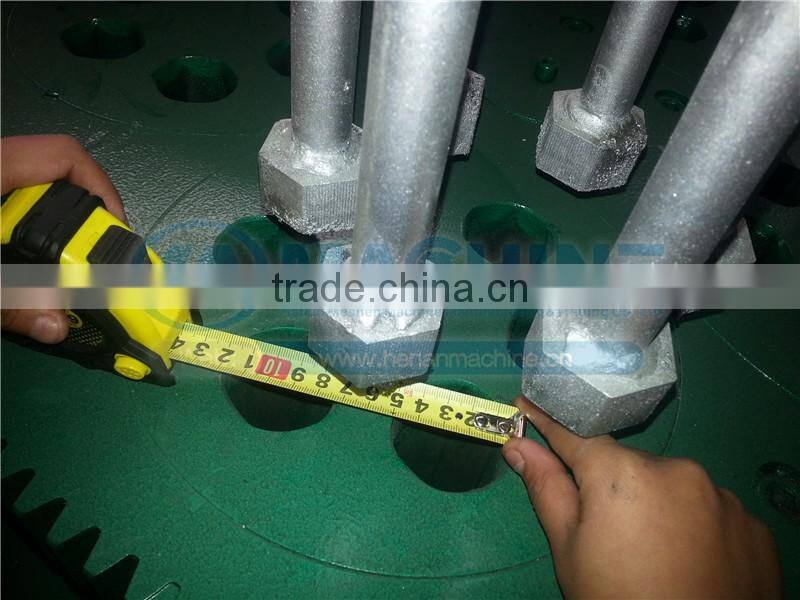

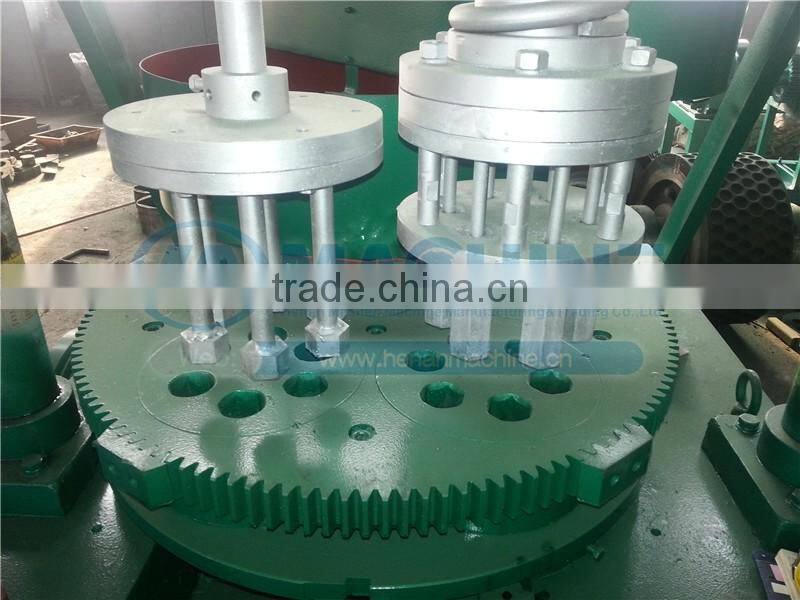

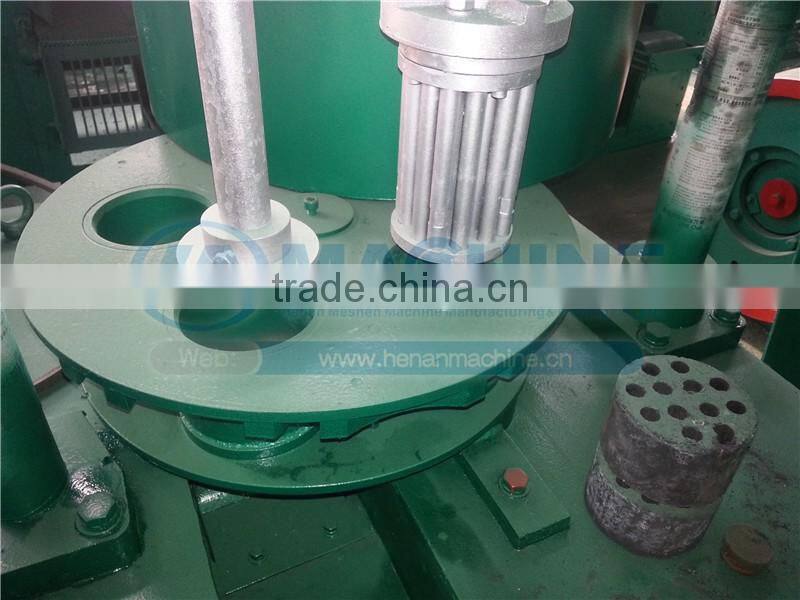

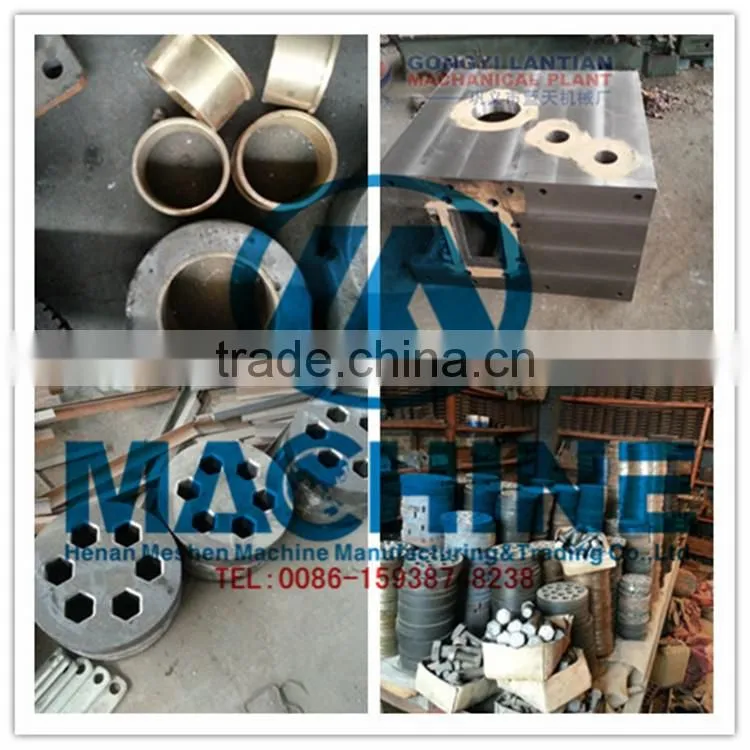

The different molds

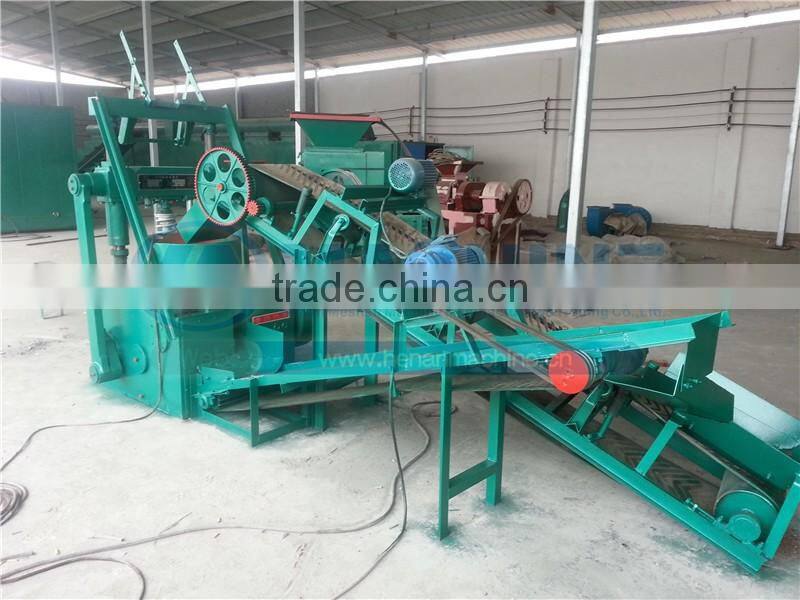

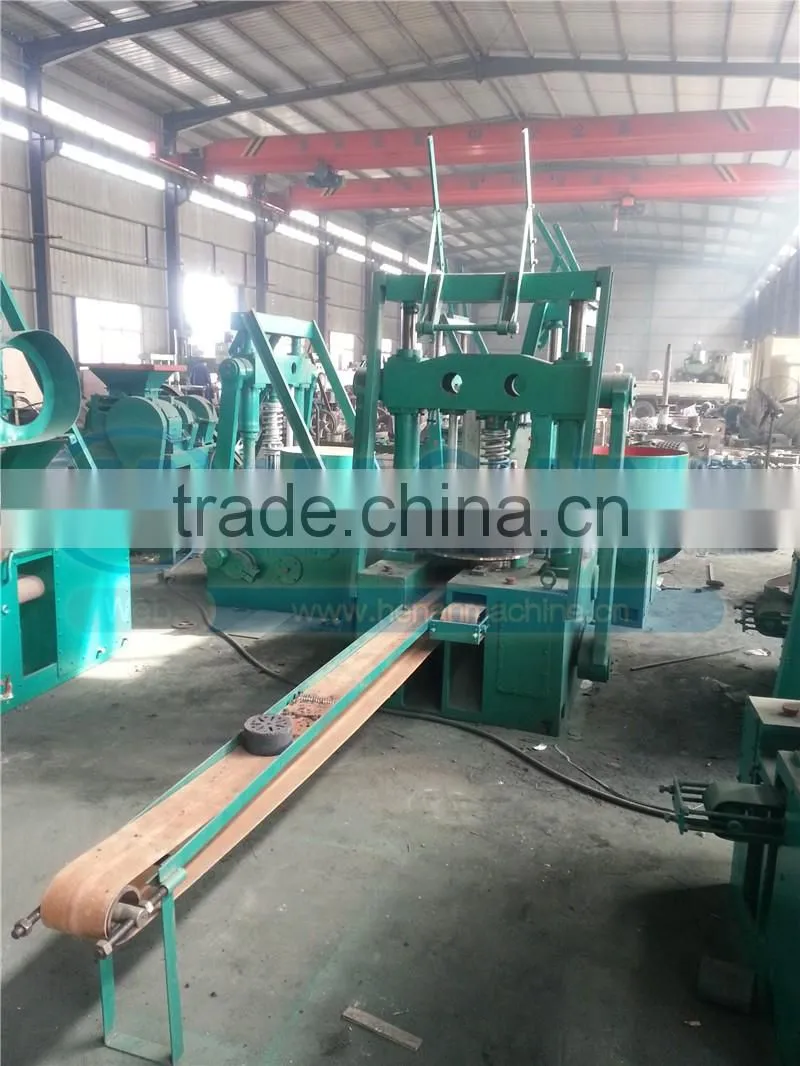

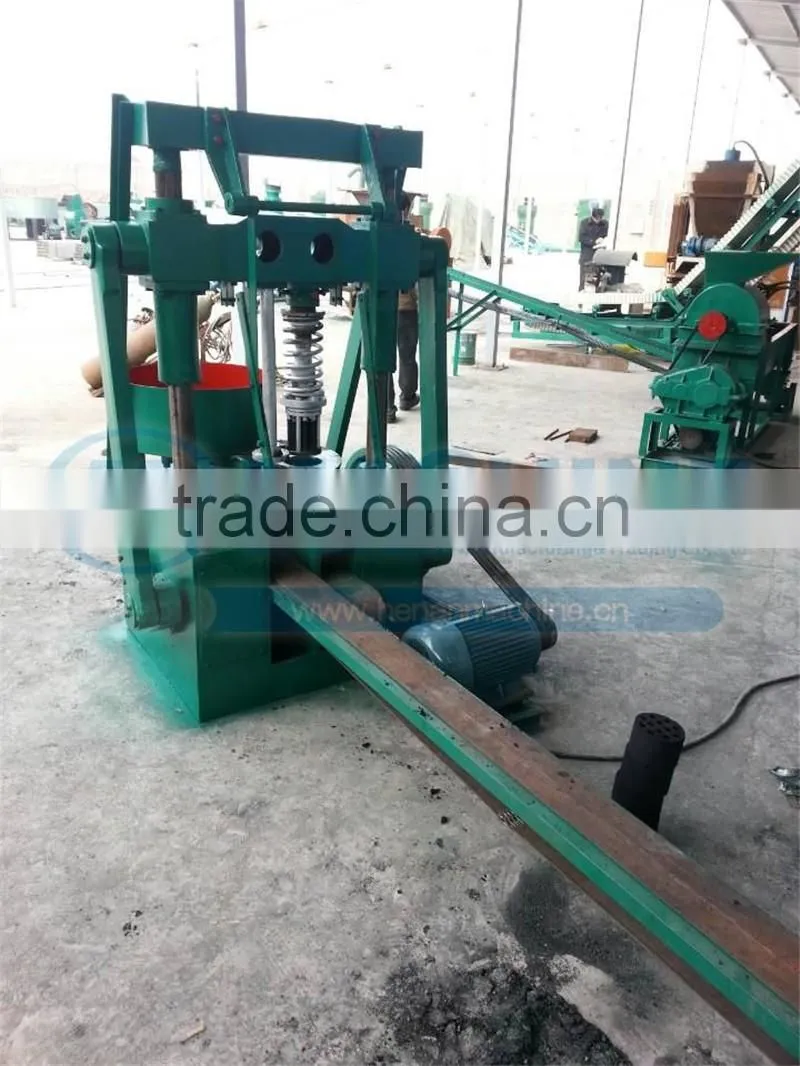

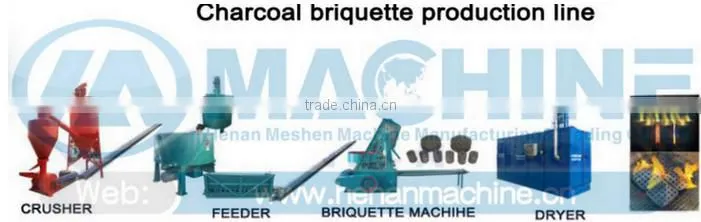

Production line of BBQ Charcoal Briquette Machine
Other related machine such as feeder, grinder, crusher, conveyor and dryer are also available in our factory, it means we can offer a whole product line. In addition, we can help you with the installation.
Raw material-----Crushing -----Mixing-----Feeding-----Briquetting----Final briquette
Payment,Packing and Delivery
- 1. Payment :30% TT in advance, 70%6TT balance pay off before delivery.
- 2. Packing: The machine and wear parts will protected by plywooden box or as customers’ will.
- 3. Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days, above 5 sets usually negotiate.
- 4. Shipping company: MSK/MSC/APL/EMC/WANHAL/KLINE and We will remind you before boat arrive and offer you all the customs clearance documents on time.
Customers visit our factory
Common questions
A: Can we design the final shape we require?
--- Yes, our machine can produce different shapes by changing different molds.
B: What is moisture of feeding materials?
--- Coal powder: 15%-18%
Charcoal powder: 18%-20%
C: How many binders should we add?
--- It depends on your material, normally, 2%-3% is OK.
We are the manufacturer with over 30 years working experience.
Thanks for your interest in our machines, If you didn't get the suitable machine in this page, please email me your detailed requirement. Hope to have have the honor to cooperate with you in the bright future.
